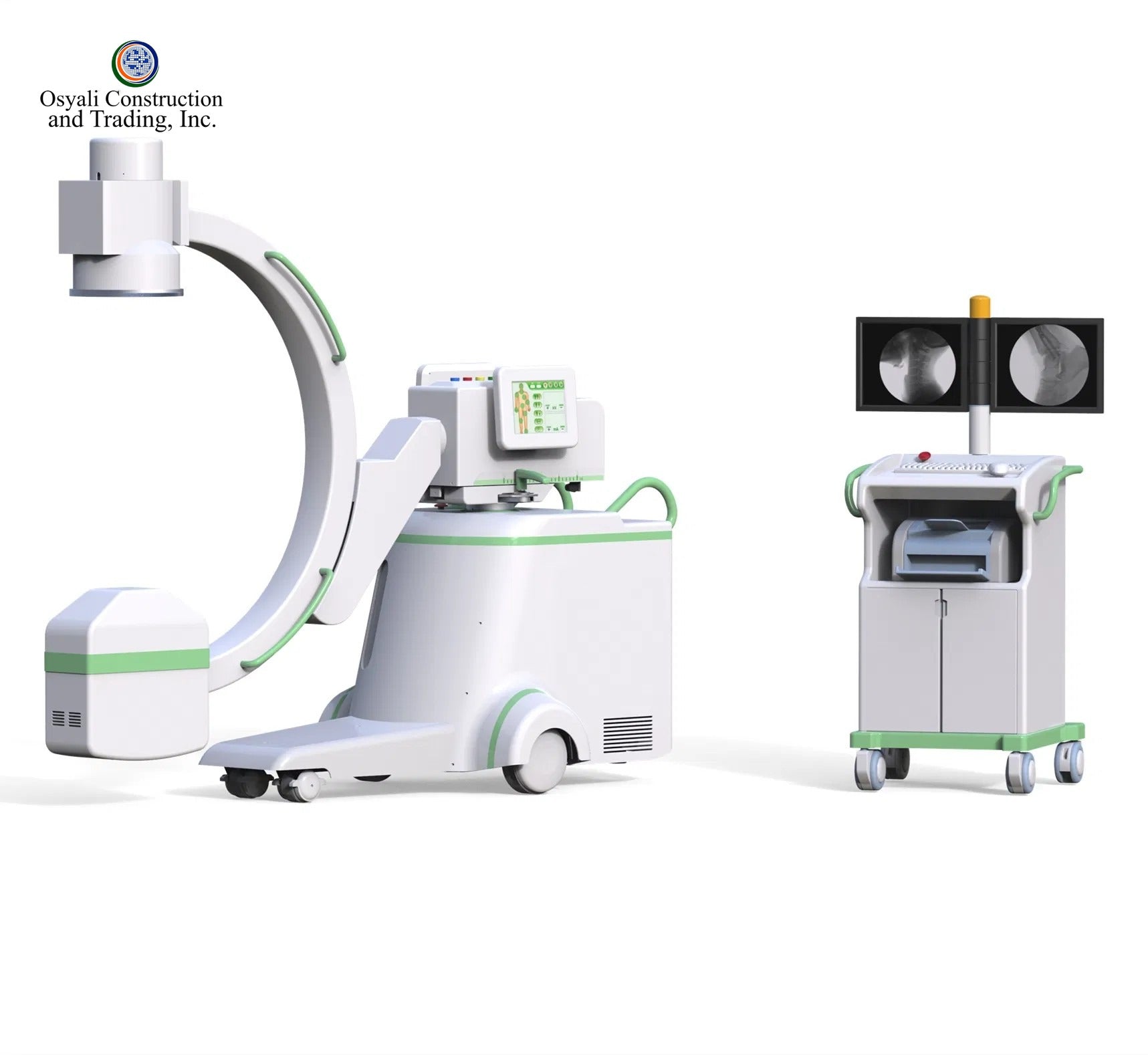

Perlove PLX7100A C-Arm system with Dynamic detector

The Perlove PLX7100A is a high-frequency mobile digital C-arm X-ray imaging system built around a large-size dynamic flat panel detector (FPD). It is a five-axis, motorized mobile unit designed for intraoperative fluoroscopy and digital radiography in hospitals and surgical centers across the Philippines. Because the gantry is fully mobile, it can be moved between operating rooms and used without ground rails, ceiling suspension, or room modification.

The system is intended for use by radiologists, surgeons, and imaging technologists in orthopedic, trauma, spinal, general, urologic, and pain procedures, as well as in interventional and gastroenterology workflows (including peripheral vascular, non-vascular, and ERCP-type procedures). Its wide-field cesium-iodide amorphous-silicon detector captures high-definition, distortion-free images of bone and soft tissue and supports real-time digital image processing during a procedure.

Key features and specifications

• Dynamic flat panel detector: THALES Pixium Surgical 2630, cesium-iodide (CsI) amorphous-silicon; effective imaging area 28.7 cm x 26.5 cm; up to 1560 x 1440 pixels; 0.184 mm pixel pitch; limiting spatial resolution 2.7 LP/mm; 16-bit grayscale.
• High-frequency high-voltage generator: 25 kW output, 60 kHz inverter frequency.
• X-ray tube: rotating-anode, dual focal spots 0.6 / 1.3 mm; rotating-anode heat capacity 80 kJ; assembly heat capacity 1000 kJ.
• Fluoroscopy modes: continuous 0.3-5 mA, enhanced 0.3-10 mA, and pulsed 0.3-100 mA; pulse rate 0.1-12.5 frames/second; tube voltage 40-125 kV across modes.
• Radiography: 40-125 kV, 70-200 mA, 0.1-320 mAs.
• Five-axis motorized C-arm: orbital rotation >=120 deg along the arc, +/-180 deg rotation about the horizontal axis, +/-15 deg left-right swing, 200 mm horizontal travel, 400 mm vertical travel.
• Source-to-image distance (SID): adjustable 955-1155 mm; C-arm opening 744-944 mm; C-arm depth 826 mm.
• Display: dual 21-inch 2-megapixel grayscale medical LCD monitors on a mobile workstation.
• Imaging software: real-time zoom, rotation, mirroring, window/level, histogram equalization, dynamic Gamma correction, noise reduction, and sharpening; single-frame and sequence storage; DICOM-compliant film printing and reporting.
• Dose management: digital pulsed-dose control for high-mA pulsed fluoroscopy with multi-frequency regulation.
• Power: 220 V +/- 22 V, 50/60 Hz.

What is included

• Five-axis motorized mobile C-arm main frame.
• 25 kW / 60 kHz high-frequency high-voltage X-ray generator and inverter power supply (up to 125 kV).
• THALES Pixium Surgical 2630 flat panel detector.
• Two 21-inch 2 MP grayscale medical LCD displays on a mobile workstation.
• Digital image processing system and X-ray image transmission/processing software.
• Anti-scatter (dense-grain) grid, motorized adjustable beam limiter (collimator).
• Two graphical touch screens, hand controllers for technique and mechanical movement, and dual exposure foot switches.

Installation and service in the Philippines

Medisense, operated by Osyali Construction & Trading, Inc., is an authorized Philippine distributor of Perlove medical imaging equipment. Pricing is quoted in Philippine Pesos (PHP). Delivery, installation, application training, calibration, preventive maintenance, repair, and spare-parts support are available locally. Contact us for a formal quotation and availability. All deployments are supported in accordance with applicable Philippine FDA registration requirements for medical X-ray devices.

Dimensions

No overall machine envelope (Width x Depth x Height) or total system weight is published by the manufacturer. Sourced structural geometry: C-arm opening (free space) 744-944 mm; C-arm depth 826 mm; source-to-image distance (SID) adjustable 955-1155 mm; vertical travel 400 mm; horizontal travel 200 mm; detector effective area 28.7 cm x 26.5 cm.

Supplied by Osyali Construction & Trading, Inc., an authorized Perlove distributor in the Philippines. Installation, training, and after-sales service available.
