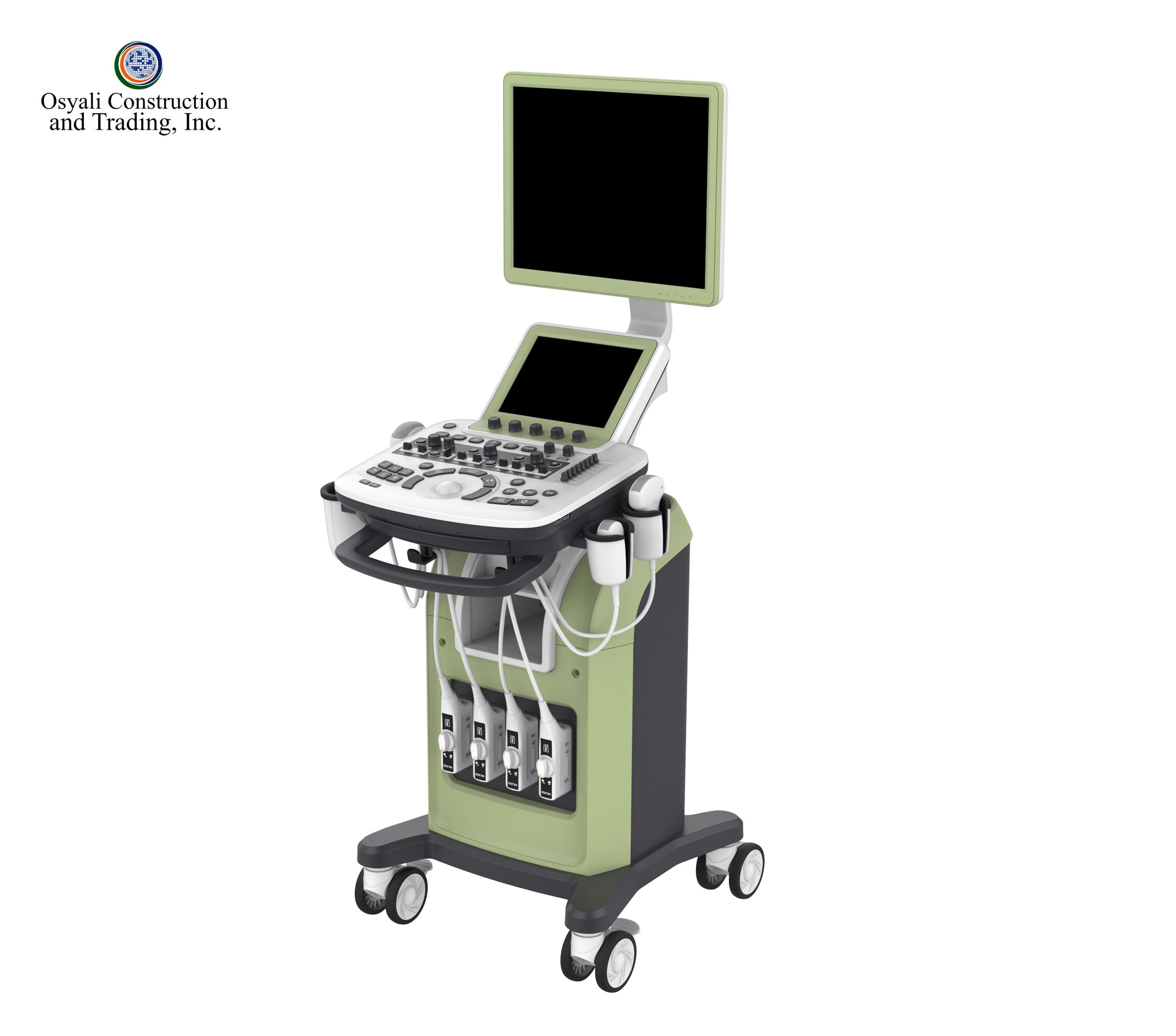

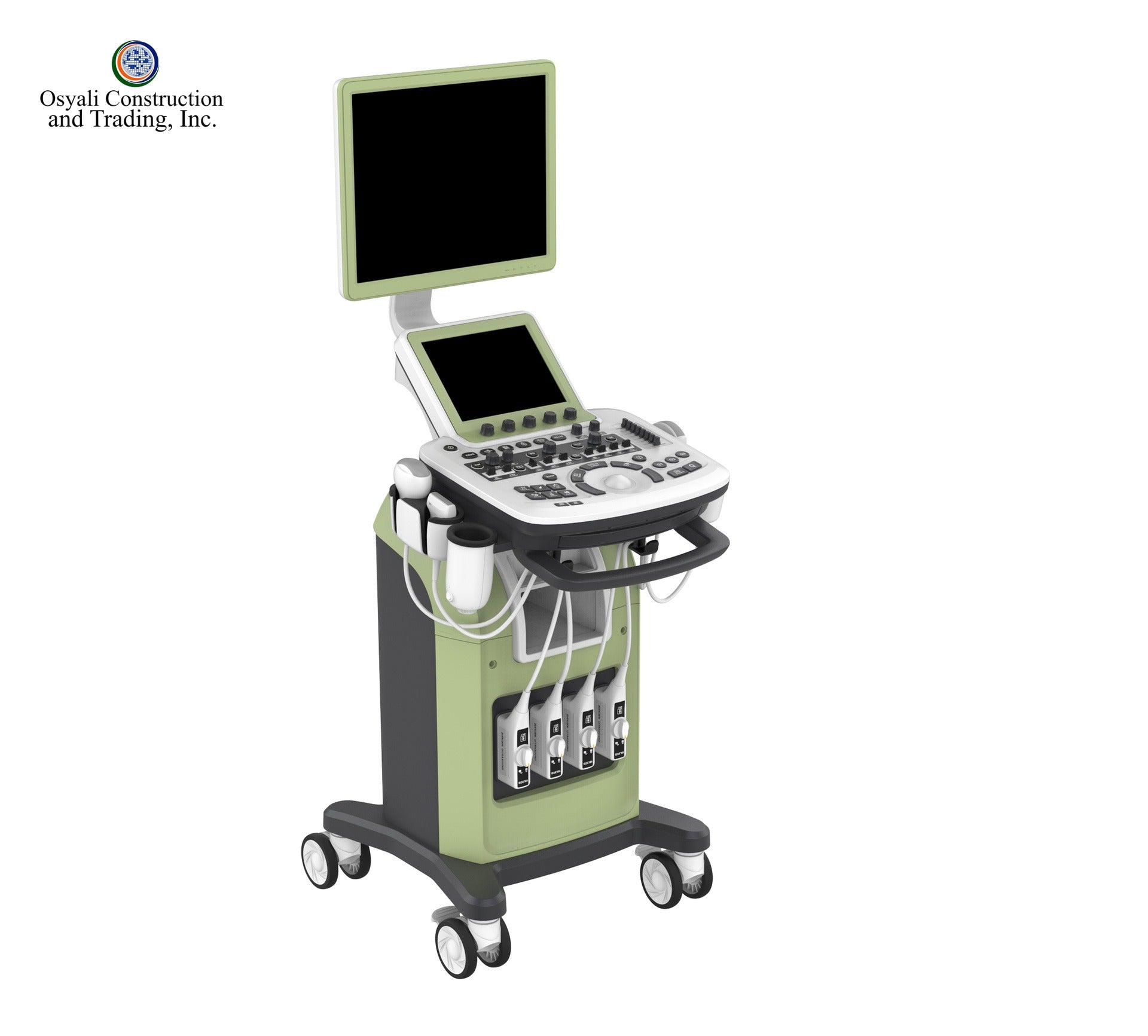

Medsinglong MSLCU46 Trolley ultrasound with camera, transvaginal, linear probe | Trolley ultrasound

The Medsinglong MSLCU46 is a trolley-mounted (cart) digital color Doppler ultrasound system configured with four probe connectors, allowing up to four transducers to be docked and switched without unplugging. It is built for hospitals, diagnostic imaging centers, OB-GYN and cardiology clinics, and multi-specialty practices in the Philippines that need a full-feature, mobile ultrasound platform for general and shared-service use.

The system pairs a 15-inch high-resolution color LCD with a 10.4-inch operator touch screen, mounted on a height-appropriate mobile cart with locking casters, an integrated control console, and four removable probe holders with cable hooks. It runs on a Linux-based platform with a 500 GB hard drive for on-board image and patient data storage, and supports a wide range of two-dimensional, Doppler, and real-time 3D/4D imaging modes.

Key features and specifications

• Displays: 15" high-resolution color LCD (1024×768) main monitor with left/right rotation and up/down tilt, plus a 10.4" touch-screen control panel.
• Probe ports: 4 activated transducer connectors with 4 removable holders; compatible probe types include convex, linear array, transvaginal, micro-convex, phased array, and 4D volume.
• Imaging modes: B, 2B/4B, M, B/M, CDFI (color Doppler flow), PDI (power Doppler), CM, PW, CW, anatomical M-mode, panoramic and color panoramic, trapezoidal (linear probe), extended field of view (EFOV), TDI, and real-time 3D/4D.
• Imaging technologies: Tissue Harmonic Imaging (THI), Speckle Reduction Imaging (SRI), Spatial Compound Imaging (SCI), Frequency Compound Imaging (FCI), and HR flow.
• Clinical application presets: abdomen, obstetrics, gynecology, urology, cardiology, pediatric, small parts, blood vessel, superficial, orthopedic, MSK, and nerve.
• Storage and platform: Linux operating system with 500 GB hard drive.
• Power supply: AC 100–240 V, 50/60 Hz, 320 VA.
• Mobility: wheeled trolley chassis with caster wheels for room-to-room transport.
• Operating environment: 5°C to 40°C, 25–85% relative humidity.

What's included, installation and service

The standard configuration ships as a complete cart-based system: main unit with 15" monitor and 10.4" touch screen, four-port probe panel, and the selected set of four transducers for this listing. Power cable and operator documentation are supplied with the unit.

As an authorized distributor, Medisense (Osyali Construction & Trading, Inc.) provides delivery and on-site installation across the Philippines, plus operator orientation, after-sales technical support, and engineering services including preventive maintenance, calibration, repair, and parts. Pricing is quoted in Philippine Peso (PHP); contact us for current pricing, available probe configurations, and a formal quotation.

This medical device is intended for use by qualified, trained healthcare professionals.

Dimensions

Approx. 565 mm (W) x 845 mm (D) x 1455 mm (H); net weight approx. 70 kg

Supplied by Osyali Construction & Trading, Inc., an authorized Medsinglong distributor in the Philippines. Installation, training, and after-sales service available.
