Lepu ADC ELISA 400

The Lepu ADC ELISA 400 is a fully automated, benchtop ELISA (enzyme-linked immunosorbent assay) workstation from Lepu Medical, configured around four microplate positions for higher-throughput immunoassay processing. It consolidates the complete microplate ELISA workflow — sample and reagent pipetting, plate washing, incubation, and photometric reading — into one integrated platform. It is intended for clinical laboratories, hospital in-vitro diagnostic (IVD) departments, blood banks, and reference and research laboratories in the Philippines that run microplate-based immunoassays and want to reduce manual handling and standardize their ELISA process.

Key features and specifications

• Fully automated walk-away workflow: integrates pipetting, washing, incubation, and reading on a single modular platform.
• Four-plate configuration: the "400" variant in Lepu's ADC ELISA family (200 / 300 / 400 / 600 / 1100), scaled by microplate capacity for batch processing of 96-well plates.
• Air-displacement pipetting with single-use disposable tips and real-time tip monitoring, which helps avoid carry-over between samples.
• Integrated microplate washer: 16-channel washing manifold; programmable wash volume in the 50–1000 µL per-well range; residual volume specified at ≤1 µL per well.
• Incubation: temperature-controlled positions adjustable from room temperature to 60 °C in 0.1 °C steps, with accuracy of ±0.5 °C at 37 °C.
• Photometric detection: 8-channel reader using silicon photodiodes with a tungsten-halogen light source; measurement wavelength range 340–750 nm; standard filters at 405, 450, 492, and 630 nm plus spare filter positions.
• Photometric performance: accuracy ±0.02 A (0.0–1.0 A) and ±0.03 A (1.0–2.0 A); precision CV <1.0% (0–3.0 A at 450 nm).
• Sample and reagent handling: multiple onboard sample tube and reagent-bottle positions; optional barcode scanning for sample and reagent identification.

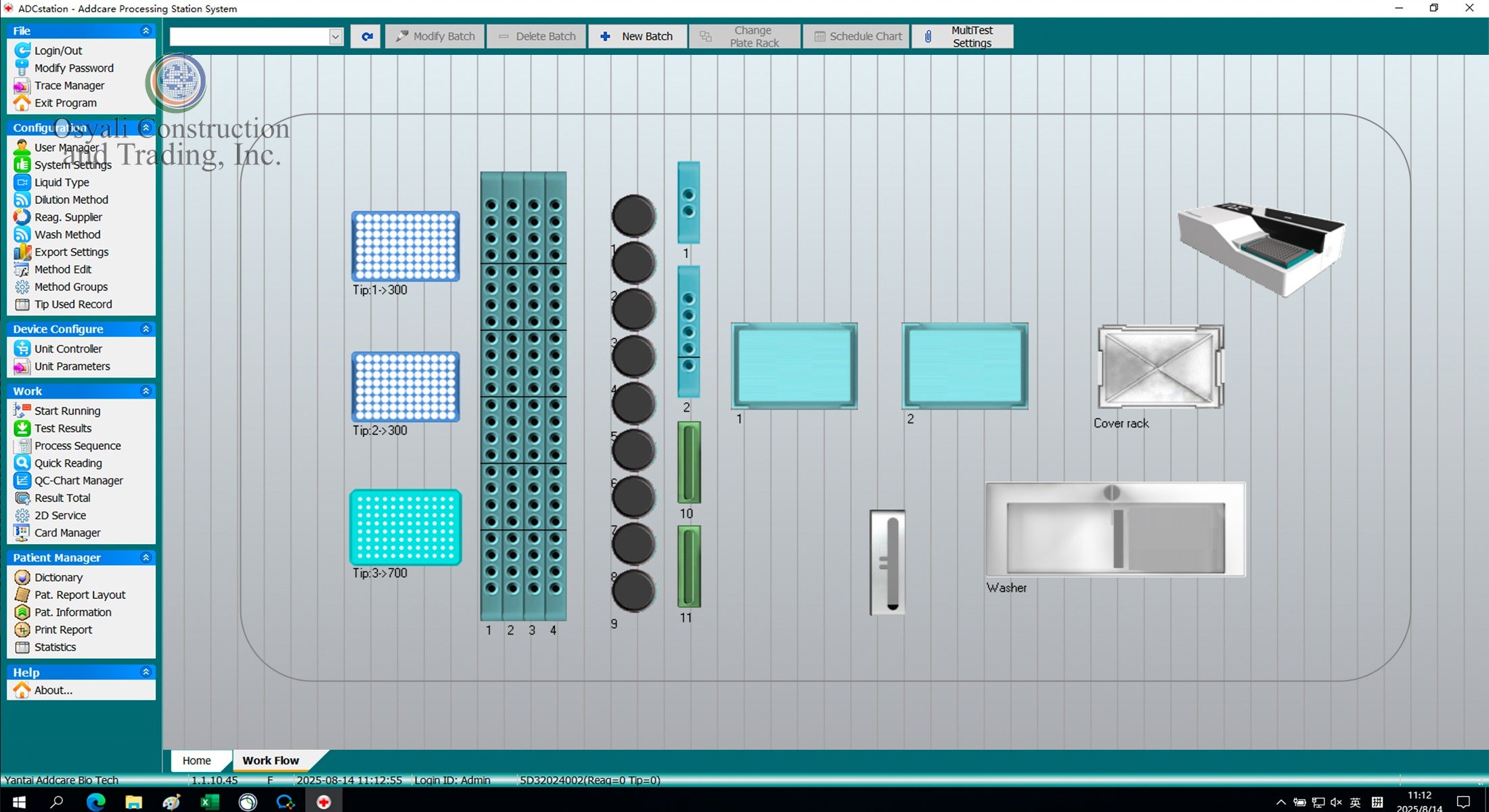

• Open and closed assay options: supports both open-channel and dedicated assay protocols, with intuitive control software for protocol setup and result management.
• Quality marks: manufacturer states CE and FDA certification for the ADC ELISA workstation line.

What's included, installation, and service

Supplied as a complete set: the benchtop ELISA workstation with its integrated pipetting, washing, incubation, and reading modules, together with a computer for protocol programming and result handling, plus an initial supply of disposable pipette tips (300 µL and 800 µL sizes). As your authorized distributor, Medisense (Osyali Construction & Trading, Inc.) provides delivery, installation, and operator orientation, together with after-sales engineering support — preventive maintenance, calibration, repair, and spare parts — for laboratories across the Philippines. Final configuration, accessories, and assay compatibility should be confirmed against the manufacturer's current datasheet for your specific application. Please contact Medisense for a configuration quote.

Dimensions

Not published by the manufacturer for the ADC ELISA 400 specifically. For reference, the single-plate ADC ELISA190 on the same platform is 1000 x 650 x 800 mm (W x D x H), 86 kg; the four-plate ELISA 400 footprint differs and should be confirmed on the manufacturer datasheet or with Medisense before finalizing lab space planning.

Supplied by Osyali Construction & Trading, Inc., an authorized Lepu distributor in the Philippines. Installation, training, and after-sales service available.
