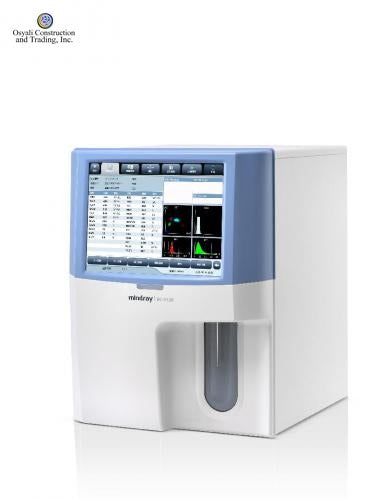

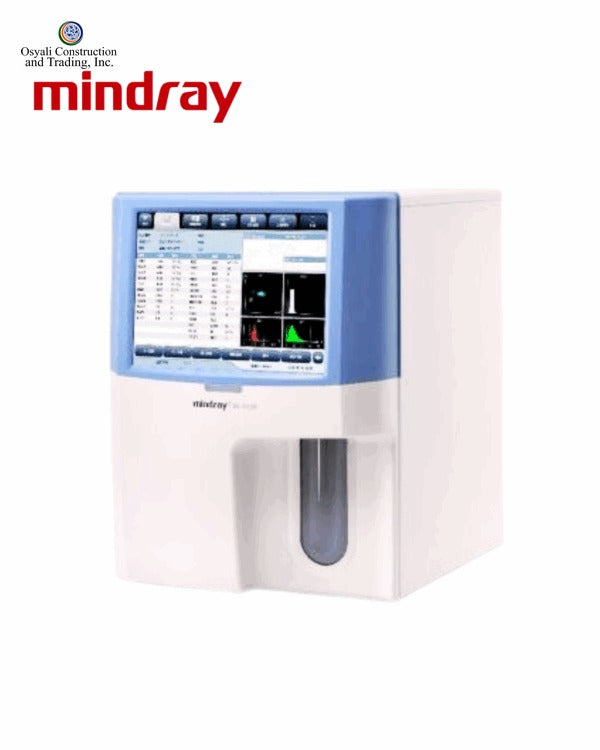

Mindray BC-5120 Auto Hematology Analyzer (5-Part Diff)
Official distributor · Mindray
Mindray BC-5120 Auto Hematology Analyzer (5-Part Diff)
- Full 5-part CBC differential with up to 35 reportable parameters from one bench-top analyzer
- Up to 60 samples per hour keeps daily walk-in and routine workloads moving without backlog
- Low sample volume across whole-blood, capillary, and pre-diluted modes suits adult and pediatric patients
- 10.4-inch touchscreen plus 3 histograms and scattergrams make results fast to read and review
- On-board storage for 40,000 results with bi-directional LIS/HIS connectivity supports a paper-light lab workflow
Request a Quote
Official pricing · warranty · nationwide installation
You get a partner, not just a machine
More Mindray equipment
Specifications & details+
The Mindray BC-5120 Auto Hematology Analyzer is a compact, fully automated 5-part differential blood cell counter built for small to medium-volume laboratories, clinics, hospitals, and diagnostic centers in the Philippines. It performs a complete blood count (CBC) with a 5-part white blood cell differential, reporting up to 35 parameters per sample so laboratory professionals can review red cell, white cell, and platelet results from a single bench-top instrument.
Designed for routine daily workloads, the BC-5120 combines flow cytometry with laser scatter and a chemical dye method for WBC differentiation, the electrical impedance method for RBC and platelet counting, and a cyanide-free reagent for hemoglobin measurement. A large 10.4-inch color touchscreen, on-board data storage, and LIS/HIS connectivity support an efficient, paper-light laboratory workflow.
Key features
- 5-part differential CBC reporting up to 35 parameters, including neutrophils, lymphocytes, monocytes, eosinophils, and basophils (percentage and absolute counts).
- Measurement methods: flow cytometry (FCM) plus laser scatter and chemical dye for the WBC differential; electrical impedance for RBC and PLT counting; cyanide-free reagent for hemoglobin.
- Throughput of up to 60 samples per hour to support routine daily workloads.
- Low sample volume from whole-blood, capillary, and pre-diluted modes, suitable for adult and pediatric samples.
- Graphical reporting with 3 histograms (WBC, RBC, PLT) and scattergrams for visual review of cell populations.
- 10.4-inch TFT color touchscreen for on-screen operation and result review.
- On-board data storage of up to 40,000 results with graphics, and bi-directional LIS/HIS connectivity via USB and LAN.
- Compact bench-top footprint that fits into limited laboratory bench space.
What is included
- Mindray BC-5120 analyzer unit with 10.4-inch touchscreen.

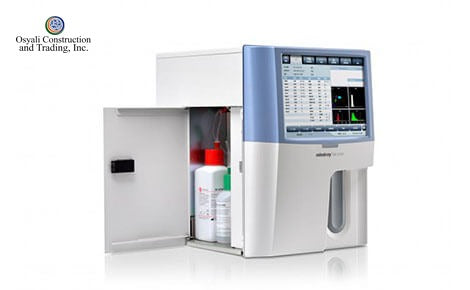

- Starter Mindray reagent set: diluent, DIFF lyse, LH lyse, and probe cleanser (consumables ordered separately for ongoing use).
- Standard power cord and accessory/starter kit as supplied by the manufacturer.
- User documentation.
Installation and service
As an authorized Philippine distributor, Medisense (Osyali Construction & Trading, Inc.) provides delivery, on-site installation and commissioning, operator orientation, and after-sales engineering support including preventive maintenance, calibration, repair, and supply of genuine Mindray reagents and spare parts. Contact us for current pricing in Philippine Peso (PHP), reagent packages, and service options for your laboratory.
Dimensions
320 mm (W) x 400 mm (D) x 410 mm (H); weight approx. 24 kg
Supplied by Osyali Construction & Trading, Inc., an authorized Mindray distributor in the Philippines. Installation, training, and after-sales service available.
