Lepu ADC CH196

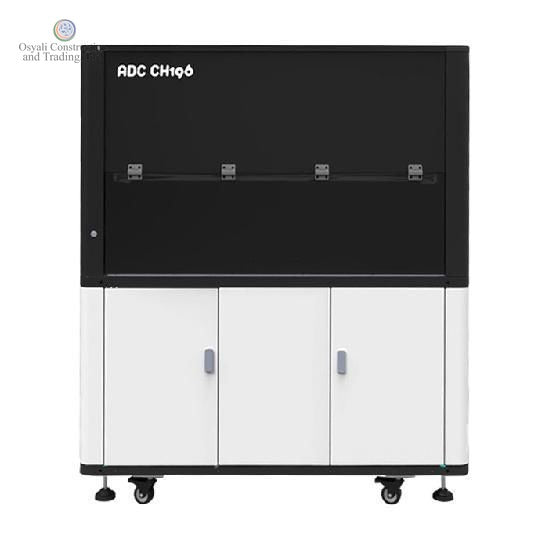

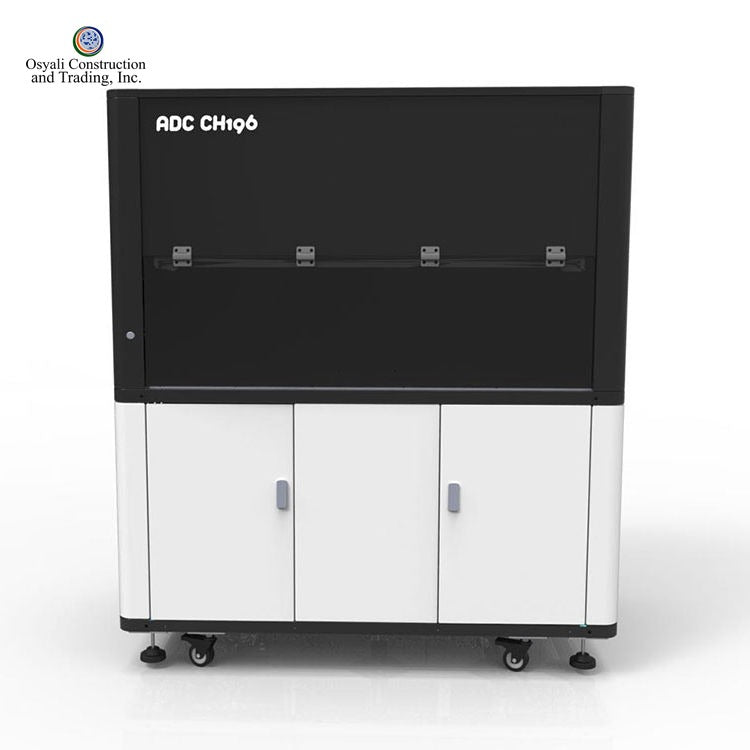

The Lepu ADC CH196 Fully Automated Nucleic Acid Extractor is a floor-standing, walk-away laboratory system for automated DNA/RNA sample preparation. Built around the magnetic-bead extraction method, it carries a single run from raw sample through lysis, binding, washing and elution, then on to template distribution, PCR reagent dispensing and product recovery. It is intended for clinical, molecular-diagnostics and research laboratories in the Philippines that need to standardise extraction and set up PCR reactions with minimal manual handling. The ADC CH196 is manufactured by Lepu Medical Technology / Yantai Addcare Bio-tech and is supplied and serviced locally by Medisense (Osyali Construction & Trading, Inc.).

Who it is for

Molecular biology and IVD laboratories, hospital and reference-lab PCR sections, public-health and research facilities that process nucleic acid samples in batches and want an open-platform instrument compatible with most magnetic-bead extraction kits available on the market.

Key features

• Full automation, sample-to-PCR: automated sampling, lysis, binding, washing, elution, template distribution, PCR reagent distribution and product recovery in one workflow.
• 96-throughput magnetic separation: a 1×96 extraction module with a 96-position magnetic lifting frame; mixing method, frequency and duration are adjustable for fast, efficient processing.
• Automatic magnetic-rod-sleeve loading with anti-drop bead design: avoids consumable contamination from manual loading and helps prevent liquid splashing for reliable results.
• 4/8-channel pipetting with disposable tips: air-displacement technology and disposable 200 µL / 800 µL tips that switch flexibly and eliminate carryover cross-contamination and system-liquid dilution.
• Multi-mode suction monitoring: liquid-level, clot, bubble, tube-volume and real-time tip monitoring for process control.
• Heating / incubation module: plate heating from room temperature up to 100°C (standard; up to 120°C as an OEM option) with over-temperature protection.
• Independent refrigeration modules (2–8°C): on-deck cooling of nucleic acid (DNA/RNA) purification products, PCR plates and PCR reagents, each module operating independently.
• Intelligent plate-transfer arm (gripper): moves microplates between deck modules along an independent Y-axis and keeps holding the plate even during a power failure.
• Biosafety handling: UV disinfection of the work area and a waste-tip cleaning function to reduce biological hazards and waste contamination.
• Open reagent platform: open/closed system optional, with broad compatibility across common extraction reagents; OEM/ODM supported.
• Integrated barcode scanning of samples and deep-well plates for traceability.

Technical specifications

• Method: magnetic-bead nucleic acid extraction (DNA/RNA)
• Extraction module: 1×96, with shaking and heating
• Pipetting channels: 4/8-channel sampling needles, disposable tips
• Tip volumes: 200 µL and 800 µL
• Sample positions: 20×5 = 100 rail sample positions
• Sampling precision: CV ≤ 1% (at 100 µL sampling volume)
• Incubation / heating: room temperature to 100°C standard (up to 120°C OEM), with over-temperature protection
• Refrigeration: 2–8°C, independent modules
• Control technology: parallel CAN bus and PLC integrated control
• Software: create, edit and delete protocols; storage of at least 10,000 extraction procedures; real-time status display and automatic project scheduling

What's included, installation & service

The instrument ships as a fully automated benchtop-cabinet workstation comprising the working cabin, 4/8-channel pipetting head, intelligent plate-transfer gripper, 1×96 magnetic extraction module, rail sample carrier, reagent carrier, tip carrier and integrated barcode scanner. As an authorised Philippine distributor, Medisense provides delivery, on-site installation and commissioning, operator orientation, and after-sales engineering support including preventive maintenance, calibration, repair and parts. Compatible extraction reagent kits and consumables (tips, deep-well plates) are quoted separately. Contact Medisense for current pricing in PHP, configuration options and availability.
