Perlove PLD6000 Multi-function X-ray machine - Economic one
Official distributor · Perlove
Perlove PLD6000 Multi-function X-ray machine - Economic one
- One DRF platform (radiography + real-time fluoroscopy) on a single motorized table, avoiding the cost and footprint of separate radiography and fluoroscopy suites
- 50 kW high-frequency generator with a wide 100-630 mA radiography range supports both routine and high-intensity exposures for busy imaging rooms
- Automatic image-stitching for full-spine and full lower-limb panoramic views, plus hardware/software DAP dose monitoring, without needing an add-on module
- SID electrically extends to 1.8 m with 200 kg table load capacity, giving flexibility across body habitus and exam types
- Complete set with computer -- generator, tube, detector, table, and imaging workstation ship as one package, plus Osyali installation, training, and after-sales engineering support in the Philippines
Request a Quote
Official pricing · warranty · nationwide installation
You get a partner, not just a machine
More Perlove equipment
Specifications & details+

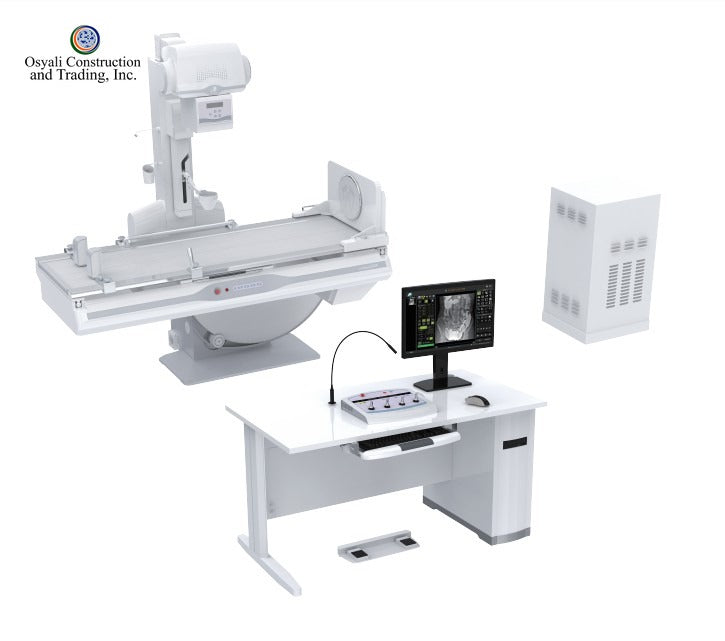

The Perlove PLD6000 Multi-function X-ray machine is a digital radiography and fluoroscopy (DRF) system built around a dynamic flat-panel detector on a single motorized examination table. It combines static radiography with real-time dynamic fluoroscopy in one room, suited to hospitals, diagnostic centres, and imaging clinics in the Philippines that need both general radiography and contrast/fluoroscopic studies without a separate fluoroscopy suite.
Positioned by the manufacturer as the economic configuration of Perlove's DRF line, the PLD6000 pairs a high-frequency high-voltage generator, a super-thermal-capacity X-ray tube, a dynamic flat-panel detector, and a smart imaging workstation with a flexible, motorized examination table -- a full DRF platform at an accessible entry point for facilities building out imaging capacity.
Key features and specifications
- Type: Multi-function DRF (digital radiography and fluoroscopy) platform, Perlove's economic-tier configuration.
- Generator: High-frequency, high-voltage, rated at 50 kW.
- Radiography range: tube voltage 40-150 kV, tube current 100-630 mA.
- Fluoroscopy range: tube voltage 40-125 kV, tube current 0.5-6 mA.
- Detector: Standard high-resolution dynamic flat-panel detector for both dynamic (moving) and static image acquisition.
- Examination table: Motorized, wide-range rotation and horizontal movement; source-to-image distance (SID) electrically extends to 1.8 m; load capacity up to 200 kg.
- Pediatric accessory: Removable dual grid designed for pediatric use.
- Imaging tools: Automatic image-stitching for full lower-limb and full-spine panoramic imaging; hardware and software Dose Area Product (DAP) monitoring to track applied radiation dose during exams.
- Workstation: Smart workstation with integrated acquisition and review controls; supports connection to RIS/PACS, network storage, and remote/tele-imaging workflows.
- Power supply: 380 V (±38 V), 50 Hz.
Clinical applications
- General radiography of the head, neck, chest, abdomen, lumbar spine, and limbs in supine, prone, lateral, and oblique positions.
- Dynamic fluoroscopy of body regions, including gastrointestinal tract and gallbladder contrast studies, salpingography, and similar contrast examinations.
- Chest radiography workflows (including occupational pneumoconiosis screening use), plus full-spine and full lower-limb panoramic imaging via automatic stitching.
- Pediatric radiography using the removable dual-grid accessory.
What's included, installation, and service
- Complete set with computer -- the standard PLD6000 package includes the high-frequency high-voltage generator, X-ray tube assembly, dynamic flat-panel detector, motorized examination table with spot-film/tube column, and the imaging workstation (computer) with acquisition software.
- On-site delivery, professional installation, and commissioning by Medisense.
- Operator orientation and training on the imaging workstation and table controls.
- After-sales engineering support: preventive maintenance, calibration, repair, and spare parts.
Dimensions
Not published by the manufacturer. Perlove's PLD6000 datasheet gives the SID range (electrically extends to 1.8 m) and table load capacity (up to 200 kg) but does not list overall unit footprint or weight; exact dimensions will be confirmed at the time of quotation and site/installation planning.
Final configuration and accessories are confirmed at the time of quotation. Pricing is available in Philippine Peso (PHP) on request.
Supplied by Osyali Construction & Trading, Inc., an authorized Perlove distributor in the Philippines. Installation, training, and after-sales service available.
