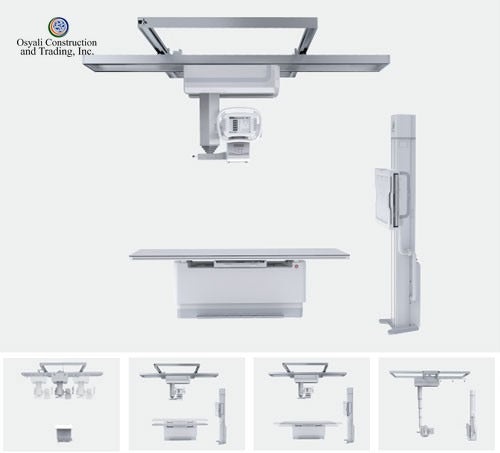

Perlove PLD7100A(65KW) Ceiling suspended Digital X-ray machine (Static Detector)

The Perlove PLD7100A (65 kW) is a ceiling-suspended digital X-ray machine (static detector) -- a fixed-room digital radiography (DR) system built around a static (fixed-position) flat panel detector. It suits hospital radiology departments, diagnostic imaging centers, and clinics that need a fixed installation covering a wide range of patient positions and projections from a single room.

The ceiling-mounted tube column travels along an overhead rail and pairs with a wall (upright) bucky stand and a patient table, supporting standing, seated (wheelchair/stretcher), and recumbent examinations without repositioning the patient between views.

Who it is for

Suited to facilities performing routine chest, abdominal, spine, extremity, and orthopedic radiography, including departments handling patients with limited mobility. The ceiling suspension frees floor space and lets staff move the tube over the table or upright stand without relocating the patient.

Key features and specifications

• Type: Ceiling suspended digital X-ray machine with static (fixed) flat panel detector.
• Generator: High-inverter-frequency high-voltage generator rated at 65 kW.
• Detector: Static flat panel detector configuration; detector options include portable or wireless, and single- or dual-detector setups.
• High-resolution option: Optional hundred-micron flat panel detector with a 4K x 4K acquisition matrix and 100 µm pixel size for fine image detail.
• X-ray tube: High heat capacity, high-speed anode rotation, with free tube rotation for varied projection angles.
• Auto focusing: Tube focal point automatically aligns to the detector without manual adjustment.
• Auto tracking: Synchronized vertical travel of the X-ray tube and bucky unit for fast positioning, with one-button upright/prone conversion.
• Motion control: Vertical motorized control with manual/electric horizontal control and automatic switchover.
• Control interface: LCD touchscreen at the stand for SID and tube-rotation control, APR (anatomically programmed radiography) presets, emergency exposure mode, and exposure-parameter synchronization with the workstation.
• Optional imaging tools: Automatic exposure control (AEC), automatic image stitching for full-spine and full-lower-limb imaging, and DAP (dose-area product) monitoring.
• Patient table: Mobile type or electric lifting type; lifting table lowers to a minimum height of approximately 56 cm for easier patient transfer.
• Detector charging: In-tray charging ports built into both the bucky stand and bucky table for wireless-detector charging.

Clinical applications

• General radiography of the chest, abdomen, spine, and extremities in standing, seated, and recumbent positions.
• Orthopedic and trauma imaging where multiple projection angles are needed from one installation.
• Radiography for patients with limited mobility, using the wheelchair/stretcher-accessible upright stand and lifting table.
• Full-spine and full-lower-limb panoramic imaging where the optional automatic image-stitching feature is configured.

What's included, installation, and service

• Complete set with computer -- the standard PLD7100A package includes the ceiling-suspended tube column with X-ray tube and collimator, the 65 kW high-frequency high-voltage generator, the flat panel detector(s), an upright (wall) bucky stand, a patient bucky table (mobile or lifting), and the operator console/workstation (computer) with acquisition software and touchscreen control interface.
• Exact configuration (detector type/quantity and table type) is specified at the time of order.
• On-site delivery, professional installation, and commissioning by Medisense.
• Operator orientation and training on the workstation and stand/table controls.
• After-sales engineering support: preventive maintenance, calibration, repair, and spare parts.

Dimensions

Not published by the manufacturer. Perlove's PLD7100A product page details the generator output, detector, and control features but does not list an overall room footprint, ceiling-rail travel length, or system weight; exact dimensions and room-layout requirements will be confirmed at the time of quotation and site/installation planning.

Final configuration and accessories are confirmed at the time of quotation. Pricing is available in Philippine Peso (PHP) on request.

Supplied by Osyali Construction & Trading, Inc., an authorized Perlove distributor in the Philippines. Installation, training, and after-sales service available.
