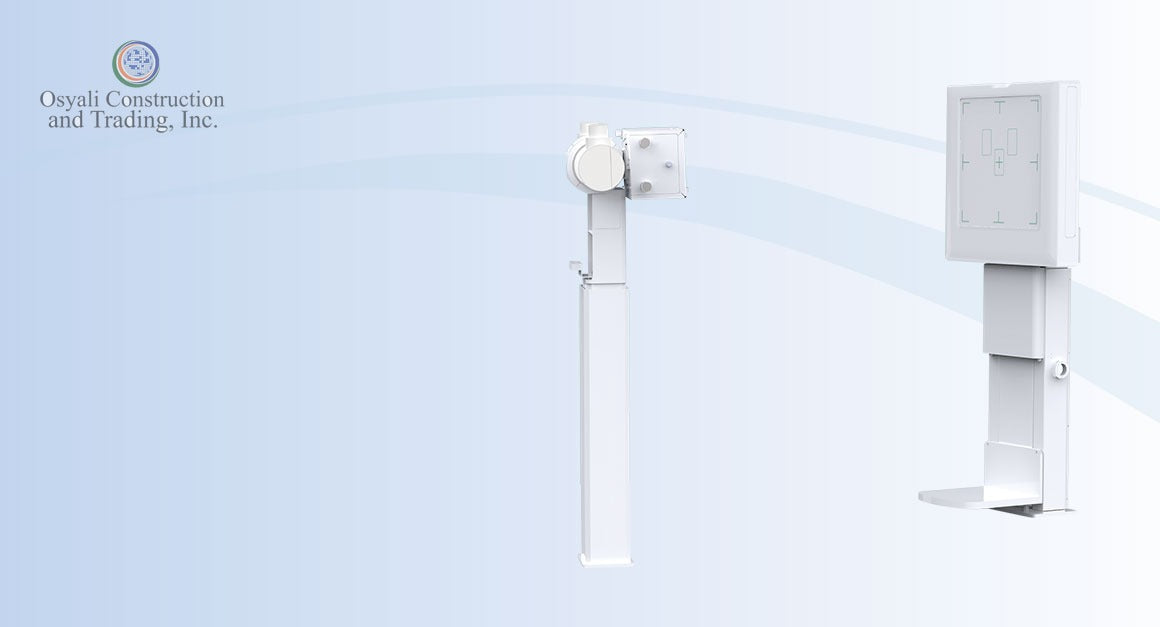

Perlove PLD3800B Vehicle mounted X-ray machine

The Perlove PLD3800B is a vehicle-mounted digital radiography (DR) X-ray machine from Nanjing Perlove Medical Equipment Co., Ltd., engineered for installation inside medical vehicles, mobile clinics, and modular health units. It brings full-size digital radiography to the point of need, allowing radiographic imaging to be performed away from a fixed radiology room. The system is suited to hospitals, diagnostic centers, mobile health programs, and outreach screening services that require flexible, on-site imaging capability.

Built around Perlove's high-frequency high-voltage generator and a large-format flat panel detector, the PLD3800B is designed for the vibration and space constraints of a vehicle environment while still supporting general radiographic views of the head, chest, abdomen, spine, and lower limbs.

Key features and specifications

• Vehicle-mounted DR configuration built for installation in medical vehicles and mobile units, with a shock- and vibration-resistant double-column structure for use on the move.
• High-frequency high-voltage generator with a 500 kHz ultra-high inverter frequency, for stable output and low-dose radiography.
• High heat-capacity X-ray tube rated for prolonged, intensive operation.
• 17 x 17 inch (43 x 43 cm) large field-of-view flat panel detector with 16-bit A/D conversion for a wide grayscale range and detailed image quality.
• Automatic tube tracking that returns the tube to center position when the chest radiography frame is positioned.
• Bucky stand with 300 mm longitudinal movement and adjustable height (detector center 100 cm to 130 cm from the ground), covering imaging from the neck to the hip; optional foot pedal with 300 mm longitudinal travel.
• Compact double-column design suited to the limited floor space of a vehicle interior.
• Image acquisition in approximately 3 to 5 seconds.
• Dose monitoring via an integrated DAP (Dose Area Product) system, plus an ionization-chamber AEC (automatic exposure control) function with automatic brightness adjustment.
• Remote maintenance and self-diagnosis capability for field serviceability.

Typical applications

• Radiographic imaging of the head, chest, abdomen, spine, lower limbs, and patella.
• Cardiothoracic ratio measurement and spine/scoliosis measurement.
• Deployment in mobile clinic vehicles, physical examination units, radiology departments, ICU support, field shelters, and temporary screening sites.

What's included

This listing is for the complete set with computer: high-frequency X-ray generator, X-ray tube, flat panel detector, double-column Bucky/tube stand, and acquisition/control workstation. Foot pedal and Bucky intelligent lifting are available as options. Exact configuration is matched to the vehicle and the buyer's examination requirements.

Dimensions

Overall unit dimensions and weight are not published by the manufacturer. Configuration is vehicle-specific — our team can advise on space and installation requirements for your vehicle during quotation.

Availability and support

Osyali Construction & Trading, Inc. is an authorized Osyali (Osyali Construction & Trading, Inc.) distributor of Perlove equipment in the Philippines, providing delivery, installation and integration into the medical vehicle, commissioning, operator orientation, and after-sales service including preventive maintenance, calibration, repair, and spare parts. As an X-ray device, registration, licensing, and radiation-safety compliance with the Philippine FDA and the relevant radiation regulatory authority apply — our team can assist with the required documentation. Request a quote for current pricing and lead time.
