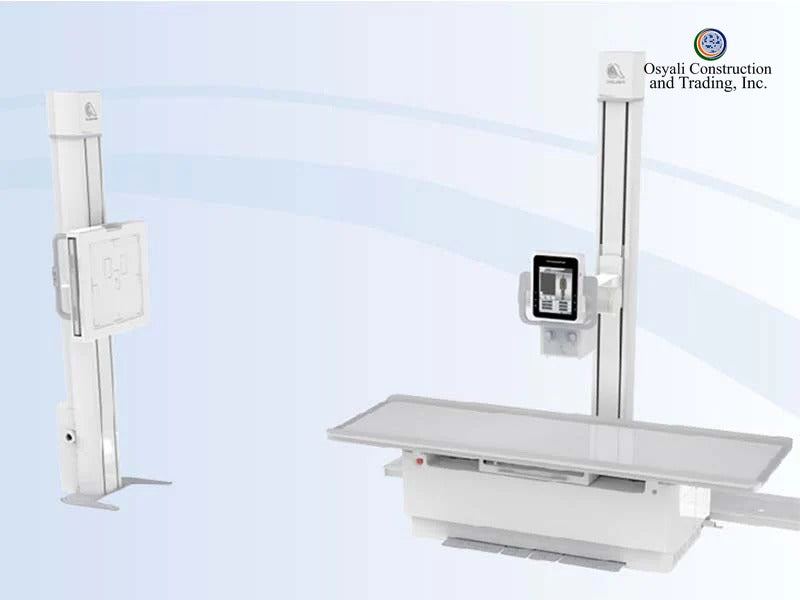

Perlove PLD6500E Floor mounted Digital X-ray machine - Middle

The Perlove PLD6500E is a floor-mounted digital radiography (DR) X-ray system built on a dual-column, four-way floating-table platform from Nanjing Perlove Medical Equipment Co., Ltd. It is configured for general radiographic imaging across a wide range of body regions, including the head, chest, abdomen, spine, pelvis, thorax, and limbs, and supports multiple patient positions such as supine, erect, and lateral. The system is intended for use in radiology departments, hospitals, clinics, diagnostic centers, and occupational/health-examination facilities.

Who it is for

Designed for medium-throughput imaging environments in the Philippines that need a fixed, dual-detector DR room. The combination of a motorized elevating table, a free-travel ceiling-to-floor tube column, and a separate vertical bucky stand lets radiographers image both table and standing/seated patients within a single installation.

Key features and specifications

• High-frequency generator: 65.5 kW output, 500 kHz high-frequency inverter, three-phase 380 V (±38 V) / 50 Hz supply.
• Tube voltage / current: 40–150 kV (1 kV steps); 10–800 mA tube current.
• X-ray tube: Canon-brand rotating-anode tube, dual focal spots 1.2 mm (large) / 0.6 mm (small), 12° target angle, 9700 rpm anode rotation, 300 kHU anode heat content, 1250 kHU tube housing heat capacity.
• Flat-panel detector: Amorphous-silicon (a-Si) with CsI scintillator; 430 × 430 mm active area (approx. 17″ × 17″); 3072 × 3072 pixel matrix; 139 µm pixel pitch; 3.7 lp/mm spatial resolution; 16-bit A/D conversion. Detector can be configured as mobile or wireless, single or dual.
• Automatic Exposure Control (AEC): assists selection of exposure factors to help standardize image acquisition and limit repeat exposures.
• Tube column travel: 2500 mm longitudinal travel; 1300 mm vertical travel (tube can be lowered to about 35 cm from the floor for low-position imaging); tube column rotation ±180°; tube head rotation ±90°.
• Floating-table imaging: motorized elevating tabletop with four-way float; tabletop height 500–720 mm; 1000 mm longitudinal and 260 mm transverse tabletop travel; up to 200 kg patient load.
• Vertical bucky stand: detector centre travel range 1500 mm for standing and seated chest/spine work.
• Anti-scatter grids: two removable high-density grids supplied (10:1 ratio, 103 lines), with 1.0 m and 1.8 m focal distances for table and wall-stand use.
• Touchscreen tube interface: large display on the tube head, synchronized with the workstation, with 3D positioning guidance to support patient setup.
• Digital workstation & software: DICOM-compatible acquisition workstation with DICOM Worklist, store, print and image processing tools (windowing, stitching for long-bone/spine, image rotation and measurement); high-brightness diagnostic monitor.

What is included, installation and service

A complete room configuration comprises the high-frequency generator, the floor-mounted X-ray tube column, the four-way floating elevating table, a vertical bucky/wall stand, the flat-panel detector(s), two removable anti-scatter grids, and the image-acquisition workstation with software and diagnostic monitor. As an authorized distributor, Medisense (Osyali Construction & Trading, Inc.) provides site planning, delivery, professional installation, commissioning and operator orientation, plus after-sales engineering support including preventive maintenance, calibration, repair and spare parts. Pricing is quoted in Philippine Peso (PHP); contact us for a configuration-specific quotation. Final specifications may vary by configuration; confirm the exact build at the time of order.

Dimensions

Tabletop (patient table): 2250 x 810 mm; tabletop height adjustable 500-720 mm. Tube column vertical travel 1300 mm (tube to ~35 cm above floor at lowest); tube column longitudinal travel 2500 mm. Vertical bucky stand detector-centre travel range 1500 mm. Maximum table patient load: 200 kg. (Manufacturer does not publish a single crated W x D x H or total system weight for this modular floor-mounted system.)

Supplied by Osyali Construction & Trading, Inc., an authorized Perlove distributor in the Philippines. Installation, training, and after-sales service available.
