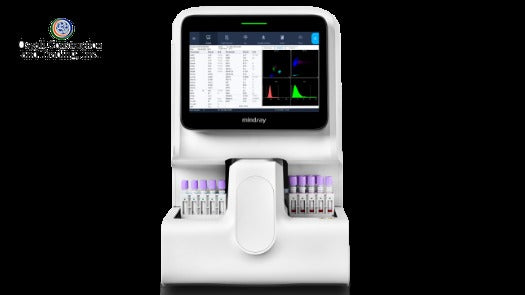

Mindray BC-760 Auto Hematology Analyzer with ESR (5-Part Diff)

The Mindray BC-760 Auto Hematology Analyzer with ESR is a fully automated 5-part differential hematology analyzer that performs a complete blood count (CBC) and an erythrocyte sedimentation rate (ESR) measurement from a single sample in one integrated benchtop instrument. It is designed for small-to-medium and medium-volume clinical laboratories, hospitals, diagnostic centers, and reference labs that want to consolidate CBC and ESR testing on one platform instead of running two separate analyzers. Medisense supplies the BC-760 in the Philippines as an authorized distributor (Osyali Construction & Trading, Inc.), with local installation and after-sales support.

How it works

The BC-760 reports up to 33 parameters from whole blood, drawn from 109 measuring parameters. It uses Mindray's SF Cube 3D fluorescent cell-analysis technology (Scatter, Fluorescence, and 3D analysis) for WBC differentiation, the focusing flow / DC impedance method for RBC and platelet counting, the colorimetric method for hemoglobin, and a photometric method for the integrated ESR module. The instrument generates combined CBC and ESR results in one test in about 1.5 minutes.

Key features and specifications

• Integrated CBC + ESR: reports CBC and ESR together from one run in approximately 1.5 minutes, removing the need for a separate ESR analyzer. The photometric ESR method shows strong correlation with the traditional Westergren method, and combined CBC+ESR examination helps avoid interference from dehydration, polycythemia vera, and anemia on ESR results.
• 5-part WBC differential: SF Cube 3D fluorescent technology differentiates six WBC populations — Neu, Lym, Mon, Eos, Bas, and immature granulocytes (IMG) — within the 5-part differential class.
• Parameters: 109 measuring parameters in whole blood; 33 reportable parameters covering WBC, RBC, HGB, MCV, MCH, MCHC, RDW, HCT, NRBC, PLT, PLT-H, MPV, PDW, PCT, IPF, and ESR.
• Optical PLT-H: combines small platelets from the impedance method with large platelets from the optical method in every CBC test, helping resist common platelet-counting interferences without extra reagents.
• Throughput: up to 80 tests/hour (CBC) and 40 tests/hour (CBC+ESR).
• Sample volume: 25 µL whole blood (CBC); 160 µL (CBC+ESR); 20 µL (predilute).

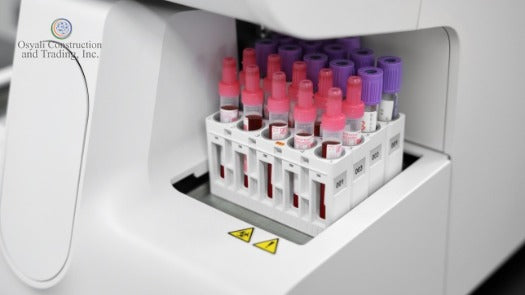

• Sample handling: continuous autoloading (5 positions x 6 racks) with cap-piercing STAT support; accepts peripheral blood, capillary blood, and pre-diluted samples.
• Methods: RBC/PLT focusing flow-DC impedance; HGB colorimetric; ESR photometric.
• Data storage: up to 150,000 results including numeric and graphical information.
• Interface & software: labXpert software (shared with the BC-6 series), floating touchscreen, RFID encryption-key management, iHelp videos; LAN x1 and USB x4 connectivity.
• Power: 100–240 V~ (±10%), 50/60 Hz, 600 VA.
• Dimensions & weight: 655 mm (W) x 840 mm (D) x 600 mm (H); weight ≤ 70.6 kg.

What is included, installation and service

Supplied as a complete benchtop analyzer with the integrated automatic ESR module, autoloader, and labXpert operating software as standard configuration. Mindray-validated QC and calibrator materials (the same as the BC-6000 series) and dedicated reagents are available separately to support routine operation. Medisense provides delivery, on-site installation, operator orientation, and after-sales technical support in the Philippines. The unit carries a 6-month warranty against factory defect (excluding acts of God and human error). Prices are quoted in Philippine Pesos (PHP); contact Medisense for a current quotation, reagent packages, and a preventive-maintenance / service plan.

Dimensions

655 mm (W) x 840 mm (D) x 600 mm (H); weight ≤ 70.6 kg

Supplied by Osyali Construction & Trading, Inc., an authorized Mindray distributor in the Philippines. Installation, training, and after-sales service available.
