- Five analysis methods (Endpoint, Kinetics, Two-point Kinetics/Fixed-time, Absorbance, Turbidimetry) cover a broad clinical chemistry menu on one analyzer
- 8-position automatic filter wheel across 340-670 nm enables mono- and bi-chromatic testing without manual filter changes
- Dual flowcell/cuvette measurement modes and up to 200 programmable tests give labs flexibility to fit their existing workflow and reagents
- Built-in thermal printer plus onboard storage for 3,000+ sample results and 1,000+ QC results keeps records on-device without a separate PC
- Backed by Osyali/Medisense as authorized Mindray Philippines distributor: installation, training, calibration, and after-sales service included
Request a Quote
Official pricing · warranty · nationwide installation
You get a partner, not just a machine
More Mindray equipment
Specifications & details+

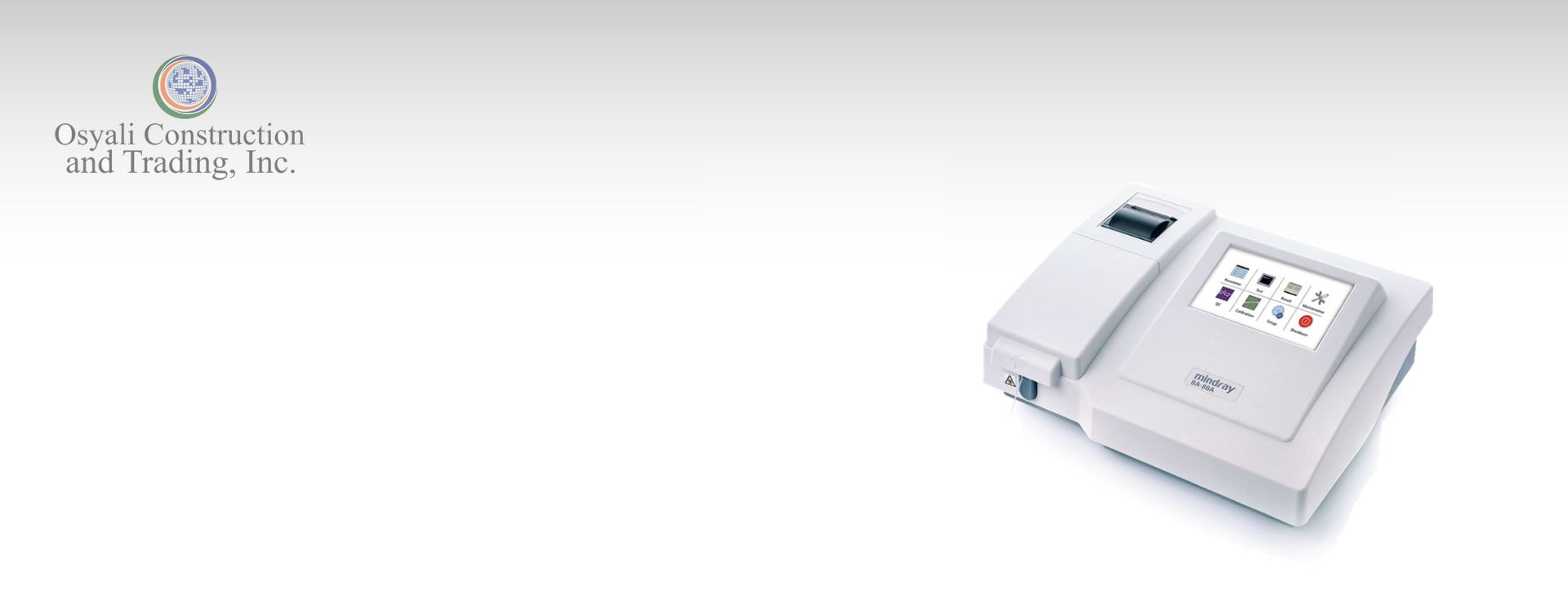

The Mindray BA-88A is a semi-automated clinical chemistry analyzer designed for small to medium-volume laboratories, clinics, and veterinary practices. It performs photometric analysis of clinical chemistry parameters using an open reagent system, giving laboratories the flexibility to run a wide range of assays. Operation is guided through a large colour touchscreen with easy-to-use software, making it suitable for facilities that need a compact, single-channel analyzer with a straightforward workflow.
Key Features
- Multiple analysis methods: Endpoint (with or without reagent/sample blank), Kinetics, Two-point Kinetics/Fixed-time, Absorbance, and Turbidimetry, with linear and non-linear calibration, covering a broad range of clinical chemistry assays.
- Wavelength range 340-670 nm with an automatic 8-position filter wheel (340, 405, 450, 510, 546, 578, 630, and 670 nm; bandwidth <8nm) for mono- and bi-chromatic measurement.
- Tungsten-halogen light source (6V / 10W).

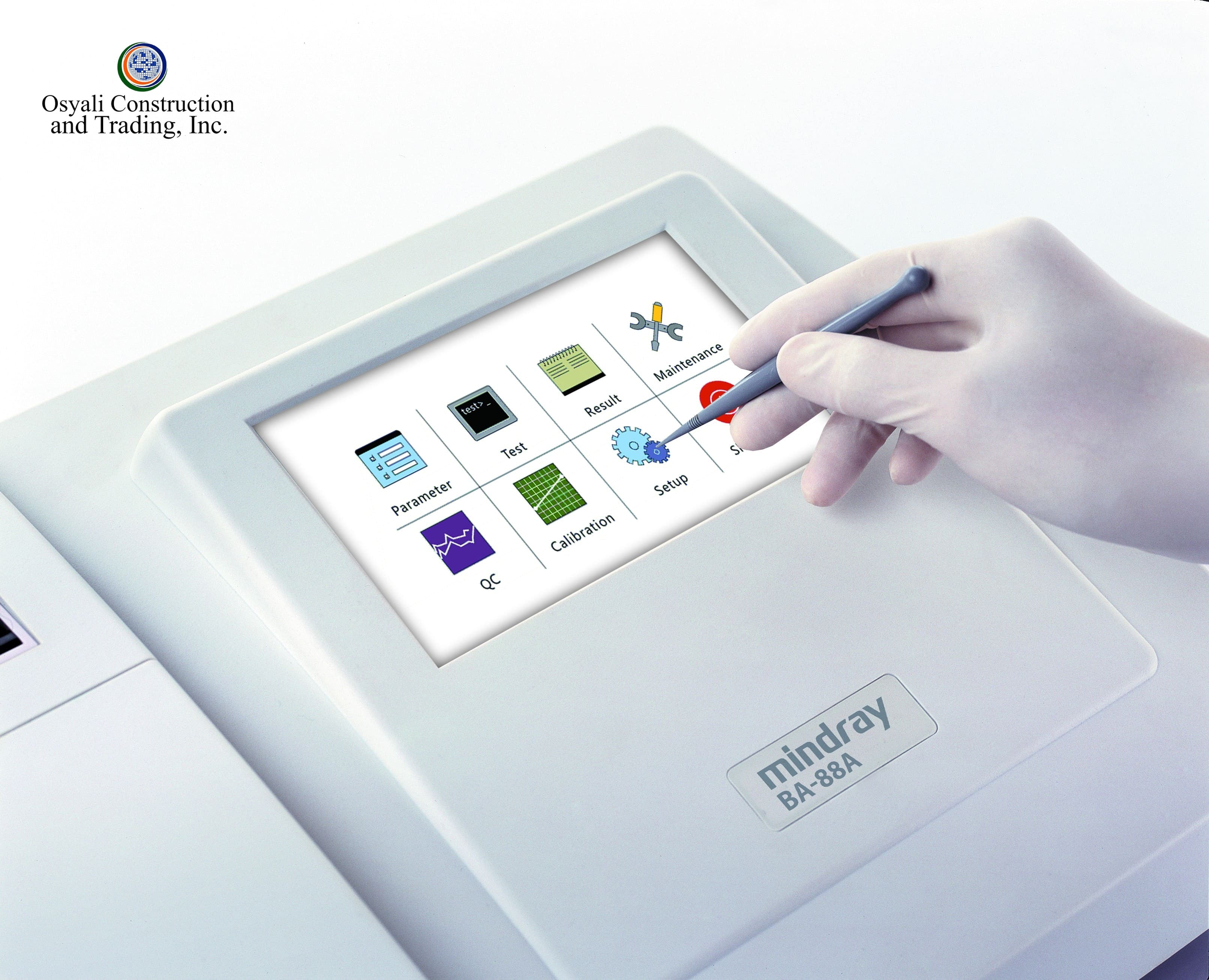

- 7.0-inch TFT colour touchscreen with a pop-up keypad; supports an external USB keyboard and mouse.
- Two measurement modes: flowcell (stainless steel with quartz window, 32 µL measuring volume, 10mm optical path) or cuvette.
- Up to 200 programmable test items for laboratory customisation, with K-factor programming and customisable patient information.
- Peltier-element temperature control with room temperature, 25°C, 30°C, and 37°C options.
- Onboard data storage of more than 3,000 sample results and over 1,000 quality-control results.
- Built-in thermal printer for immediate report output.
- Multi-language operating software and a universal 100-240V power supply with power-failure protection.
Technical Specifications
- Analysis methods: Endpoint, Kinetics, Two-point Kinetics/Fixed-time, Absorbance, Turbidimetry
- Wavelength range: 340-670 nm, 8-position automatic filter wheel
- Photometric range: 0-3.5 ABS
- Light source: Tungsten-halogen lamp, 6V / 10W
- Display: 7.0" TFT touchscreen with pop-up keypad
- Programmable tests: up to 200
- Measurement modes: flowcell or cuvette
- Temperature control: Peltier elements; room temp / 25°C / 30°C / 37°C
- Data storage: >3,000 sample results; >1,000 QC results
- Printer: built-in thermal printer
- Interface: RS232 serial port; two USB 2.0 ports for keyboard, mouse, and printer
- Power supply: 100-240V~, 50/60 Hz
- Dimensions: 430 x 360 x 170 mm (L x W x H)
- Weight: 6.8 kg
What's Included & Service
Each unit is supplied as a complete benchtop analyzer with its built-in thermal printer and standard accessories. As an authorised Philippine distributor, Medisense (Osyali Construction & Trading, Inc.) provides installation, operator orientation, and after-sales technical support, including preventive maintenance, calibration, repair, and spare parts. For pricing in Philippine Peso (PHP), reagent and consumable options, and availability, please contact our team.
Dimensions
430 x 360 x 170 mm (L x W x H); weight 6.8 kg
