Mindray BC-30s Hematology analyzer
Official distributor · Mindray
Mindray BC-30s Hematology analyzer
- Fully automated 3-part diff CBC with 21 parameters + 3 histograms from a single sample, in a compact benchtop footprint about the size of a 17-inch laptop
- 70 samples/hour throughput with only 9 µL of whole blood (or 20 µL prediluted) — fast turnaround with minimal draw, good for low-to-mid volume clinics and capillary/microsample workflows

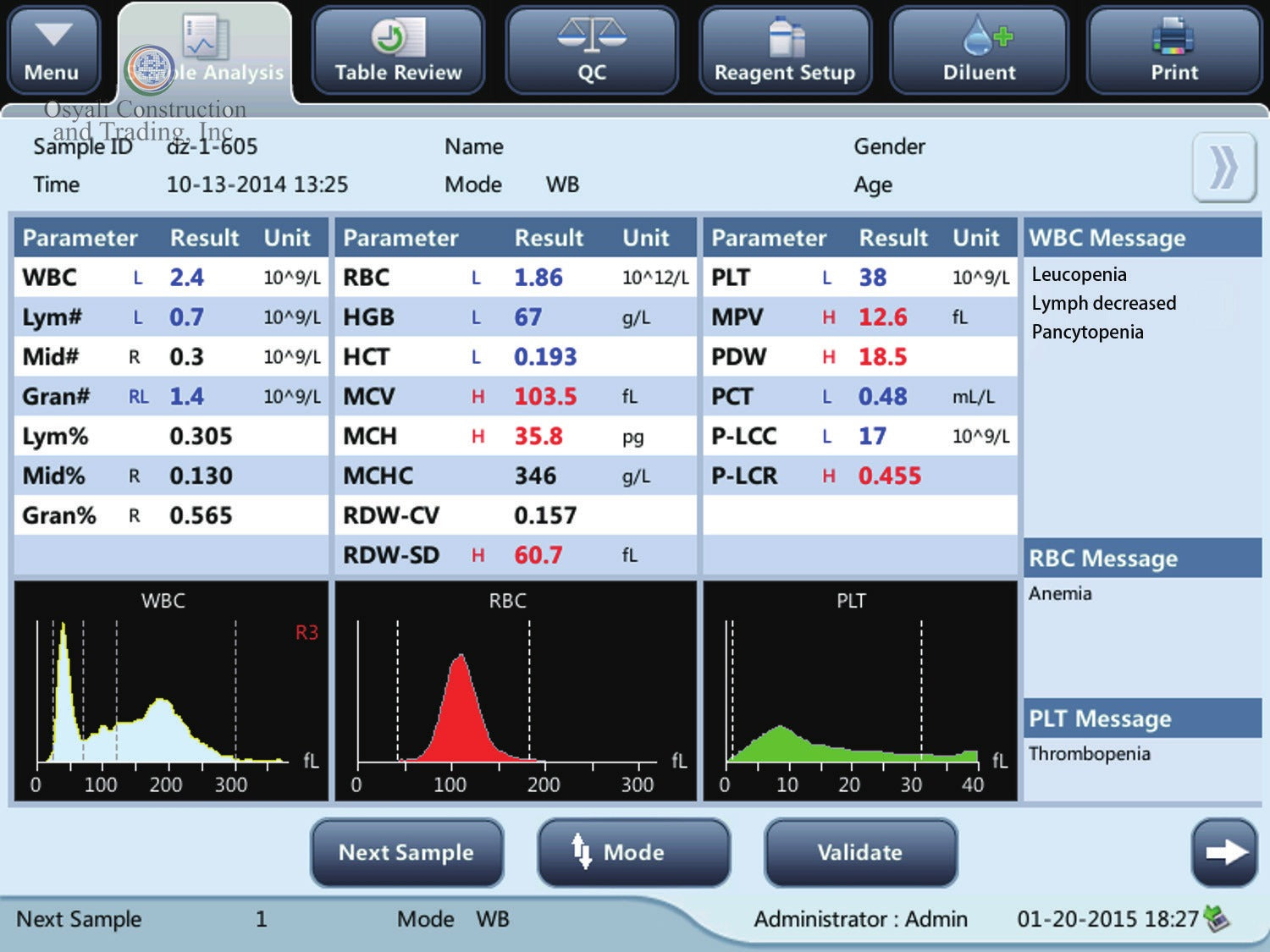

- 10.4-inch color touchscreen with 500,000-result onboard storage keeps records on-hand without constant offloading
- LAN/HL7 bi-directional LIS connectivity plus 4 USB ports future-proofs the analyzer for lab network integration
- Backed by Osyali/Medisense as authorized Mindray PH distributor — installation, training, calibration, and genuine reagent supply included
Request a Quote
Official pricing · warranty · nationwide installation
You get a partner, not just a machine
More Mindray equipment
Specifications & details+

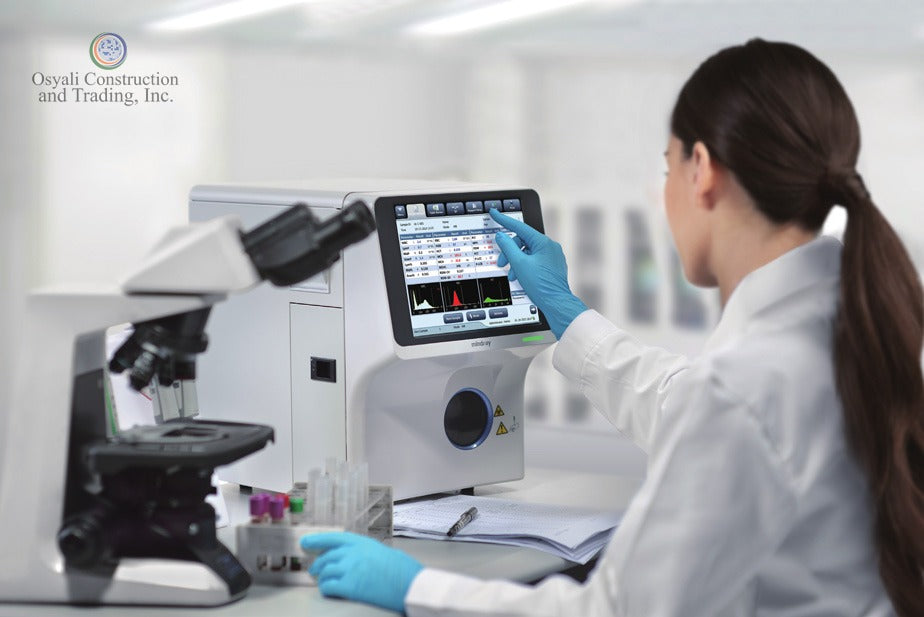

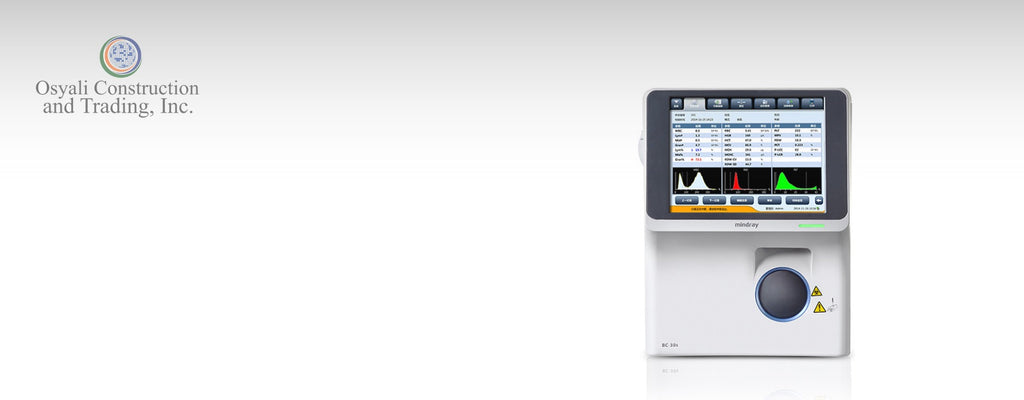

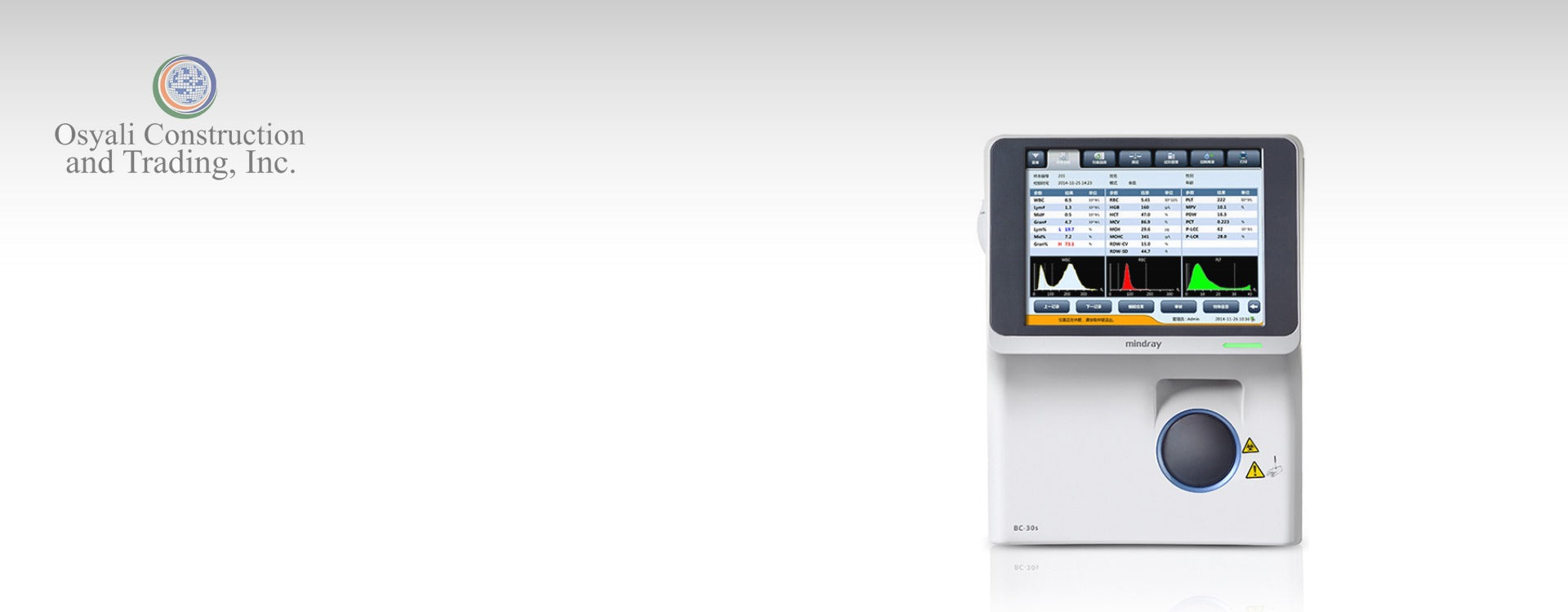

The Mindray BC-30s is a compact, fully automated 3-part differential hematology analyzer designed for small to medium-volume laboratories, clinics, and physician offices. It performs automated complete blood count (CBC) analysis, reporting 21 parameters with a 3-part white blood cell differential and three histograms (WBC, RBC, PLT) from a single blood sample. With a footprint roughly the size of a 17-inch laptop, it suits facilities where bench space is limited but reliable routine hematology testing is required.
The BC-30s uses the electrical impedance method for WBC, RBC, and platelet counting and a cyanide-free reagent for hemoglobin measurement. It supports both whole-blood and prediluted sampling modes, making it practical for venous and capillary (microsample) workflows in low-throughput settings.
Key features and specifications
- Reported parameters: 21 parameters (WBC, Lymph#, Mid#, Gran#, Lymph%, Mid%, Gran%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT, P-LCR, P-LCC) plus 3 histograms (WBC, RBC, PLT)
- Differential: 3-part WBC differential
- Measurement principles: Electrical impedance for WBC/RBC/PLT counting; cyanide-free reagent for hemoglobin
- Throughput: Up to 70 samples per hour
- Sample volume: 9 µL in whole-blood mode; 20 µL in prediluted mode
- Sampling modes: Whole blood and prediluted, open-vial sampling (supports venous and capillary samples)
- Display: 10.4-inch TFT colour touchscreen
- Data storage: Up to 500,000 results, including numeric data and histograms
- Connectivity: LAN port with HL7 protocol and bi-directional LIS support; 4 USB ports (for external printer, software upgrade, barcode reader, external Wi-Fi, keyboard, and mouse)
- Printer: Built-in thermal recorder (50 mm paper); external printer optional
- Reagents: M-30D Diluent, M-30CFL Lyse, and Probe Cleanser
- Power: 100–240 V, ≤300 VA, 50/60 Hz
- Dimensions: 300 mm (W) x 410 mm (D) x 400 mm (H); weight ≤20 kg
What is included, installation, and service
Each unit is supplied with the analyzer and standard accessories. Mindray-original diluent, lyse, probe cleanser, controls, and calibrators are available to support setup and ongoing operation. As an authorized Philippine distributor, Medisense (Osyali Construction & Trading, Inc.) provides delivery, installation, and operator orientation, along with after-sales engineering support including preventive maintenance, calibration, repair, and genuine spare parts and reagents. For pricing in Philippine Pesos (PHP), reagent supply, and a configuration quotation, please contact our sales team.
Dimensions
300 mm (W) x 410 mm (D) x 400 mm (H); weight ≤20 kg
Supplied by Osyali Construction & Trading, Inc., an authorized Mindray distributor in the Philippines. Installation, training, and after-sales service available.
