Mindray AF-300 Automatic ID/AST Analyzer Capacity options of 32 Comprehensive ID/AST panels

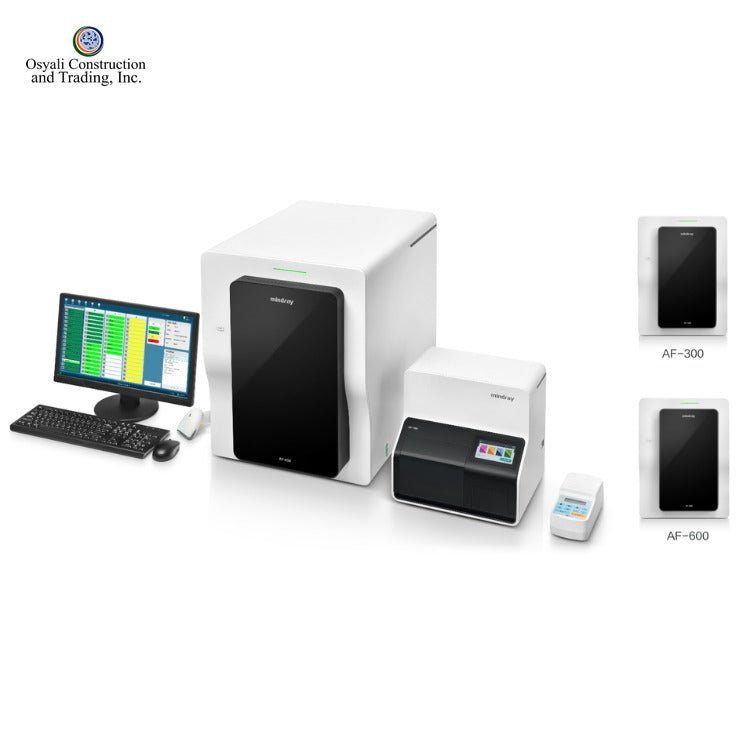

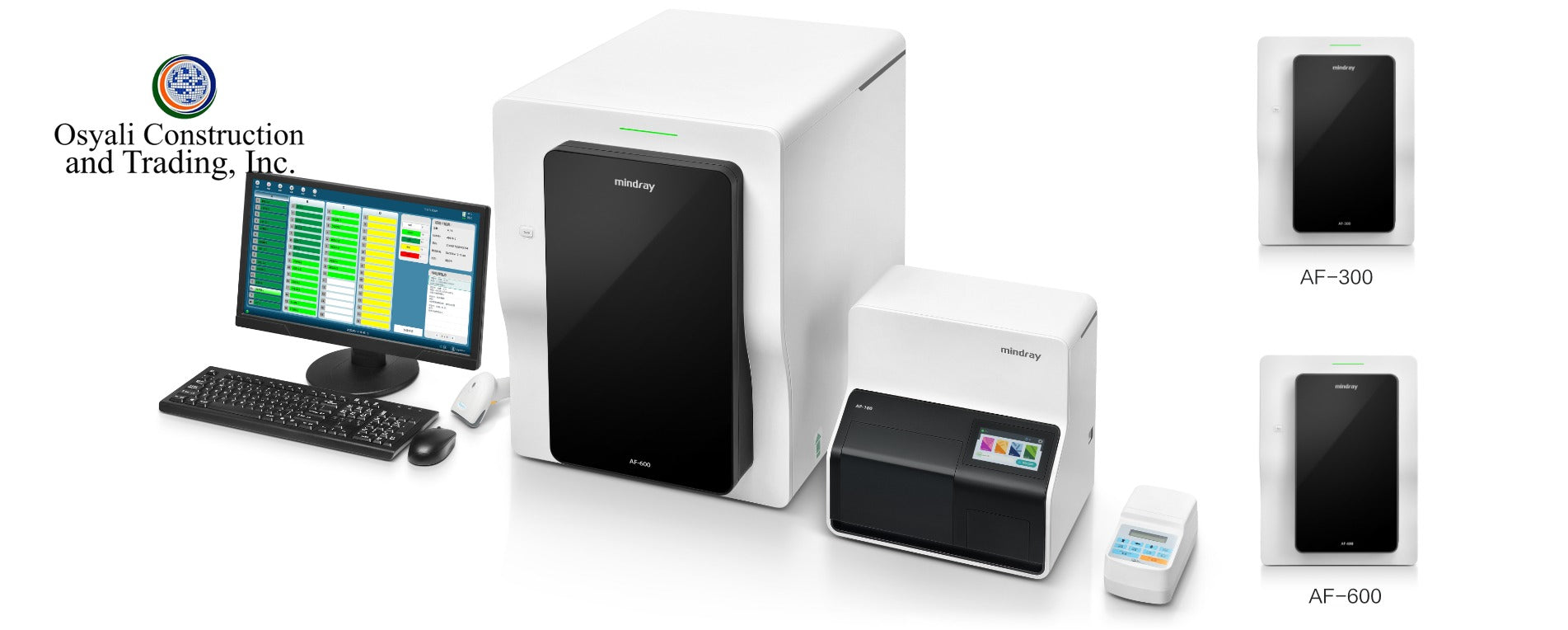

The Mindray AF-300 Automatic ID/AST Analyzer is a fully automated microbiology system for the identification (ID) of microorganisms and antimicrobial susceptibility testing (AST). Built for small-to-medium clinical microbiology laboratories, reference labs, and hospital diagnostic departments in the Philippines, the AF-300 consolidates inoculation, incubation, reading, and interpretation into a single bench-top platform. It holds up to 32 comprehensive ID/AST panels for simultaneous processing, helping laboratories standardize their workflow and manage routine bacterial and yeast testing.

How the AF-300 works

The analyzer uses Mindray combo ID/AST cards and a five-wavelength optical detection system that matches the characteristic wavelengths of different biochemical colour reactions, generating specific data points for interpretation. Each panel cell is read by a dynamic algorithm at approximately 20-minute cycles, with reported turnaround times as fast as 4 to 5 hours depending on the organism and panel. Antimicrobial susceptibility is determined using serial doubling micro-broth dilution to report minimum inhibitory concentrations (MICs), in line with CLSI and EUCAST guideline references.

Key features and specifications

• Capacity: Up to 32 ID/AST panels loaded for simultaneous testing, with continuous (random) access for loading and inspection.
• Identification range: Primary panels cover 500+ bacterial species, including Enterobacteriaceae, non-fermenting bacteria, staphylococci, enterococci, streptococci, Neisseria, Haemophilus, yeast-like fungi, corynebacteria, vibrios, bacilli, and anaerobes.
• Susceptibility testing: Direct MIC reporting via serial double micro-broth dilution, referencing CLSI and EUCAST guidelines; covers 200+ antimicrobial agents across the panel menu.
• Detection: Five-wavelength optical detection with dynamic cyclic reading (~20-minute intervals).
• Turnaround: Results as fast as 4 to 5 hours.
• Resistance phenotype reporting: Reports recognised resistance markers such as MRSA, MRCoNS, VISA, hVISA, VRSA, VRE, HLGR, CRE, and others.
• Automation: Automated dosing/inoculation, constant-temperature incubation, automatic data collection, dynamic interpretation, and self-inspection.
• Panel handling: Built-in barcode scanner for batch panel ID scanning to support efficient loading and sample traceability.
• Expert system: On-board expert system providing epidemiology, resistance-mechanism, and therapy-related reference information drawn from international clinical practice and laboratory standard guidelines.

What is included, installation and service

The AF-300 is supplied as the bench-top analyzer with operating software and is compatible with Mindray ID/AST and combo panels (including dedicated panels such as TDR NH and TDR YEAST lines) ordered separately to match each laboratory's menu. As an authorized Mindray distributor in the Philippines, Medisense (Osyali Construction & Trading, Inc.) provides delivery, installation and commissioning, operator orientation, and after-sales engineering support including preventive maintenance, calibration, repair, and spare parts. Reagents, panels, and consumables are available for resupply. Contact Medisense for current pricing in Philippine Peso (PHP) and a configuration matched to your laboratory's testing volume.

Dimensions

Approx. 500 mm (W) x 710 mm (D) x 700 mm (H); weight 60 +/- 2 kg (per distributor specification). Recommended clearance: ~298 mm front, ~240 mm right side.

Supplied by Osyali Construction & Trading, Inc., an authorized Mindray distributor in the Philippines. Installation, training, and after-sales service available.
