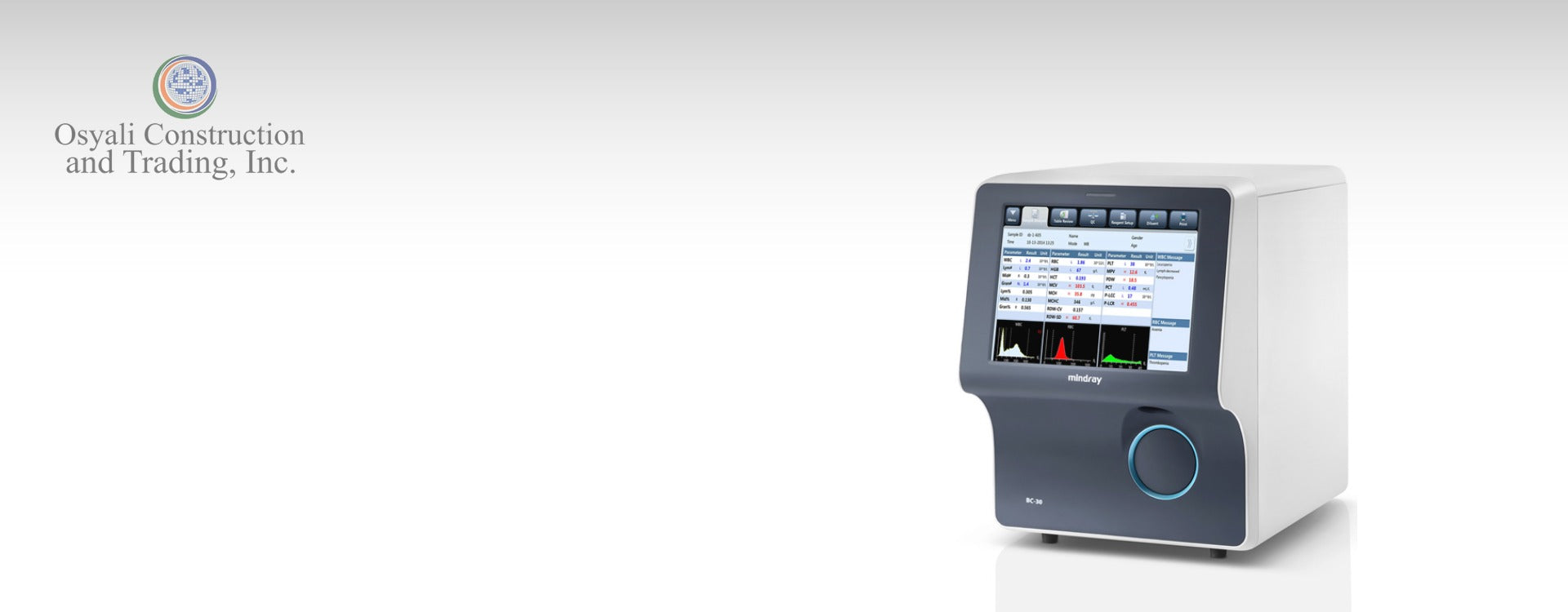

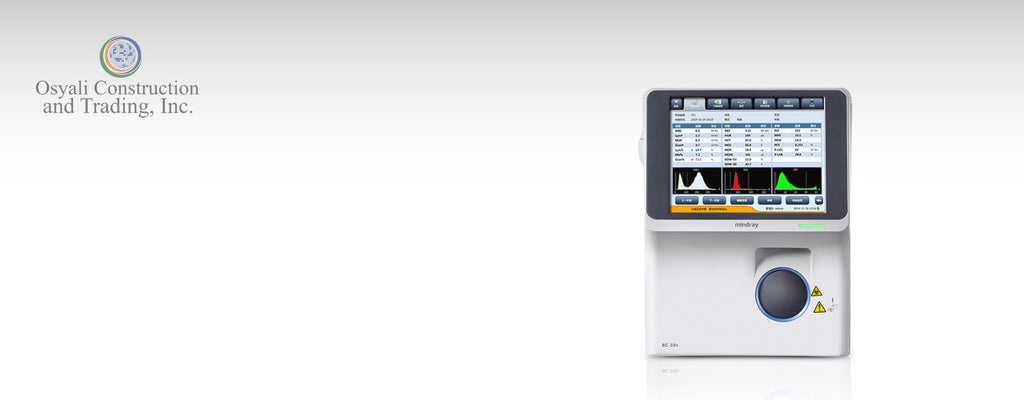

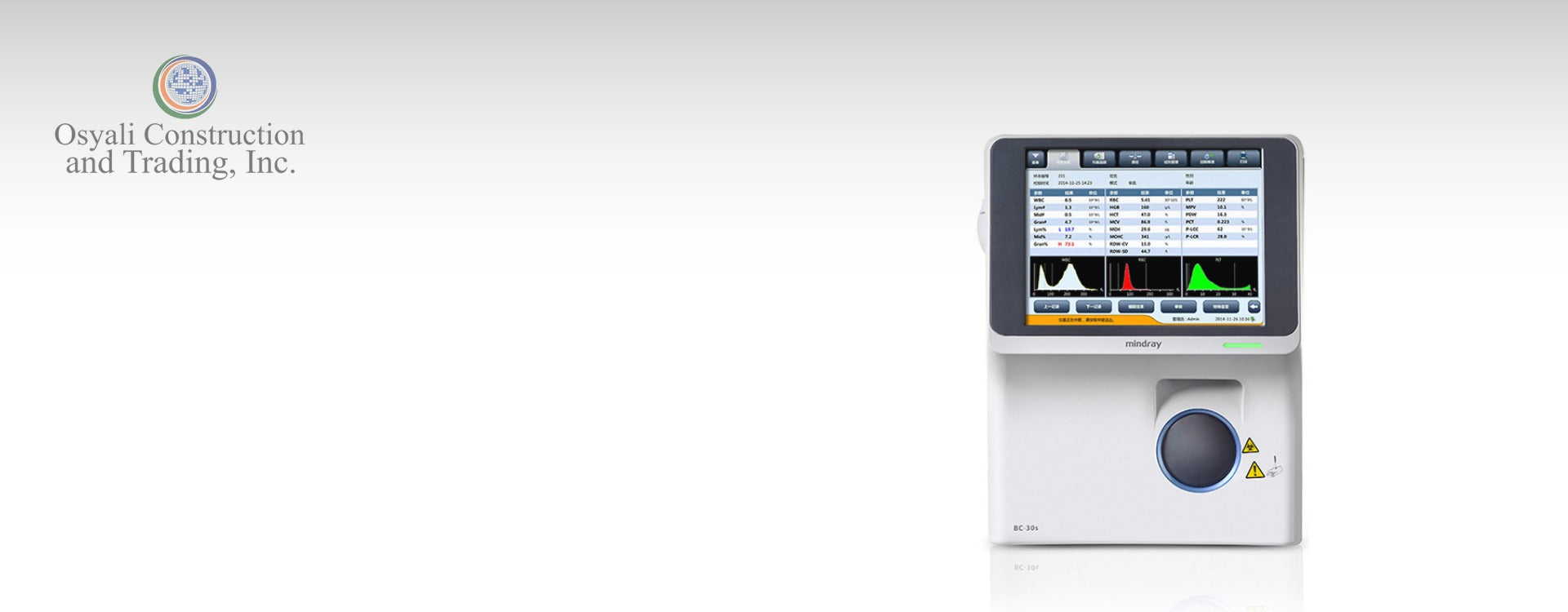

Mindray BC-30 Hematology Analyzer (3-Part Diff)
Official distributor · Mindray
Mindray BC-30 Hematology Analyzer (3-Part Diff)
- Full CBC + 3-part WBC differential (21 parameters, 3 histograms) from a small benchtop unit ideal for space-limited PH clinics and small labs
- Micro sample volume of just 9 uL whole blood, useful for limited-draw or pediatric/capillary samples
- Up to 60 samples/hour throughput keeps routine hematology moving without a large-lab footprint or price tag
- Only 3 reagents and open-vial sampling simplify daily operation and lower consumable overhead
- Bi-directional LIS/HL7 connectivity plus local Osyali installation, training, and after-sales service backing every unit
Request a Quote
Official pricing · warranty · nationwide installation
You get a partner, not just a machine
More Mindray equipment
Specifications & details+
The Mindray BC-30 Auto Hematology Analyzer is a compact, fully automated 3-part differential (3-DIFF) blood cell counter built for small to mid-sized clinical laboratories, clinics, and hospital departments. It performs a complete blood count (CBC) with a 3-part white blood cell differential, reporting 21 parameters and 3 histograms (WBC, RBC, and PLT) from a single small-volume sample, making it well suited to facilities that need reliable routine hematology in a small benchtop footprint.
Designed for laboratories in the Philippines that value space efficiency and simple operation, the BC-30 uses the impedance method for WBC, RBC, and platelet counting and a cyanide-free reagent for hemoglobin measurement. It requires only three reagents and supports open-vial sampling, with a micro sample volume of just 9 µL of whole blood, which is helpful when working with limited or pediatric capillary samples.
Key features and specifications
- Differential: CBC + 3-part differential; 21 reported parameters plus 3 histograms (WBC, RBC, PLT).
- Reported parameters: WBC, Lymph#, Mid#, Gran#, Lymph%, Mid%, Gran%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT, P-LCR, P-LCC.
- Measurement principles: Impedance method for WBC, RBC, and PLT counting; cyanide-free reagent for hemoglobin (HGB) testing.
- Throughput: Up to 60 samples per hour.
- Sample volume: 9 µL (whole blood mode); 20 µL (prediluted mode); open-vial sampling.
- Reagents: Three-reagent system (diluent, lyse, and probe cleanser).
- Display: 10.4-inch TFT color touch screen.
- Data storage: Large onboard storage for sample results with numeric and graphical (histogram) information.
- Connectivity: LAN port with HL7 protocol support and bi-directional LIS connectivity; four USB ports for external printer, barcode reader, keyboard, mouse, and software upgrades.
- Power supply: 100–240 V (±10%), 50/60 Hz.
- Quality control: Compatible with original Mindray QC materials, calibrators, and reagents.
What's included & service
Each unit is supplied as a benchtop analyzer with its standard accessory set and operator documentation. As an authorized Philippine distributor, Medisense (Osyali Construction & Trading, Inc.) provides local supply of genuine Mindray reagents, controls, and calibrators, along with installation, operator orientation, preventive maintenance, calibration, and after-sales technical support. Contact our team for current pricing in Philippine Peso (PHP), reagent packages, and a configuration matched to your laboratory's workload.
Dimensions
300 mm (W) x 410 mm (D) x 400 mm (H); weight ≤ 20 kg
Supplied by Osyali Construction & Trading, Inc., an authorized Mindray distributor in the Philippines. Installation, training, and after-sales service available.
