Perlove PLD5900A Floor mounted Digital X-ray machine
- 50 kW high-frequency generator with wide 40-150 kV / 10-630 mA output range covers general radiography across chest, abdomen, spine, and extremities
- 17" x 17" flat-panel detector (3072 x 3072 matrix, 139 um pixel pitch) delivers high-resolution digital image acquisition, replacing film or CR workflows
- Low ~35 cm minimum tube-to-floor height enables standing, weight-bearing foot and ankle radiography plus a wide range of orthopedic projections
- Flexible bucky table options (mobile, fixed, or motorized lifting to ~50 cm) and single/dual, mobile or wireless detector configurations adapt to different room layouts
- Sold as a complete set with computer, backed by authorized Osyali (Osyali Construction & Trading, Inc.) distribution with delivery, installation, training, and after-sales service in the Philippines
Request a Quote
Official pricing · warranty · nationwide installation
You get a partner, not just a machine
More Perlove equipment
Specifications & details+

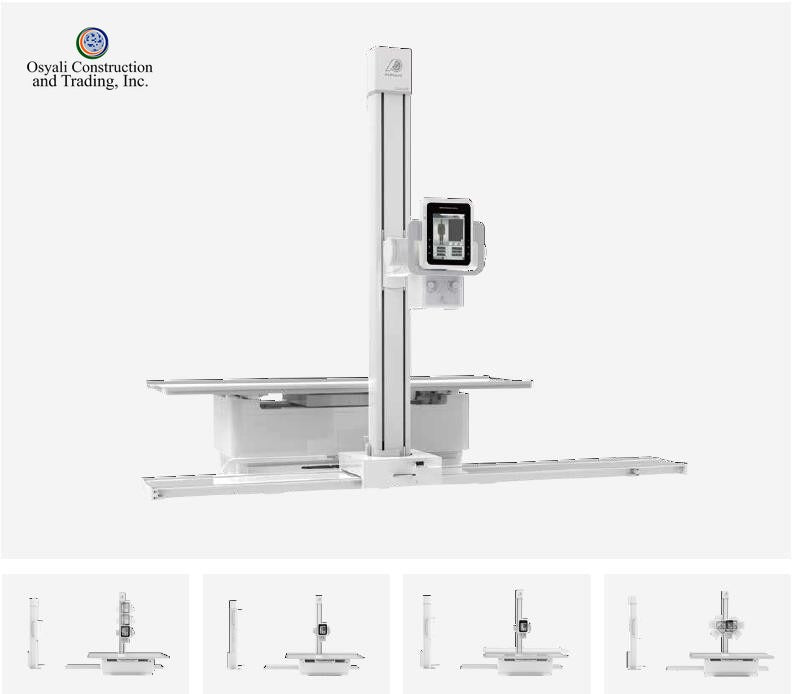

The Perlove PLD5900A is a floor mounted digital X-ray machine manufactured by Nanjing Perlove Medical Equipment Co., Ltd. It pairs a floor-anchored tube stand with a high-frequency X-ray generator and a flat-panel detector to acquire digital radiographs of the chest, abdomen, spine, pelvis, skull, and the upper and lower extremities. It is intended for hospitals, diagnostic imaging centers, orthopedic clinics, and medical examination facilities that need a fixed general-radiography room with digital image acquisition in place of film or CR.
A defining feature of this floor-mounted configuration is its low minimum tube position (approximately 35 cm from the floor), which supports radiography of the foot and ankle in a standing, weight-bearing position along with a wide range of standing and orthopedic projections.
Key features and specifications
- Generator: high-frequency inverter generator, 50 kW output, inverter frequency 25 kHz (±10%).
- Output range: tube voltage 40–150 kV; tube current 10–630 mA; exposure time 1–6300 ms; 0.1–200 mAs.
- X-ray tube: rotating-anode tube with dual focal spots 0.6 mm (fine) / 1.2 mm (broad); anode input power 20 kW (fine focus) / 50 kW (broad focus); anode heat content 300 kHU.
- Flat-panel detector: Venu1717X, 427 mm × 427 mm (17″ × 17″) effective area; 3072 × 3072 active matrix; 139 µm pixel pitch; 3.6 lp/mm spatial resolution; 16-bit A/D conversion.
- Detector options: mobile or wireless detector configurations; single- or dual-detector setups available.
- Bucky table options: mobile, fixed, or motorized lifting table (lifting table lowers to a minimum height of approximately 50 cm).
- Positioning: floor-mounted tube column with a low minimum tube-to-floor height (~35 cm) for weight-bearing ankle and lower-limb imaging.
- Power supply: 220 VAC (±10%), 50 Hz.
What's included
This listing is supplied as a complete set with computer. A typical configuration comprises the high-frequency generator and operator console, the floor-mounted X-ray tube stand and tube assembly, the flat-panel detector, a bucky table (mobile, fixed, or lifting), the acquisition workstation/computer, and digital image processing software. Exact detector and table options are confirmed per order.
Dimensions
Not published by the manufacturer for this model. Perlove's floor-mounted PLD series page lists shared configuration details (minimum tube-to-floor height, bucky table lift range) but does not publish system footprint or weight figures specific to the PLD5900A. Contact us for exact room-planning and installation dimensions before renovation or site preparation.
Authorized distributor
Osyali Construction & Trading, Inc. is an authorized Osyali (Medisense) distributor of Perlove imaging systems in the Philippines, supplying the PLD5900A with delivery, installation, training, and after-sales service in the Philippines. Request a quotation for the configuration that suits your facility.
