Perlove PLD7600C(65KW) Ceiling suspended Digital X-ray machine (Dynamic Detector)
Official distributor · Perlove
Perlove PLD7600C(65KW) Ceiling suspended Digital X-ray machine (Dynamic Detector)
- Ceiling-suspended gantry gives radiographers full-room flexibility for table, chest-stand, wheelchair, and trolley positioning
- 65KW high-frequency generator paired with a dynamic flat-panel detector supports both static radiography and dynamic imaging up to 30 fps
- 18-megapixel static capture at up to 5.0 lp/mm spatial resolution for detailed general-purpose radiography
- Low-position imaging (detector down to 35 cm from floor) covers extremity views like knee and ankle without extra positioning aids
- Supplied as a complete set with computer/workstation, backed by authorized local installation, training, and after-sales service
Request a Quote
Official pricing · warranty · nationwide installation
You get a partner, not just a machine
More Perlove equipment
Specifications & details+
The Perlove PLD7600C (65KW) is a ceiling-suspended digital X-ray machine built around a dynamic flat-panel detector. The X-ray tube assembly is mounted on a ceiling-suspended gantry that travels across the room, allowing radiographers to position the tube freely over a patient table, a wall (chest) stand, a wheelchair, or a trolley. It is intended for general-purpose radiography and dynamic imaging across a wide range of body regions, and is suited to hospital radiology departments, imaging centers, and clinics in the Philippines that require flexible, multi-position imaging.
Key features and specifications
- Ceiling-suspended gantry with motorized and manual movement modes, and a tube column that travels over a wide longitudinal range for table, standing, and low-position work.
- High-frequency inverter high-voltage generator in a 65KW configuration.
- Imported dual-focus X-ray tube with high-speed rotating anode and large heat capacity.
- Dynamic flat-panel detector with a 100-micron pixel pitch, supporting dynamic image acquisition at up to 30 frames per second.
- Static radiographic capture of up to 18 million effective pixels with a spatial resolution up to 5.0 lp/mm.
- Two-way automatic tracking of tube and detector with motorized changeover between the chest stand and table positions, and full-range tube rotation for angled projections.
- Low-position imaging, with the detector center positioned at least 35 cm from the floor, supporting projections such as knee and ankle views.
- 10.4-inch touch-screen control at the tube head for bedside parameter setup, with an automated (motorized) collimator/beam limiter.
- Optional capabilities: automatic exposure control (AEC), automatic image stitching, and dose-area-product (DAP) dose monitoring for recording radiation dose per examination.
- Bucky table options: mobile type or lifting type; the lifting table lowers to a minimum height of about 56 cm to assist patient access.
What's included

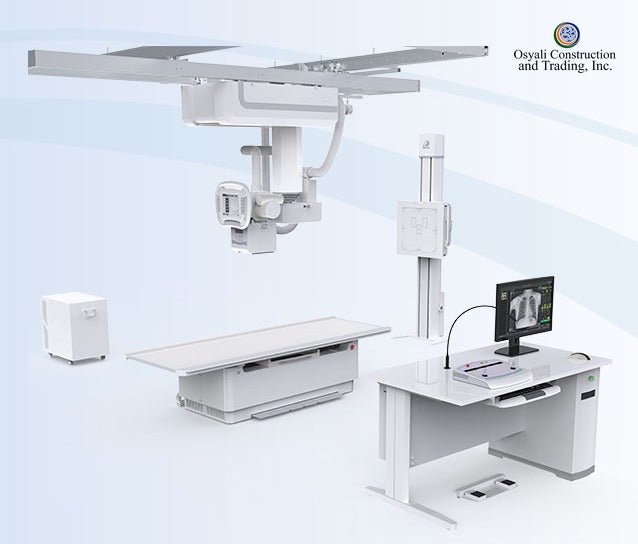

Supplied as a complete set with computer: the ceiling-suspended tube/column gantry, the X-ray tube assembly with automated collimator, the 65KW high-frequency high-voltage generator, the dynamic flat-panel detector, a bucky table (mobile or lifting), a wall/chest stand, and the acquisition workstation with imaging software. Final configuration and accessories are confirmed per order.
Dimensions
Not published by the manufacturer. Room layout, ceiling-rail run, and installation clearances are assessed on-site during project planning.
Distribution and service
Supplied by Osyali Construction & Trading, Inc., an authorized Osyali (Osyali Construction & Trading, Inc.) distributor of Perlove imaging equipment in the Philippines — delivery, installation, training, and after-sales service. Site preparation and ceiling-rail requirements are coordinated with your facility ahead of installation, and the unit is supplied for use by qualified, licensed personnel. Installation and use are subject to applicable Philippine FDA and radiation-safety (PNRI/FDA-RHRRSO) registration and licensing requirements. Contact us for a formal quotation.
