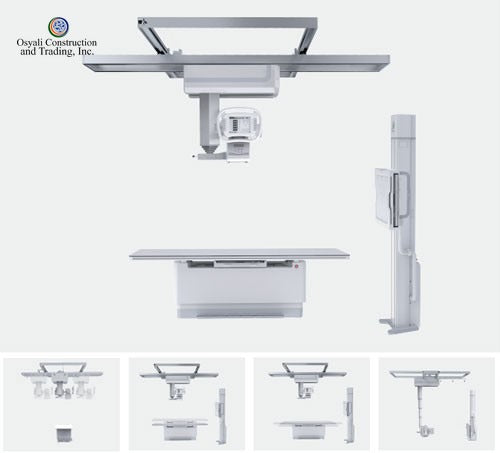

Perlove PLD7100G(85KW) Ceiling suspended Digital X-ray machine (Static Detector)

The Perlove PLD7100G (85KW) Ceiling Suspended Digital X-ray Machine is a ceiling-mounted digital radiography (DR) system built around a static (fixed) flat panel detector and an 85kW high-voltage generator. The X-ray tube is carried on an overhead telescopic column that travels along ceiling rails, giving the radiographer wide reach across an elevating patient table and a vertical wall (bucky) stand. It is designed for hospitals, diagnostic imaging centres, and clinics in the Philippines that need a fixed-room general radiography system for routine and high-throughput imaging.

Who it is for

Radiology departments and imaging facilities performing general radiographic examinations across a range of patient positions, including chest, abdominal, spine, pelvic, extremity, and orthopaedic projections. The ceiling-suspended design frees floor space and supports both table and upright imaging from a single tube.

Key features and specifications

• System type: Ceiling-suspended digital radiography (DR) system with overhead rail-mounted tube column.
• Generator: 85kW class high-voltage generator (per the PLD7100G model designation).
• Detector: Static (fixed) flat panel detector. An optional hundred-micron configuration provides a 4K x 4K acquisition matrix and 100 um pixel size for fine image detail.
• Intelligent tube and detector tracking: Synchronised vertical travel of the X-ray tube and bucky unit for fast positioning, with one-button automatic tracking.
• Tube movement: Motorised (electric) vertical control and manual/electric horizontal control, with free rotation of the X-ray tube for angled projections.
• Focal-spot tracking: The focal point of the X-ray tube automatically aligns to the detector during positioning.
• Dose information: Automatic exposure control and real-time DAP (dose area product) monitoring to display the dose level of an exposure.
• Operator control: LCD touch screen to control SID (source-to-image distance) movement and tube rotation; emergency/quick-exposure mode for fast examinations.
• Patient support: Elevating (height-adjustable) radiographic table and a multidimensional vertical bucky stand, with automatic switching between table and wall-stand imaging.

What is included

• Ceiling-suspended X-ray tube assembly with telescopic column and ceiling rail set.
• 85kW class high-voltage generator and X-ray tube.
• Static flat panel detector.
• Elevating radiographic table and vertical bucky stand.
• Operator workstation with acquisition software and LCD touch-screen control.

Installation and service in the Philippines

Supplied by Medisense / Osyali Construction and Trading, Inc., an authorized Philippine distributor of Perlove medical imaging equipment. Site planning, delivery, installation, and commissioning are coordinated locally, along with calibration, preventive maintenance, repair, and spare parts through Osyali's engineering services. Final configuration (detector option, table, and accessories) and pricing in PHP are confirmed per quotation. Please contact Medisense for a site assessment and a formal quotation.

Supplied by Osyali Construction & Trading, Inc., an authorized Perlove distributor in the Philippines. Installation, training, and after-sales service available.
