Perlove PLD7600J(85KW) Ceiling suspended Digital X-ray machine (Dynamic Detector)
Official distributor · Perlove
Perlove PLD7600J(85KW) Ceiling suspended Digital X-ray machine (Dynamic Detector)
- Ceiling-suspended gantry frees floor space and lets the tube travel across the full exam area
- Dynamic flat-panel detector captures up to 30 fps for fluoroscopy/angiography plus up to 18MP static radiography
- Two-way automatic tube/detector tracking with auto focusing speeds up positioning and workflow
- 10.4-inch touch-screen workstation with optional AEC and DAP dose monitoring for exam-level dose tracking
- Complete set with computer, backed by Osyali's local installation, training, and after-sales service
Request a Quote
Official pricing · warranty · nationwide installation
You get a partner, not just a machine
More Perlove equipment
Specifications & details+
The Perlove PLD7600J (85 kW) is a ceiling-suspended digital X-ray machine with a dynamic flat-panel detector, manufactured by Nanjing Perlove Medical Equipment and supplied in the Philippines by Medisense (Osyali Construction & Trading, Inc.). The X-ray tube assembly is mounted on a ceiling rail gantry rather than a floor column, freeing floor space and allowing the tube to travel across the full examination area. It is intended for hospitals, diagnostic imaging centers, and radiology departments performing general radiographic, fluoroscopic, and angiographic imaging across a range of patient positions.
Key features and specifications
- Configuration: Ceiling-suspended (overhead rail) gantry with motorized tube travel and a wall-mounted (Bucky) stand.
- High-voltage generator: High-power, high-frequency generator configured at 85 kW.
- Dynamic flat-panel detector: 139 µm / 100 µm pixel pitch dynamic detector supporting image capture at up to 30 frames per second.
- Static radiography: Up to 18 million effective pixels, with spatial resolution up to 3.7–5.0 lp/mm.
- Imaging modes: Digital radiography, digital fluoroscopy, and digital angiography.
- Two-way automatic tracking: The X-ray tube and detector track together automatically in both directions, with automatic focusing on the detector.
- Control: 10.4-inch touch-screen control system with an intelligent acquisition workstation and measurement tools.
- Radiation dose management: Optional automatic exposure control (AEC) and DAP (dose-area-product) monitoring that records the dose of each examination.
- Optional functions: Auto collimator, automatic image stitching (long-length imaging), and standardized dual-grid support.
- X-ray tube: High heat capacity with high-speed anode rotation for sustained workflow.
Table and positioning
- Two Bucky table options: mobile type and lifting (height-adjustable) type.
- Lifting table lowers to a minimum height of approximately 56 cm for easier patient transfer.
- Flat-panel detector center can be positioned a minimum of approximately 35 cm from the floor.
What's included

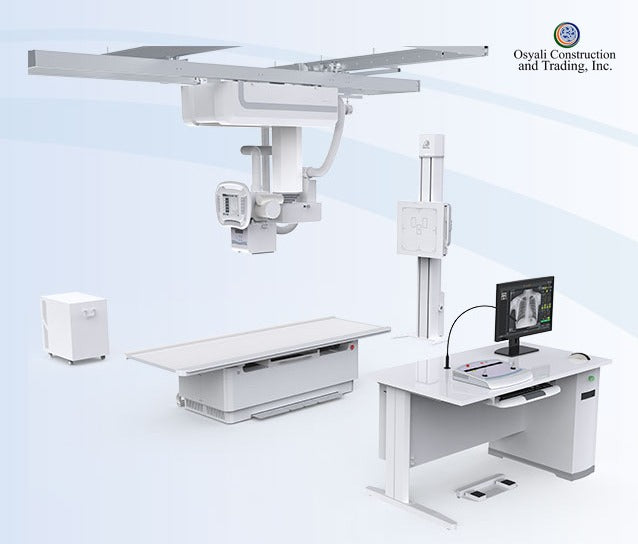

Complete set with computer — the standard package includes the ceiling-rail X-ray tube gantry, the 85 kW high-voltage generator, the dynamic flat-panel detector, a wall (Bucky) stand, a Bucky table (mobile or lifting), and the acquisition workstation computer with touch-screen control.
Dimensions
Not published by the manufacturer. As a ceiling-mounted system, the PLD7600J requires a prepared imaging room with adequate ceiling height and structural support for the overhead rails; exact room-size and gantry-dimension requirements will be confirmed during site planning ahead of installation.
Installation & service
Medisense provides delivery, site planning, professional installation, operator orientation, and after-sales engineering support in the Philippines, including preventive maintenance, calibration, repair, and spare parts. Final configuration, accessories, and specifications should be confirmed on quotation. This device is distributed in accordance with applicable Philippine FDA requirements.
Supplied by Osyali Construction & Trading, Inc., an authorized Osyali (Osyali Construction & Trading, Inc.) distributor — delivery, installation, training, and after-sales service in the Philippines.
