Medsinglong MSLCV32 17*17 wired panel detector | Panel detector

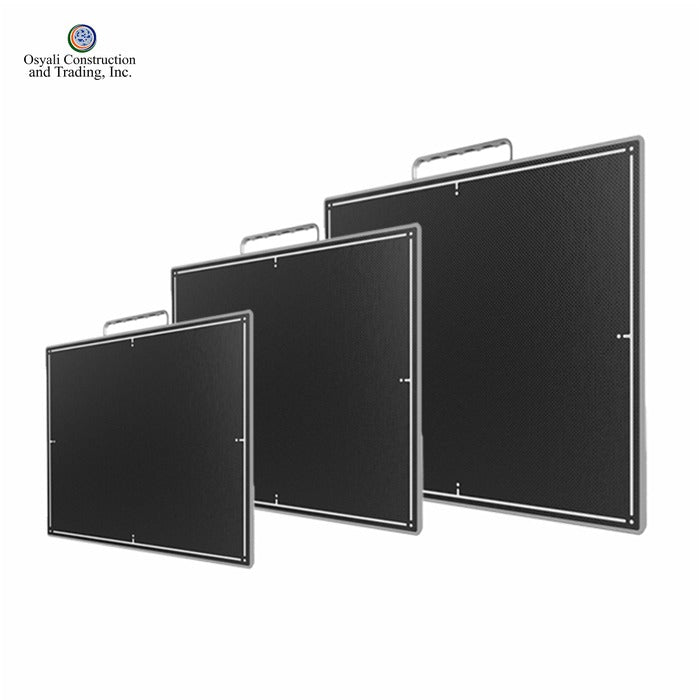

The Medsinglong MSLCV32 is a 17×17″ cassette-size wired digital flat panel detector (FPD) for general radiography. It converts X-rays into high-resolution digital images that are sent over a cabled Gigabit Ethernet connection to an imaging workstation, allowing a clinic to replace conventional film/screen and CR cassettes with a direct digital radiography (DR) workflow. It is built for human and veterinary radiographic imaging in hospitals, clinics, diagnostic centres, and veterinary practices across the Philippines that want a fixed, reliable tethered detector for their existing X-ray source.

Because the MSLCV32 uses a wired connection, image data is transferred through the cable and the unit is powered through its connection box, making it well suited to a dedicated room or table/wall bucky setup where the detector stays in place. The cassette-size form factor fits standard 17×17″ bucky trays, so it can be retrofitted to many existing radiography stands without replacing the whole system.

Key features and specifications

• Detector type: Amorphous silicon (a-Si) flat panel detector with caesium iodide (CsI) scintillator for general radiographic imaging.
• Image/cassette size: 17×17 inch, cassette format.
• Active imaging area: approximately 430 mm × 430 mm.
• Pixel matrix: approximately 3072 × 3072 pixels.
• Pixel pitch: approximately 139–140 µm.
• Spatial resolution: approximately 3.5–3.7 line pairs/mm.
• A/D conversion: 16-bit grayscale.
• Image acquisition/preview: preview image in approximately 5 seconds.
• Connection: wired, Gigabit Ethernet via the connection/power box.
• Detector weight: approximately 4.6 kg.
• Detector dimensions: approximately 460 × 460 × 45 mm.
• Storage conditions: temperature −20 to 55 °C; relative humidity 10–90% (non-condensing).
• Use: intended for general radiographic imaging of human and veterinary anatomy; not intended for mammography.

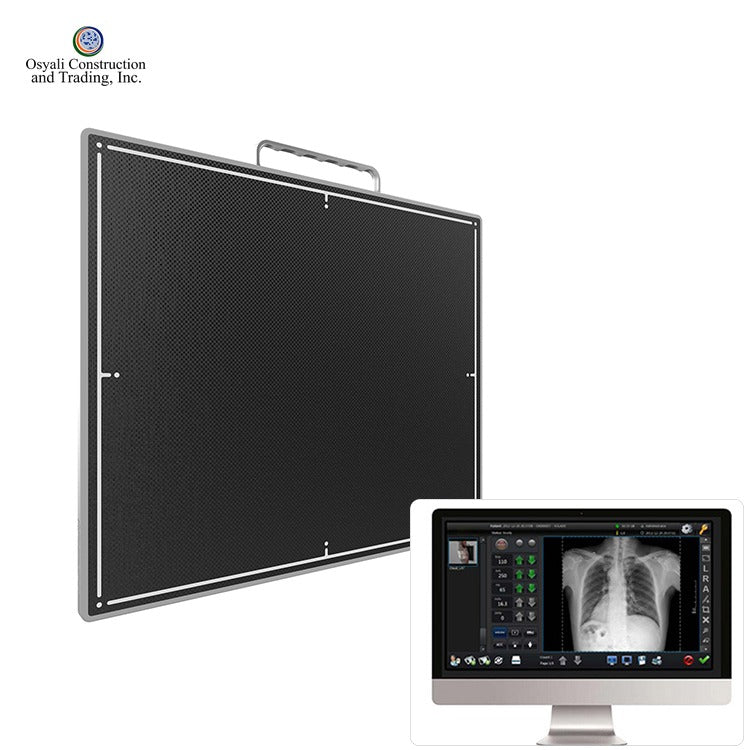

The captured images are reviewed by a qualified radiographer or physician using compatible DICOM acquisition/workstation software; the detector provides the digital image and does not itself interpret findings.

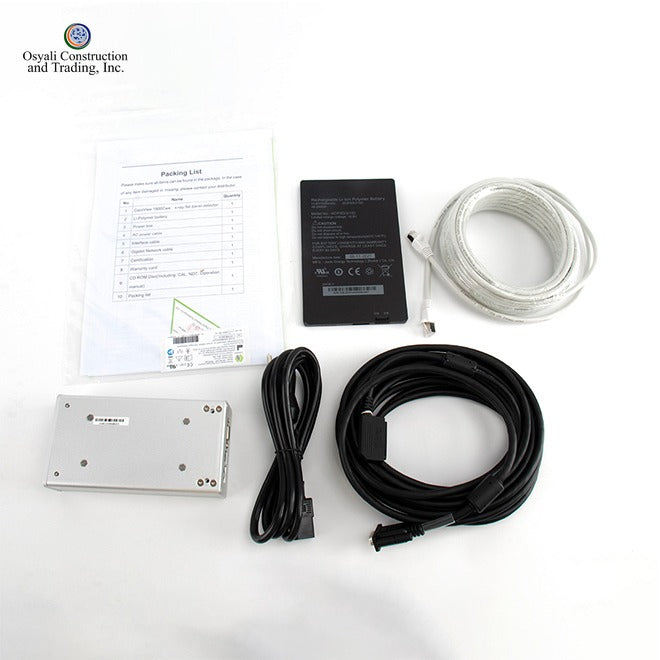

What is included

• MSLCV32 17×17″ wired flat panel detector
• Connection/power box
• AC power cable and interface cable
• Gigabit Ethernet (network) cable
• DICOM acquisition/workstation software (CD-ROM) and operation manual
• Certification documents and warranty card

Installation and service

Medisense (Osyali Construction & Trading, Inc.) supplies the MSLCV32 with delivery, installation support, and connection to a compatible X-ray generator and workstation in the Philippines. Engineering services are available, including installation, calibration, preventive maintenance, repair, and spare parts. For pricing in Philippine Peso (PHP), stock availability, demo, and configuration with your existing X-ray system, please contact Medisense.

Dimensions

Detector: approx. 460 x 460 x 45 mm (W x D x H), weight approx. 4.6 kg. Active imaging area approx. 430 x 430 mm. Shipping carton: approx. 67 x 58 x 15 cm.

Supplied by Osyali Construction & Trading, Inc., an authorized Medsinglong distributor in the Philippines. Installation, training, and after-sales service available.
