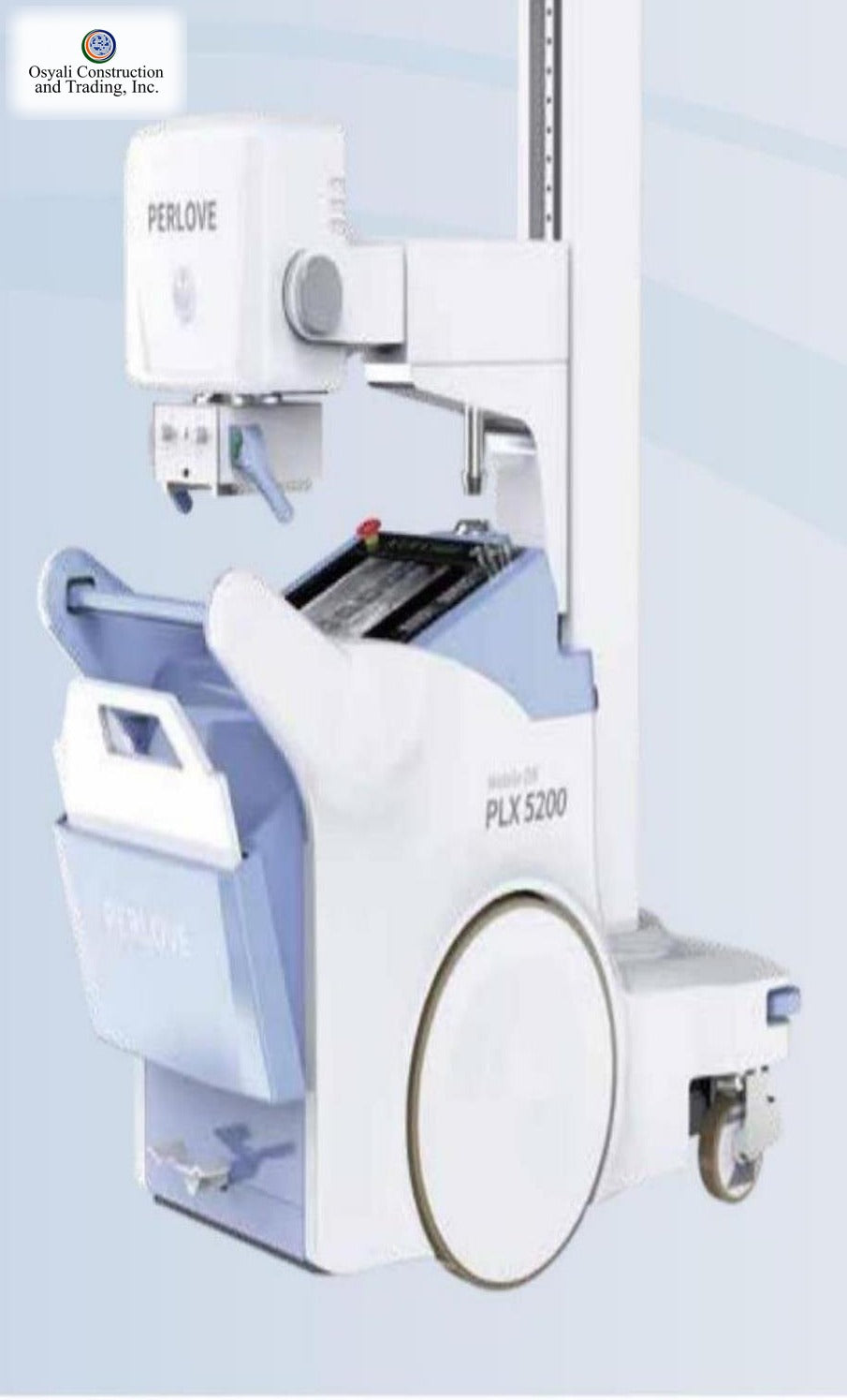

Perlove PLX5200 Mobile Digital X-ray machine (25KW)

The Perlove PLX5200 Mobile Digital X-ray Machine (25 kW) is a self-propelled, battery-powered mobile digital radiography (DR) system manufactured by Nanjing Perlove Medical Equipment Co., Ltd. It is designed for bedside and point-of-care radiographic imaging where patients cannot easily be moved to a fixed X-ray room. The unit is intended for hospital wards, intensive care and neonatal units, operating theatres, emergency departments, and isolation areas. For Philippine facilities, Medisense supplies, installs, and services the PLX5200 as an authorized distributor (pricing in PHP, quoted on request).

What it is

The PLX5200 combines a 25 kW high-frequency X-ray generator, a motorized mobile column platform, and a wireless flat-panel detector on a single compact chassis. The system captures digital radiographic images at the bedside and sends them directly to the integrated workstation for review, supporting a film-free, network-ready (PACS/DICOM) workflow.

Key features and specifications

• X-ray generator: 25 kW high-frequency generator; main inverter frequency 60 kHz.
• Tube current / voltage: 200 mA output; tube voltage range 40–125 kV.
• Exposure range: 0.4–360 mAs.
• X-ray tube: rotating-anode, dual-focus design (small focus 0.6 mm / large focus 1.3 mm); anode thermal capacity approximately 1200 kJ (1200 KHU).
• Detector: 14×17 inch wireless flat-panel detector (cesium-iodide / amorphous-silicon); 3k×3k pixel matrix; 16-bit grayscale output.
• Power system: dual power design—a supercapacitor that stores energy for radiographic exposures plus a high-capacity lithium battery pack for cordless operation and motorized movement; charges from a standard 110 V/220 V outlet.
• Mobility: dual-motor powered drive for motorized forward/reverse and steering; column rotation up to ±180°.
• Positioning: ultrasonic distance-measuring beam limiter (collimator) to assist source-to-image distance setup; horizontally extending arm.
• Software & connectivity: integrated acquisition workstation with image processing; DICOM-compatible output for PACS/RIS environments.
• Compliance: manufactured under ISO 13485 and CE marked; the PLX5200A platform holds a U.S. FDA 510(k) clearance (K212134).

What is included

• Mobile DR unit with 25 kW high-frequency generator and dual-focus X-ray tube
• 14×17 inch wireless flat-panel detector with rechargeable battery
• Acquisition workstation with imaging software and display
• Supercapacitor and lithium battery power system with mains charger
• Manufacturer documentation and standard accessories

Exact package contents are confirmed per order and configuration.

Installation and service in the Philippines

Medisense (Osyali Construction & Trading, Inc.) provides delivery, installation, and commissioning, plus engineering services including preventive maintenance, calibration, repair, parts supply, and operator orientation. Contact Medisense for a formal quotation in PHP, lead time, warranty terms, and applicable Philippine FDA registration and radiation-facility licensing requirements.

Supplied by Osyali Construction & Trading, Inc., an authorized Perlove distributor in the Philippines. Installation, training, and after-sales service available.
