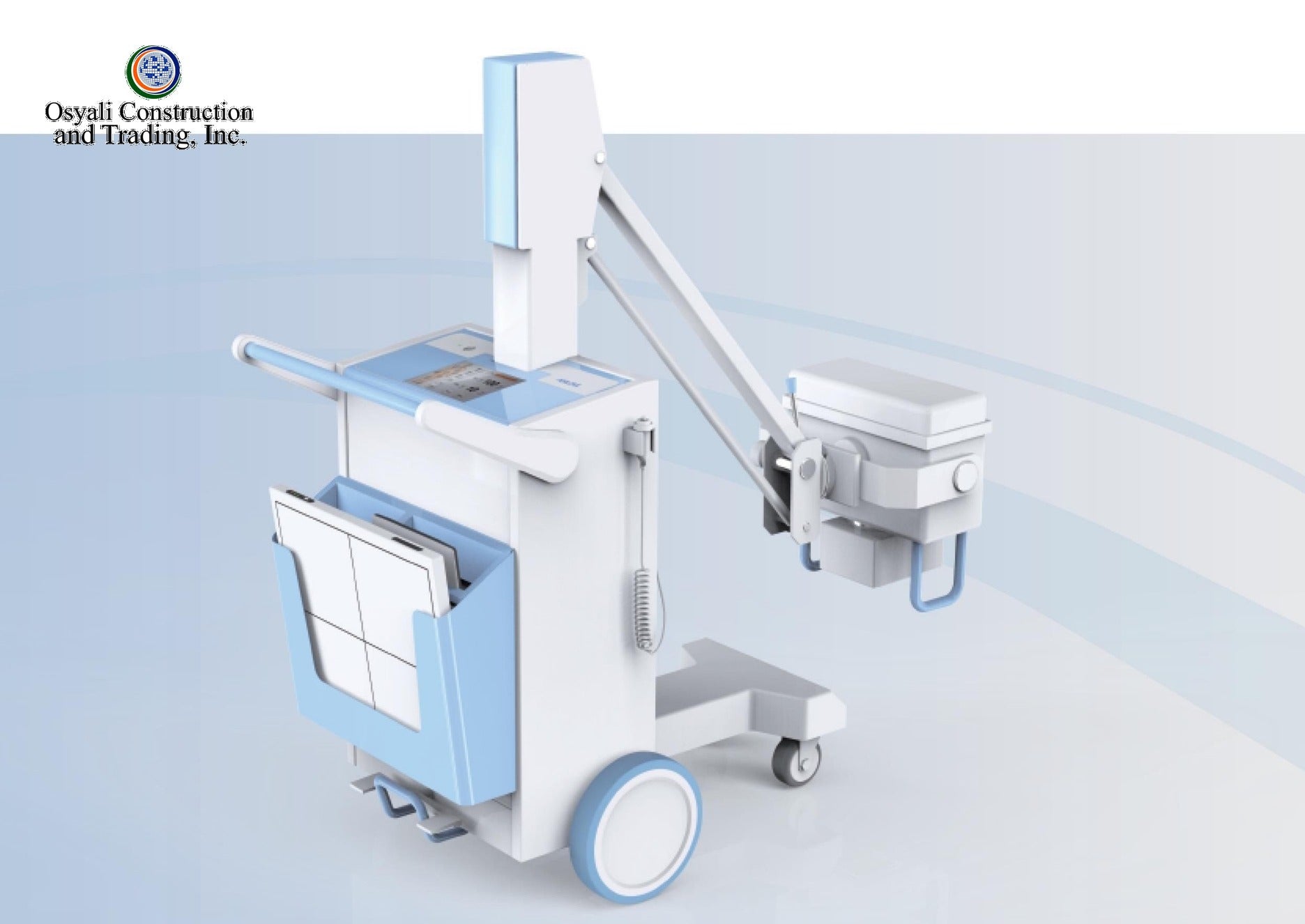

Perlove PLX5100 Mobile Digital X-ray machine WITH battery

The Perlove PLX5100 Mobile Digital X-ray Machine (with battery) is a high-frequency, battery-powered mobile digital radiography (DR) system from Nanjing Perlove Medical Equipment Co., Ltd. It is designed for bedside and point-of-care radiographic imaging, allowing radiographers to bring digital X-ray capability directly to the patient instead of transporting the patient to a fixed radiology suite.

Built for hospitals and clinics in the Philippines, the PLX5100 is intended for use in the radiology department, orthopedics, wards, the emergency room, the operating room, and the ICU. Its compact 62 cm body width lets it pass through narrow corridors and doorways, and the onboard battery supports operation where a continuous mains connection is not convenient.

Key Features

• Battery-powered mobile DR platform with onboard power for cordless positioning and bedside exposures.
• High-frequency inverter X-ray generator for stable output across the exposure range.
• Wireless flat-panel detector using a cesium iodide (CsI) scintillator, 430 mm x 430 mm imaging area, spatial resolution of no less than 2.8 lp/mm.
• Motorized column and multi-axis tube arm: the rocker arm moves up and down and the tube assembly rotates through multiple angles to support a wide range of projections.
• DR acquisition workstation with dedicated image acquisition and processing software and DICOM connectivity for integration with PACS and hospital imaging networks.
• Dislocation brake system for stable, secure parking and braking during transport and positioning.
• Lightweight chassis (whole machine under approximately 155 kg) for maneuverability between departments and bed spaces.

Technical Specifications

• Tube voltage range: 40-120 kV (nominal 120 kV)
• Tube current: 100 mA (nominal)
• Exposure range: 1.0-250 mAs
• Focal spot sizes: 0.6 / 1.8
• Detector: Wireless CsI digital flat panel, 430 mm x 430 mm, resolution no less than 2.8 lp/mm
• Source-to-image distance (SID): 50-170 cm
• Net weight: approximately 155 kg
• Overall dimensions: 1450 mm x 650 mm x 1350 mm (L x W x H); body width approximately 62 cm

What's Included, Installation & Service

The system is supplied as a complete mobile DR unit: the mobile X-ray stand with high-frequency generator and tube assembly, the wireless flat-panel detector, and the DR acquisition workstation with imaging and DICOM software. Onboard battery operation is included as standard on this configuration.

As an authorized Philippine distributor, Medisense (Osyali Construction & Trading, Inc.) provides delivery, installation, and commissioning, operator orientation, and after-sales engineering support including preventive maintenance, calibration, repair, and spare parts. Pricing is quoted in Philippine Peso (PHP); contact us for a formal quotation, lead time, and warranty terms.

Dimensions

Overall: 1450 mm (L) x 650 mm (W) x 1350 mm (H); body width approx. 62 cm. Net weight approx. 155 kg.

Supplied by Osyali Construction & Trading, Inc., an authorized Perlove distributor in the Philippines. Installation, training, and after-sales service available.
