Perlove PLX119C C-Arm system with Dynamic detector

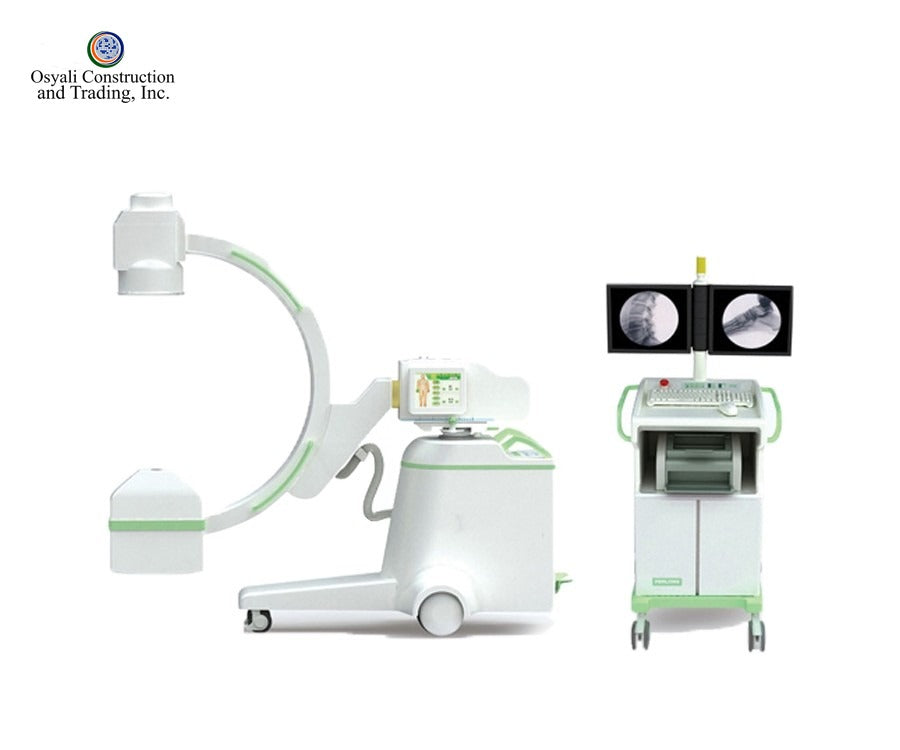

The Perlove PLX119C (Wiseye PLX119C) is a mobile, all-in-one surgical C-arm X-ray system built around a large 30 cm × 30 cm dynamic flat-panel detector. It is intended to be used and operated by adequately trained, qualified and authorized healthcare professionals for radiological guidance and visualization during diagnostic, interventional and surgical procedures. The system is designed for hospitals, surgical centers and clinics in the Philippines performing orthopedic, trauma, spine, joint and pain-management procedures, both inside and outside the operating room.

Manufactured by Nanjing Perlove Medical Equipment Co., Ltd., the PLX119C integrates the C-arm gantry and imaging workstation into a single compact frame that occupies roughly 1 m² of floor space, making it suitable for size-constrained operating rooms. Medisense supplies the PLX119C as an authorized Philippine distributor (Osyali Construction & Trading, Inc.).

Key features and specifications

• Large dynamic flat-panel detector: 30 cm × 30 cm (12" × 12") amorphous-silicon detector with a cesium-iodide scintillator; the imaging area is approximately 100% larger than a conventional 9" × 9" FPD, allowing a wider anatomical field in a single acquisition (for example, capturing five lumbar vertebrae or covering the pelvic region in one image).
• Image quality: 1956 × 1956 pixel matrix (approximately 3.8 megapixels), 154 µm pixel pitch and 16-bit analog-to-digital conversion for a wide gray-scale and dynamic range.
• High-frequency high-voltage generator: Perlove’s own high-frequency generator with output power of up to 25 kW.
• X-ray tube: fixed-anode tube, 15° anode target angle, dual focal spots of 0.6 / 1.8 mm.
• Fluoroscopy range: 40–120 kV and 0.3–100 mA, with pulsed fluoroscopy and automatic brightness stabilization (ABS).
• C-arm geometry: 1000 mm source-to-image distance (SID); ±180° orbital (rail) rotation; ±15° swing-arm rotation; 200 mm horizontal (FR-arm) travel; 400 mm vertical (T-arm) travel; motorized, rotating collimator.
• Direct digital imaging: the dynamic FPD captures images directly without optical/camera conversion, helping to avoid information loss during image formation.
• Integrated workstation: all-in-one cart combining the gantry, generator and image-processing workstation with on-board monitor display.

Regulatory and safety standards

• Classified by the U.S. FDA as an image-intensified fluoroscopic X-ray system (21 CFR 892.1650, Class II, product code OWB); the PLX119C received FDA 510(k) clearance (K243411, May 19, 2025).
• Tested to IEC 60601-1-2 (EMC), IEC 60601-2-54, IEC 60601-1-3 and IEC 60601-2-43 safety standards.
• Indicated for use on all patients except neonates (birth to one month), within the limits of the device.

What is included, installation and service

The system is supplied as a complete unit comprising the X-ray source assembly, collimator, 30 cm × 30 cm flat-panel detector, C-arm and mobile base, and the integrated image-processing workstation with medical image workstation software. Medisense provides delivery, professional installation and commissioning, operator orientation, and after-sales engineering support including preventive maintenance, calibration, repair and spare parts within the Philippines. Pricing is quoted in Philippine pesos (PHP); contact Medisense for a formal quotation and configuration options.

Dimensions

No official overall cabinet dimensions or system weight are published by the manufacturer for the PLX119C. Verified C-arm geometry: source-to-image distance (SID) 1000 mm; orbital/rail rotation +/-180 deg; swing-arm rotation +/-15 deg; horizontal (FR-arm) travel 200 mm; vertical (T-arm) travel 400 mm. Active detector area 300 mm x 300 mm. Approximate floor footprint ~1 sq m (manufacturer marketing).

Supplied by Osyali Construction & Trading, Inc., an authorized Perlove distributor in the Philippines. Installation, training, and after-sales service available.
