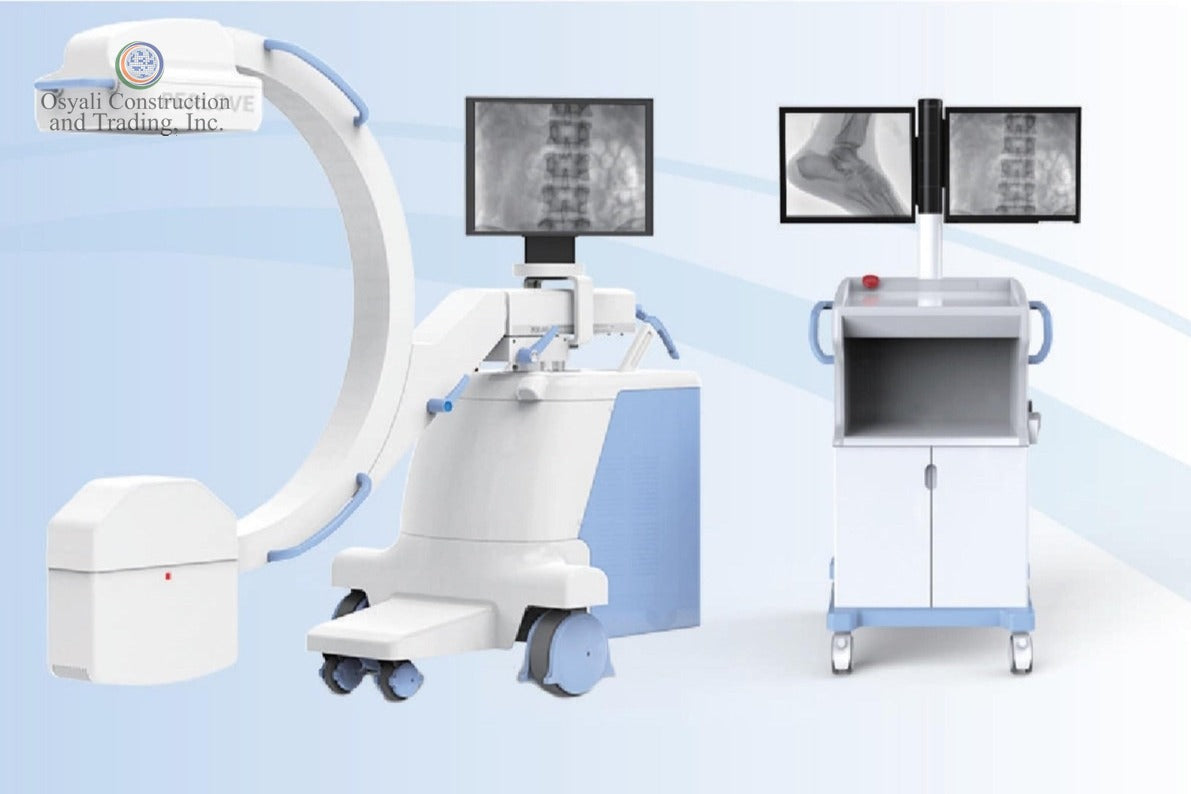

Perlove PLX118F-Plus C-Arm system with Dynamic detector
Official distributor · Perlove
Perlove PLX118F-Plus C-Arm system with Dynamic detector
- 9" x 9" dynamic flat-panel detector gives a ~22% larger viewable field than a conventional 9" image intensifier, with 16-bit grayscale depth for detailed rendering
- 5.0 kW high-frequency generator with variable-frequency pulsed fluoroscopy for reduced-dose imaging
- GPU-based Perlove RCDP platform with APR touch-screen presets and built-in dual-point laser positioning speeds up intraoperative setup and alignment
- Standard DICOM interface for direct connection to hospital PACS for image sharing and remote review
- Complete set with computer — mainframe, generator, detector, workstation, anti-scatter grid, collimator, and three 19" monitors supplied as one package
Request a Quote
Official pricing · warranty · nationwide installation
You get a partner, not just a machine
More Perlove equipment
Specifications & details+
Perlove PLX118F-Plus — C-Arm System with Dynamic Detector
The Perlove PLX118F-Plus is a high-frequency, floor-standing, wheel-mobile C-arm fluoroscopy system built around a 9" × 9" dynamic flat-panel detector (FPD). Manufactured by Nanjing Perlove Medical Equipment Co., Ltd., it is designed for intraoperative real-time X-ray imaging in hospitals, surgical centers, and specialty clinics, supporting orthopaedic procedures (fracture reduction, reset and fixation), general and trauma surgery, and interventional/catheterization workflows such as cardiac catheterization, pacemaker placement, angiography, pain management, and foreign-body localization. Intended for use by trained radiographers, surgeons, and interventional clinicians.
The system pairs a 5.0 kW high-frequency generator with the dynamic flat-panel detector for a square 9"×9" effective imaging field — approximately 22% larger viewable area than a conventional 9" image intensifier — with 16-bit grayscale depth for detailed image rendering. A GPU-based image processing platform (Perlove RCDP — Rapid Calculate Display Platform) handles real-time image processing with variable-frequency pulsed fluoroscopy, and a touch-screen interface with APR (Anatomical Programmed Radiography) presets supports on-unit parameter setup. The system supports a standard DICOM interface for connection to hospital PACS.
Key features and specifications
- Generator: combined high-frequency, high-voltage X-ray generator, 5.0 kW output, main inverter frequency 110 kHz.
- Detector: 9" × 9" dynamic flat-panel detector, 16-bit grayscale depth.
- Tube voltage: 40–120 kV.
- Fluoroscopy (automatic & manual): tube current 0.3–4 mA.
- Pulsed fluoroscopy: up to 30 mA, variable-frequency pulse technology for reduced-dose imaging.
- Radiography: 40–120 kV; 25–100 mA; 1.0–280 mAs.
- X-ray tube: high-frequency tube, fluoroscopy focal spot 0.3; anode thermal capacity 650 kJ (867 kHU).
- C-arm geometry: orbital slide on the arc 135°; rotation around the horizontal axis ±180°; swivel ±15°; forward/backward (horizontal) travel 200 mm; motorized column vertical travel 400 mm; source-to-image distance (SID) 1000 mm; C-arm free (open) space 800 mm; C-arm arc depth 660 mm.
- Positioning: built-in laser positioning at both the X-ray tube and the flat-panel detector.
- Mobility: steerable directional wheel; main wheel rotates ±90°.
- Image software: Perlove RCDP GPU-based real-time processing — last-image hold, real-time acquisition, image storage, windowing, noise reduction, sharpening, zoom, measurement, and annotation.
- Connectivity: standard DICOM interface with PACS connectivity for image sharing and remote review.
- Display: three (3) × 19" medical-grade LCD grayscale monitors.
- Controls: LCD touch-screen interface with APR parameter presets; hand-held controller; dual foot-brake exposure control for use inside and outside the operating area.
What's included
Complete set with computer — this configuration includes:
- C-arm mainframe (1 set)
- Combined high-frequency high-voltage X-ray generator and high-frequency power supply — 5.0 kW, 110 kHz, 120 kV (1 set)
- 9" × 9" dynamic flat-panel detector (1 set)
- Medical mega-pixel ultra-low-illumination digital radiography unit (1 set)
- Digital acquisition and processing workstation with imaging software (1 set)
- Imported anti-scatter grid (1 set)
- Electrically adjustable beam-limiting collimator (1)
- 19" medical LCD grayscale monitors (3 sets)
- Hand-held controller (1 set)
Dimensions
Overall external dimensions and shipping weight are not published by the manufacturer. Key mechanical envelope figures: C-arm free (open) space 800 mm; C-arm arc depth 660 mm; source-to-image distance (SID) 1000 mm; motorized column vertical travel 400 mm; horizontal (forward/backward) travel 200 mm.
Availability and support
Supplied in the Philippines by Osyali Construction & Trading, Inc., an authorized Osyali (Medisense) distributor — delivery, installation, training, and after-sales service in the Philippines. Engineering services include preventive maintenance scheduling (PMS), calibration, repair, and parts supply. Contact Medisense for current lead time and configuration options. Supply and use of medical X-ray equipment in the Philippines are subject to FDA-PH and radiation-safety (licensing) requirements.
