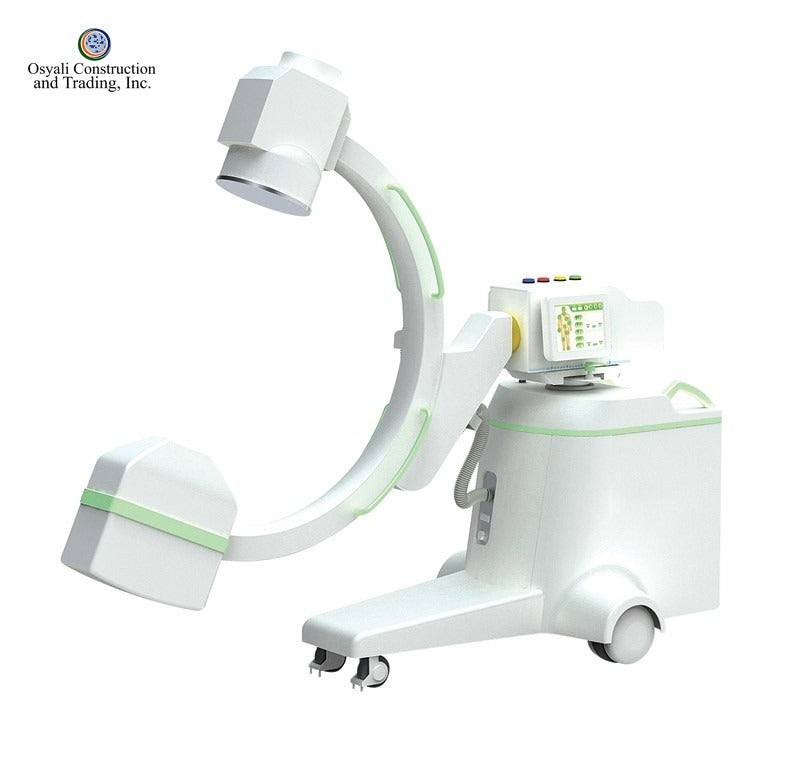

Perlove PLX116B1 High Frequency Mobile C-Arm System

The Perlove PLX116B1 High Frequency Mobile C-Arm System is a mobile, high-frequency X-ray fluoroscopy and radiography unit manufactured by Nanjing Perlove Medical Equipment Co., Ltd. It is designed for intra-operative and point-of-care imaging in hospitals, surgical centres, and clinics. In the PLX116 series, the B1 configuration integrates the C-arm host and the imaging workstation into a single, cable-free mobile unit with an integrated video monitor, giving departments a compact, easy-to-move imaging station that fits into space-constrained operating rooms.

The system is intended to support clinical teams in orthopaedics and trauma (osteopathy, reduction, intramedullary nailing), general and abdominal surgery, spine and urology procedures, interventional and cardiac catheter work, pain management, and other procedures that require real-time fluoroscopic guidance. Imaging is fully digital, built around a megapixel ultra-low-illumination CCD camera coupled to an image intensifier for high-resolution image acquisition.

Key features

• High-frequency X-ray generator with combined high-frequency, high-voltage power supply for stable output and reduced exposure compared with conventional generators.
• Fully digital megapixel imaging system with a megapixel image enhancer and ultra-low-illumination CCD camera for high-resolution acquisition.
• Integrated, cable-free design — the C-arm host and digital workstation are combined into one mobile unit, with a small footprint for easy movement and storage.
• Automatic kV / mA tracking fluoroscopy that adjusts parameters to maintain image brightness and clarity, plus intelligent parameter adjustment for consistent results.
• Graphical LCD touch-screen host interface with a hand-held controller for convenient operation.
• Five mechanical movements with free, dead-end-free rotation; a wide base for stability; and a rotating monitor rack for viewing from multiple directions.
• Image-processing workstation supporting functions such as window/level adjustment, grayscale conversion, image enhancement, noise reduction, sharpening, zoom, measurement, annotation, last-image-hold, and movie playback.
• DICOM connectivity for image sending, printing, and integration with hospital information systems.

What is included

• Mobile C-arm main frame with integrated workstation
• High-frequency, high-voltage X-ray generator and inverter power supply
• X-ray tube assembly with electric beam-limiting collimator
• Image intensifier with megapixel ultra-low-illumination CCD camera and CCU control system
• Integrated high-resolution medical video monitor
• Digital acquisition and image-processing workstation with LCD display
• Hand-held controller and anti-scatter grid

Installation, training and service

Medisense, as an authorized Philippine distributor (Osyali Construction & Trading, Inc.), can supply the PLX116B1 with delivery, professional installation, and user training for radiographers and surgical staff. We provide after-sales engineering support including preventive maintenance, calibration, repair, and spare parts. Pricing is available in Philippine Pesos (PHP) on request. Exact configuration options, electrical specifications, and physical dimensions should be confirmed against the current manufacturer datasheet and the unit's regulatory documentation at the time of quotation.

Supplied by Osyali Construction & Trading, Inc., an authorized Perlove distributor in the Philippines. Installation, training, and after-sales service available.
