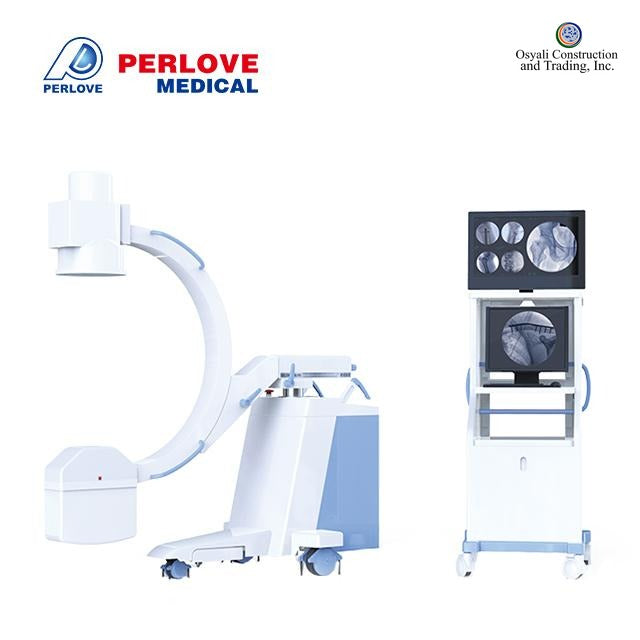

Perlove PLX112C1 High Frequency Mobile C-Arm System

The Perlove PLX112C1 High Frequency Mobile C-Arm System is a mobile digital fluoroscopy and radiography unit manufactured by Nanjing Perlove Medical Equipment Co., Ltd. It is a compact, wheeled C-arm built for surgical and interventional imaging, intended for use by hospitals, surgical centers, and clinics that require real-time X-ray guidance in the operating room. Typical applications include orthopaedic procedures (osteopathy, reduction/diaplasis, and nailing) and general surgery such as foreign-body removal, cardiac catheter placement, pacemaker implantation, interventional procedures, and localized radiography.

Key features

• High-frequency high-voltage X-ray generator with high-precision digital pulse control, designed to produce stable imaging at a low skin dose.
• 5.0 kW rated photographic output with a 40–120 kV tube voltage range, supporting fluoroscopic, pulsed-fluoroscopic, and photographic modes.
• Automatic kV/mA tracking during fluoroscopy to optimize image brightness and clarity across different anatomy.
• Toshiba image intensifier paired with an imported ultra-low-illumination CCD camera for clear, stable images.
• Electrically controlled (motorized) collimator / beam-limiting device for multi-angle and multi-directional anatomical positioning.
• Digital workstation with image processing tools (window/level adjustment, grayscale conversion, rotation, noise reduction, edge enhancement, smoothing, sharpening, zoom, measurement, annotation, and last-image-hold freeze).
• Dual high-resolution medical monitors for real-time image display inside and outside the operating room.
• DICOM 3.0 network interface for image send/print and integration with hospital PACS and RIS.
• Mobility and handling: motorized auxiliary support arm for stable raising/lowering, ±90° steerable directional wheels, a dual foot-brake design for operation away from the unit, and a hand-held controller.
• Anti-scatter grid fitted to further improve image sharpness.

What is included

• C-arm mainframe (one set)
• Combined high-frequency high-voltage X-ray generator and HF power supply
• Imported image intensifier (9″ standard; 6″ / 4.5″ options)
• Imported ultra-low-illumination CCD camera and high-definition CCU control system
• Imported anti-scatter grid
• Electrically adjustable beam-limiting device (motorized collimator)
• 14″ high-definition medical monitor
• Hand-held controller
• Digital workstation with 19″ LCD display

Installation & service in the Philippines

Medisense (Osyali Construction & Trading, Inc.) supplies the Perlove PLX112C1 in the Philippines with pricing in Philippine Pesos (PHP). As an authorized distributor, we provide delivery, on-site installation and commissioning, operator orientation, and after-sales engineering support including preventive maintenance, calibration, repair, and spare parts. For a formal quotation, availability, and configuration options (image intensifier size and plate-holder size), please contact our sales team.

Dimensions

Device net weight: 353 kg. Shipping/packing crate: 2440 x 1100 x 1420 mm (W x D x H), approx. 3.9 CBM; gross shipping weight 538 kg. (Standalone device footprint W x D x H not published by the manufacturer.) Related C-arm geometry: C-arm opening 760 mm, C-arm arc depth 640 mm, focus-to-screen distance 960 mm, vertical lift >=400 mm.

Supplied by Osyali Construction & Trading, Inc., an authorized Perlove distributor in the Philippines. Installation, training, and after-sales service available.
