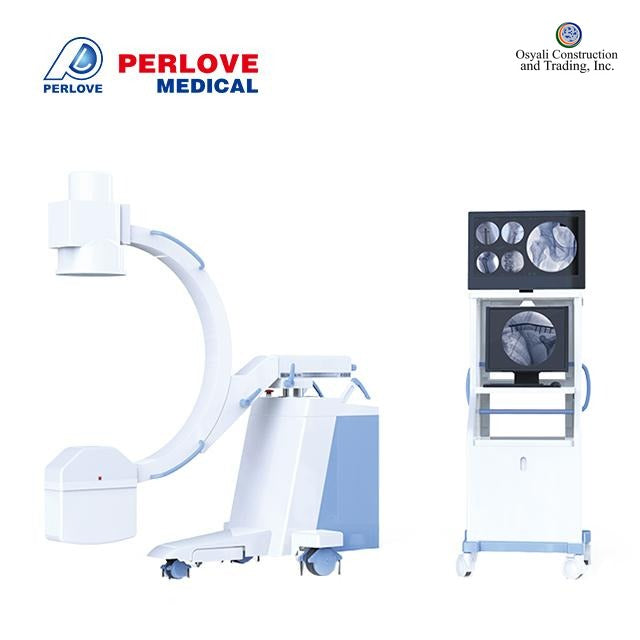

Perlove PLX112B1 High Frequency Mobile C-Arm System
- 5.0 kW high-frequency generator with 40-120 kV range and automatic/manual/pulsed fluoroscopy modes with automatic kV/mA brightness tracking for consistent live imaging
- Toshiba triple-field (9"/6"/4.5") image intensifier with imported ultra-low-light CCD camera and dual high-resolution medical monitors for real-time fluoroscopy and digital radiography
- Wide C-arm mobility: 120 deg orbital slip, +-180 deg horizontal rotation, +-15 deg vertical rotation, and steerable base wheels support flexible OR and procedure-room positioning
- Built-in digital workstation with DICOM 3.0 send/print, image processing tools, and hand-held controller streamlines image capture, review, and archiving
- Supplied as a complete set with computer, backed by authorized Osyali distributor delivery, installation, training, and after-sales service in the Philippines
Request a Quote
Official pricing · warranty · nationwide installation
You get a partner, not just a machine
More Perlove equipment
Specifications & details+
The Perlove PLX112B1 High Frequency Mobile C-Arm System is a mobile, high-frequency X-ray imaging system that provides real-time fluoroscopy and digital radiography. Built around a motorised C-shaped arm, it is designed for use by qualified medical professionals in operating theatres and procedure rooms, where it supports image guidance during orthopaedic, surgical, and interventional work such as bone repositioning, nailing, foreign-body removal, cardiac catheterisation, and pacemaker placement. Manufactured by Nanjing Perlove Medical Equipment Co., Ltd., it is supplied in the Philippines by Medisense (Osyali Construction & Trading, Inc.).
How the system works
A combined high-frequency, high-voltage X-ray generator (5.0 kW maximum rated output) drives a fixed-anode, dual-focus X-ray tube. The X-ray beam passes through the patient to a Toshiba triple-field image intensifier (9″ / 6″ / 4.5″) and an imported ultra-low-light CCD camera, producing a live image on the monitors. Automatic, manual, and pulsed fluoroscopy modes are available, and the unit automatically tracks kV and mA during fluoroscopy to help keep image brightness consistent. A built-in digital workstation handles image capture, storage, and processing, with DICOM 3.0 image sending and printing.
Key features and specifications
- Category: High Frequency Mobile C-Arm System (per Osyali's official price list).
- X-ray generator: High-frequency, high-voltage, 5.0 kW maximum rated output; inverter frequency 40 kHz.
- X-ray tube: Special high-frequency, fixed-anode, dual-focus design.
- Tube voltage range: 40 kV to 120 kV.
- Fluoroscopy current: 0.3-4 mA (automatic and manual, continuous); pulsed fluoroscopy up to 8 mA.
- Radiography: 40-120 kV, 20-100 mA.
- Image intensifier: Toshiba triple-field (9″ / 6″ / 4.5″).
- Camera: Imported ultra-low-light CCD; mega-pixel CCU with last-image-hold (LIH), image storage, image patching, and adjustable recursive noise reduction.
- Monitors: Dual high-resolution medical monitors (horizontal 1000 lines / vertical 800 lines).
- C-arm geometry: Opening 760 mm, arc depth 640 mm, focus-to-screen distance 960 mm.
- C-arm movement: Orbital slip 120° (+90° to -30°), rotation around horizontal axis ±180°, around vertical axis ±15°, forward/backward travel 200 mm.
- Column travel: Vertical lift ≥400 mm.
- Mobility: Steerable directional wheels with ±90° rotation; motor-driven auxiliary support arm on the base.
- Control: Hand-held controller.
- Workstation software: Window/level adjustment, grayscale conversion, rotation, edge enhancement, smoothing, sharpening, zoom, measurement, annotation, print layout, and movie playback; DICOM 3.0 image send and print.
- Beam control: Electrically adjustable collimator (beam-limiting device) and anti-scatter dense-grain grid.
- Compliance markings (per manufacturer): CE, ISO, TÜV.
What's included, installation and service
This listing is supplied as a complete set with computer (per Osyali's official price list), comprising: C-arm mainframe; combined high-frequency high-voltage X-ray generator and HF power supply; imported 9-inch image intensifier; imported medical ultra-low-illumination CCD camera; imported dense-grain anti-scatter grid; electrically adjustable beam-limiting device (collimator); high-definition progressive-output CCU control system; high-definition medical-grade monitor(s); hand-held controller; and a digital workstation with 19″ LCD display and built-in computer.
As the authorized Osyali (Osyali Construction & Trading, Inc.) distributor, Medisense provides delivery, professional installation and commissioning, and operator orientation for clinical staff in the Philippines, along with ongoing engineering services including preventive maintenance, calibration, repair, and genuine spare parts. Contact us for a quotation and current lead time. This device is intended for use only by trained and licensed medical professionals.
Dimensions
Shipping/packing: 2440 x 1100 x 1420 mm (3.9 CBM). Net weight 353 kg, gross weight 538 kg. C-arm geometry: opening 760 mm, arc depth 640 mm, focus-to-screen distance 960 mm; vertical column travel ≥400 mm. Overall assembled unit footprint (width x depth x height) is not published by the manufacturer.
Specifications are based on manufacturer-published data and Osyali's official price list; final configuration is confirmed at quotation. For imaging use only, by trained healthcare professionals — not intended to provide diagnosis on its own.
