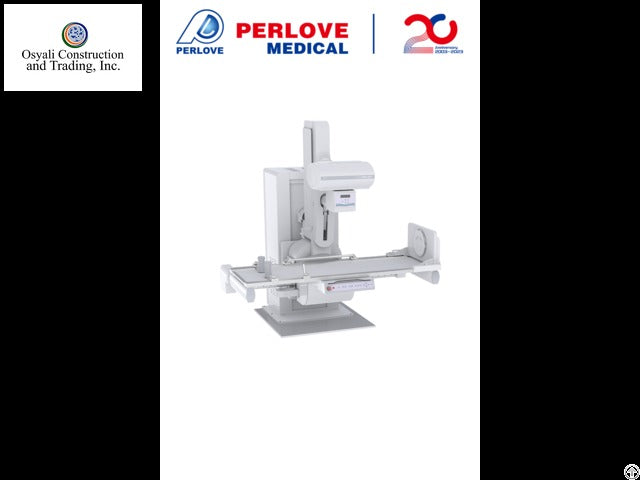

Perlove PLD9600F Multi-function X-ray machine - High end

The Perlove PLD9600F is a multi-function X-ray machine from Perlove's high-end line, manufactured by Nanjing Perlove Medical Equipment Co., Ltd. It combines static digital radiography (DR), real-time dynamic fluoroscopy, and gastrointestinal/contrast imaging on a single floor-mounted, motorized table-and-tower platform — built for hospitals, diagnostic imaging centres, and multi-department clinics that need one room to cover general radiography, fluoroscopy, and dynamic studies.

The system is intended for use by trained radiographers and radiologists across departments including orthopaedics, respiratory medicine, gastroenterology, emergency, traumatology, urology, and general medical examination.

Key features and specifications

• Configuration: Multi-function X-ray machine, high-end line — floor-mounted, motorized radiographic table with digital radiography, fluoroscopy, and GI/contrast imaging in one system.
• Dynamic flat-panel detector: 17″ × 17″ (43 × 43 cm) large field-of-view dynamic FPD for full-body-region coverage.
• Generator: High-power, high-frequency generator rated 65 kW class; 380 V ±38 V, 50 Hz ±1 Hz supply, ≥85 kVA capacity.
• Radiography output: Tube voltage 40 kV–150 kV, tube current 10 mA–800 mA, exposure time approximately 1.0 ms–6300 ms.
• Fluoroscopy: Tube voltage 40 kV–125 kV; continuous fluoroscopy 0.5 mA–6 mA, pulsed fluoroscopy 0.5 mA–20 mA; dynamic acquisition up to 30 frames per second for real-time imaging.
• Motorized positioning: Table tilt −90° to +90° (symmetrical); tube/column tilt and travel motorized for flexible patient access.
• Patient access: Table lowers to a minimum height of approximately 60 cm, easing transfer for small, elderly, or less-mobile patients.
• SID and grids: Source-to-image distances of 110 cm and 180 cm with automatic grid selection (AGS).
• Automatic collimator: Electric beam limiter that adjusts field size to patient positioning.
• Dose management: DAP intelligent dose-monitoring system records per-examination dose for patient radiation tracking.
• Workstation: Integrated color LCD touchscreen control for mechanical operation and exposure-parameter adjustment.
• Connectivity: Full DICOM support for integration with PACS, DICOM workstation, image archive, printer, and HIS/RIS.
• Optional functions: Automatic image stitching for long-length (spine/leg) studies; DSA peripheral angiography module.

What's included, installation and service

This listing is supplied as a complete set with computer (per Osyali's official price list) — the motorized patient table and tube tower/column, high-frequency X-ray generator and tube assembly, 17″ × 17″ dynamic flat-panel detector, automatic collimator, touchscreen control workstation, and acquisition/imaging software with DICOM connectivity and computer are included together. Optional modules such as DSA and automatic image stitching are confirmed at quotation.

As the authorized Osyali (Osyali Construction & Trading, Inc.) distributor, Medisense provides delivery, installation, training, and after-sales service in the Philippines, including preventive maintenance, calibration, and parts support. Contact us for a configuration-specific quotation, room-readiness requirements, and current lead time.

Dimensions

Overall unit dimensions and weight are not published by the manufacturer. Room-planning figures we can confirm: minimum tabletop height approximately 60 cm; standard SID positions of 110 cm and 180 cm; table tilt range −90° to +90°. Contact us for a full site-planning package.

Specifications are based on manufacturer-published data and may vary by configuration. Final specifications are confirmed at quotation. This device is intended for use by trained healthcare professionals; for imaging use only — not intended to provide diagnosis on its own.
