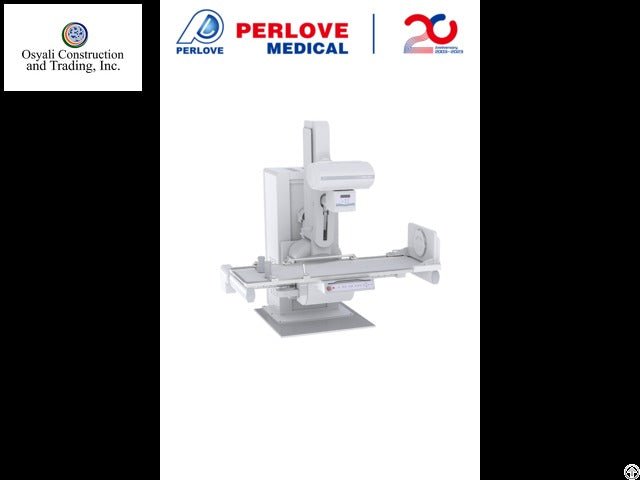

Perlove PLD9600D Multi-function X-ray machine - High end

The Perlove PLD9600D is a high-end, all-in-one digital radiography and dynamic fluoroscopy (DRF) X-ray system manufactured by Nanjing Perlove Medical Equipment Co., Ltd. It combines a remote-controlled fluoroscopy table with a dynamic flat-panel detector in a single platform, intended for hospitals, diagnostic imaging centres, and radiology departments that require both general radiography and real-time fluoroscopic imaging from one room. Medisense supplies and supports this unit for healthcare facilities across the Philippines.

The system is designed for a wide range of clinical X-ray examinations, including gastrointestinal contrast studies, general radiography, orthopedic imaging (such as full-spine and full-leg work), intravenous urography (IVP/IVU), hysterosalpingography (HSG), lower-limb venography, and support for endoscopic procedures.

Key Features & Specifications

• Imaging modes: Combined digital radiography and dynamic digital fluoroscopy in a single all-in-one platform.
• Detector: 17 x 17 inch dynamic flat-panel detector (FPD) for a large acquisition area and wide imaging field.
• High-frequency generator: 500 kHz inverter frequency, with tube current up to 800 mA.
• Dynamic acquisition: Real-time fluoroscopy at up to 30 frames per second, with a pulsed fluoroscopy mode.
• Workstation: 15-inch LCD touchscreen that integrates mechanical operation and exposure-parameter control.
• Geometry & movement: Source-to-image distance (SID) with electric extension up to 1800 mm; tube column tilt from -45° to +45°; table rotation of ±90°.
• Image processing: Intelligent Brightness System (IBS) that automatically adjusts image brightness and contrast based on the thickness and density of the imaged area.
• Automatic image stitching: Combines multiple exposures into a single long image, useful as a data reference for full-spine and full-leg studies and for orthopedic planning and post-operative evaluation.
• Dose management: Pulsed fluoroscopy to support lower radiation dose during imaging; optional Dose Area Product (DAP) monitoring.
• Optional functions: Automatic Exposure Control (AEC), electric collimator with automatic beam adjustment, and customized accessories for endoscopic procedures.

What's Included

• PLD9600D radiography/fluoroscopy table with motorized movements
• 17 x 17 inch dynamic flat-panel detector
• High-frequency X-ray generator and X-ray tube assembly
• 15-inch LCD touchscreen control workstation with acquisition and image-processing software
• Operator console and standard patient-positioning accessories

Installation & Service

As an authorized distributor, Medisense provides delivery, professional installation, and commissioning, along with operator orientation for radiographers and technologists. After-sales support includes preventive maintenance, calibration, parts supply, and repair service. For pricing in Philippine Peso (PHP), configuration options, and availability, please contact Medisense.

This device is intended for use by qualified, licensed healthcare professionals. Specifications are based on manufacturer-published information and may vary by configuration; final specifications are confirmed at the time of quotation.

Supplied by Osyali Construction & Trading, Inc., an authorized Perlove distributor in the Philippines. Installation, training, and after-sales service available.
