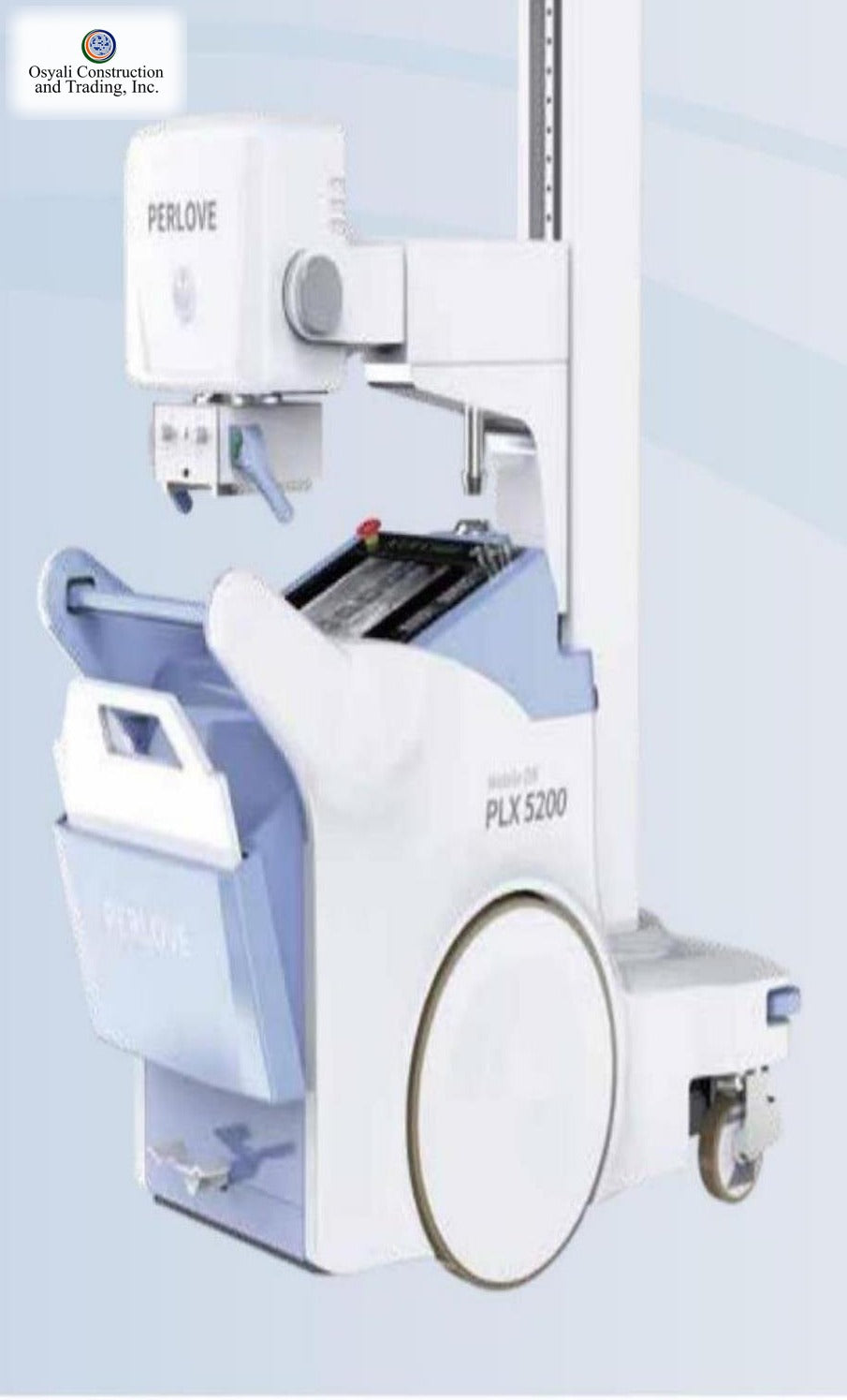

Perlove PLX5200 Mobile Digital X-ray machine (50KW)

The Perlove PLX5200A Mobile Digital Radiography System (50kW version) is a motorized, battery-powered mobile DR X-ray unit built for point-of-care radiography. It is designed to be brought directly to the patient, allowing diagnostic radiographic exposures in wards, the ICU, emergency and outpatient departments, operating rooms, and along hospital corridors where moving a patient to a fixed X-ray room is impractical. It is intended for use by a qualified, trained radiographer, technologist, or physician on adult and pediatric patients for radiographic imaging of the skull, spine, chest, abdomen, and the extremities. Distributed and supported in the Philippines by Medisense (Osyali Construction & Trading, Inc.).

Key features and specifications

• High-frequency generator: 50 kW split high-frequency, high-voltage generator for stable high-voltage output across a wide range of exam positions.
• Exposure parameters: tube voltage 40–150 kV; tube current 10–500 mA.
• X-ray tube: large-heat-capacity rotating-anode tube (anode heat capacity 161 kJ / 240 kHU) for efficient heat dissipation and extended continuous operation; supports a quick exposure time of approximately 1 ms.
• Wireless flat-panel detector: 14" x 17" (35 x 43 cm) wireless detector using cesium iodide + amorphous silicon, with a 3k x 3k pixel matrix and 16-bit grayscale for fine tissue detail.
• Powered mobility: dual-motor drive with a large-capacity lithium battery pack for motorized movement, reducing operator effort when transporting the unit.
• Supercapacitor exposure power: a dedicated supercapacitor powers the exposure and recharges quickly (full charge in approximately 10 minutes), reducing reliance on a continuous mains connection.
• Mains input: operates on 110 V / 220 V power.
• Flexible positioning: motorized column with wide-range rotation and a telescoping arm; tube head rotates ±180°; ultrasonic source-to-image distance measurement assists positioning.
• Dual exposure control: handbrake (tethered) exposure mode and wireless remote-control exposure mode.
• Dose management: dose-control technology that adjusts exposure settings to the body region and patient size.
• Connectivity: DICOM 3.0 support for integration with PACS and hospital imaging workflows.

Regulatory status

• Classified by the US FDA as a Mobile X-Ray System, Class II (21 CFR 892.1720), under 510(k) clearance K212134 held by Nanjing Perlove Medical Equipment Co., Ltd.
• Manufacturer quality and product certifications include ISO 13485 and CE.

What is included, installation and service

• Mobile DR unit with integrated high-voltage generator, X-ray tube and collimator, motorized column and arm.
• 14" x 17" wireless flat-panel detector with acquisition workstation and imaging software.
• Onboard rechargeable battery system and supercapacitor power module; mains charging cable.
• Operator manual and manufacturer documentation.

Medisense provides delivery, installation, and operator orientation in the Philippines, along with preventive maintenance, calibration, repair, and spare-parts support. Configuration and accessories may vary; please confirm the final specification and price (PHP) on quotation.

Supplied by Osyali Construction & Trading, Inc., an authorized Perlove distributor in the Philippines. Installation, training, and after-sales service available.
