Perlove PLX118C C-Arm system with Dynamic detector
Official distributor · Perlove
Perlove PLX118C C-Arm system with Dynamic detector
- 30 cm x 30 cm dynamic flat-panel detector gives ~100% more imaging area than a conventional FPD, capturing wider fields (e.g. full lumbar spine or broad pelvic coverage) in a single shot
- Integrated C-arm plus workstation in one compact, mobile frame — single-person operation, easy to maneuver in crowded ORs
- Counter-balanced arm hovers at any angle when unlocked, speeding positioning during procedures
- Multiple dose-reduction technologies (low-dose mode, virtual collimation, anti-scatter grid, high-frequency inverter) support radiation-conscious workflows
- Sold as a complete set with computer/workstation, backed by Osyali's local installation, training, and after-sales service
Request a Quote
Official pricing · warranty · nationwide installation
You get a partner, not just a machine
More Perlove equipment
Specifications & details+

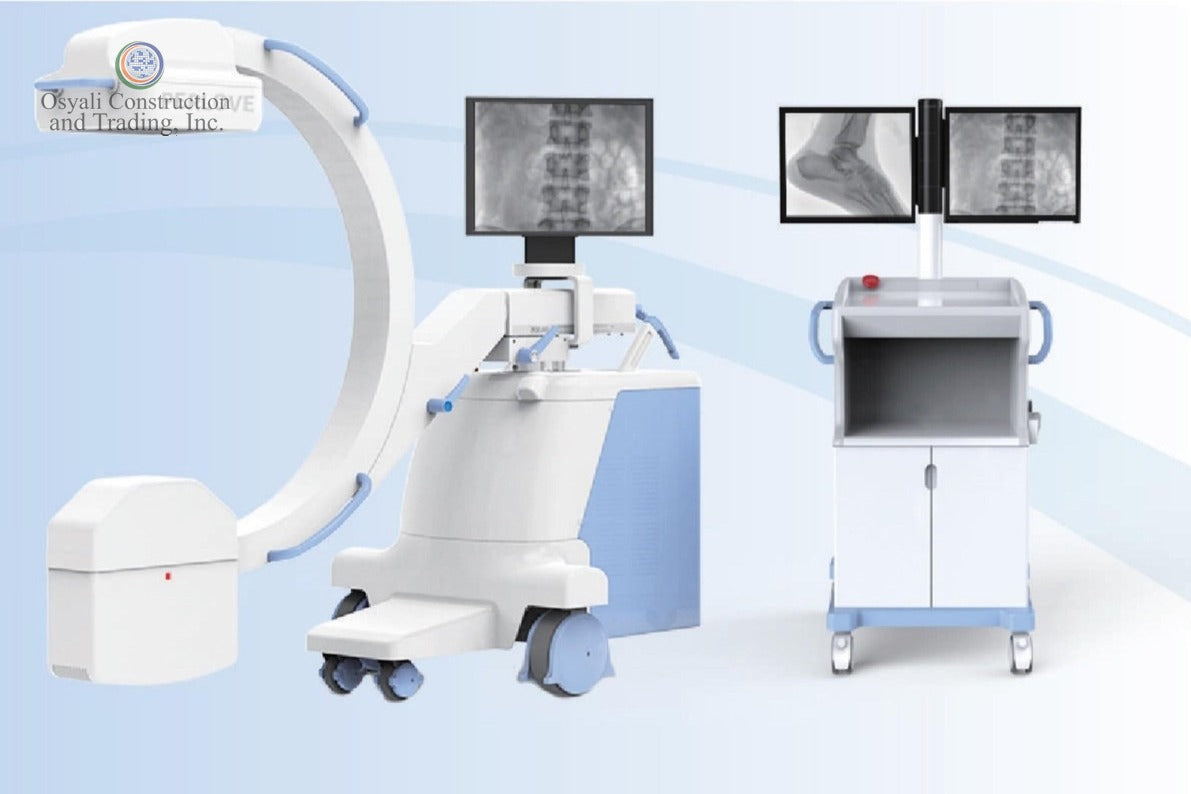

The Perlove PLX118C is a mobile digital C-arm fluoroscopy system built around a large-format dynamic flat-panel detector (FPD). It integrates the C-arm gantry and the imaging workstation into a single compact, mobile unit designed for intra-operative imaging in the operating room, for use by surgeons and radiology staff in hospital settings, with reference applications in orthopaedics, spine surgery, traumatology, general surgery, and pain-management procedures.
The system pairs a 30 cm x 30 cm dynamic detector with a high-frequency generator and a rotatable 4K medical display, so the surgical team can acquire and review real-time fluoroscopic images during a procedure from a single, mobile platform.
Key features
- 30 cm x 30 cm dynamic flat-panel detector — the manufacturer states the imaging area is increased by roughly 100% compared with a conventional FPD, allowing a wider field of view (for example, capturing the full lumbar spine in a single image and broad pelvic coverage).
- 16-bit grayscale output with high DQE and low noise for detailed, high-contrast images.
- Large rotatable 4K LCD display that swivels through a wide angle for viewing from multiple positions in the OR.
- High-sensitivity touch operation screen, also rotatable, for control from different angles.
- Integrated C-arm and workstation in a compact frame for flexible, light movement and single-person operation in crowded operating rooms.
- Counter-balanced C-arm that can be positioned and held (hover) at any angle in the unlocked state.
- Dose-management technologies: low-dose exposure mode, virtual collimation (adjusting the exposure field without re-exposure), a pluggable anti-scatter grid, high-frequency inverter generation, and intelligent variable-frequency control.
- Standby power support on the integrated workstation.
Technical highlights
- Detector: 30 cm x 30 cm dynamic flat-panel detector, 16-bit grayscale, 4 MP image output.
- Display: large-format 4K medical LCD, wide-angle rotation; rotatable touch control screen.
- Configuration: integrated mobile C-arm gantry plus on-board imaging workstation.
- Generator: high-frequency inverter type. Exact kW output and kV range for the PLX118C configuration are confirmed with Medisense at time of quotation.
- Dimensions: not published by the manufacturer. Contact Medisense for the configuration-specific footprint and weight if floor planning is required.
What's included, installation, and service
This listing is for the complete set with computer — the C-arm gantry with dynamic flat-panel detector and X-ray source, plus the mobile imaging workstation with the 4K display and touch control, as one integrated unit.
Osyali (Osyali Construction & Trading, Inc.) is an authorized Perlove distributor in the Philippines and provides delivery, installation and commissioning, operator training, and after-sales engineering support — including preventive maintenance, calibration, repair, and spare parts.
This device is intended for use by qualified medical professionals. Supply and use are subject to Philippine FDA registration and applicable regulations.
