Perlove PLD9600C Multi-function X-ray Machine — Middle End

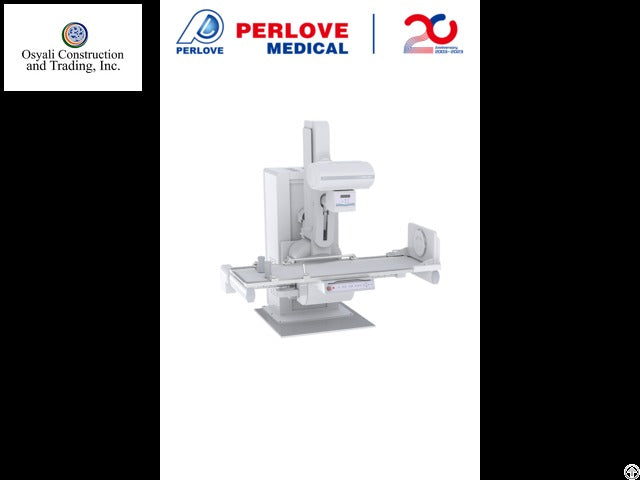

The Perlove PLD9600C is a high-frequency digital radiography and fluoroscopy (DRF) system from Perlove Medical, positioned as a middle-end multi-function X-ray platform. It combines digital radiography, real-time digital fluoroscopy, and contrast-study imaging in a single remote-controlled table, suited to hospitals, diagnostic centers, and imaging departments in the Philippines that need one platform for both general X-ray and dynamic examinations.

Built around a large-format dynamic flat-panel detector and a high-frequency high-voltage generator, the system supports examinations of the chest, abdomen, spine, limbs, and gastrointestinal tract, with the patient positioned supine, prone, lateral, or oblique on a motorized tilting table.

Key features and specifications

• Modalities: Digital radiography, digital fluoroscopy, and contrast/spot-film imaging on one system.
• Flat-panel detector: 17 x 17 inch large-area dynamic flat-panel detector for a wide imaging field.
• Dynamic acquisition: Real-time fluoroscopic imaging at up to 30 frames per second.
• High-frequency generator: 65 kW power output with a 200 kHz inverter frequency for stable exposure; power supply requirement ≥85 kVA at 380V±38V, 50Hz±1Hz.
• Radiography range: 40-150 kV tube voltage, 10-800 mA tube current, 1.0-6300 ms exposure time.
• Fluoroscopy range: 40-125 kV tube voltage; continuous 0.5-6 mA and pulsed 0.5-20 mA, with automatic brightness control.
• Motorized table: Symmetrical tilting -90° to +90° (0-6° per second column tilting); table lowers to approximately 60 cm for easier patient access.
• Geometry: Selectable source-to-image distance (SID) of 110 cm / 180 cm with automatic grid selection; X-ray tube assembly tilt of +/-40 degrees.
• Workstation: Integrated touchscreen control of mechanical movement and exposure parameters.
• Dose management: DAP (dose-area-product) monitoring records the dose for each examination.
• Connectivity: DICOM-compatible for integration with PACS networks.

Clinical applications

• General radiography of the head, neck, chest, abdomen, spine, and limbs.
• Digital fluoroscopy and contrast studies, including upper gastrointestinal and swallow examinations.
• Imaging support for orthopedics, gastroenterology, respiratory, emergency, and routine examination departments.

What's included

This listing is for the complete set with computer — the motorized radiography/fluoroscopy table, X-ray tube assembly and 65 kW high-frequency generator, 17 x 17 inch dynamic flat-panel detector, and the operator workstation (computer and imaging software) are supplied together as one package.

Dimensions

Overall unit dimensions and weight are not published by the manufacturer. Contact Medisense for a site-requirement assessment and room-layout guidance ahead of installation.

Distributor, installation and service

Supplied by Osyali Construction & Trading, Inc., an authorized Osyali (Medisense) distributor for Perlove in the Philippines. Our engineering team provides delivery, installation, commissioning, and operator training, plus after-sales support including preventive maintenance, calibration, repair, and spare parts. Contact Medisense for a configuration quotation and site-requirement assessment.
