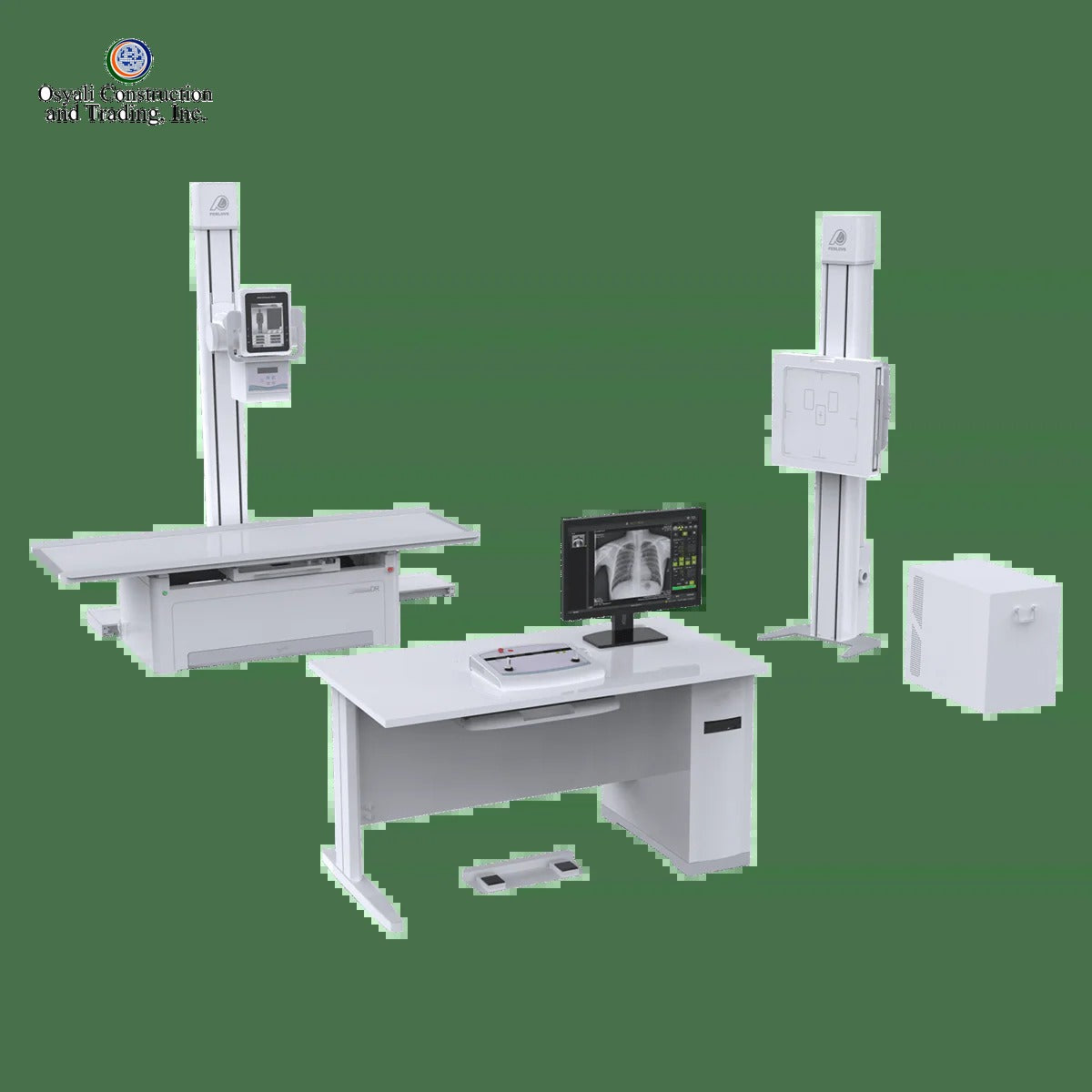

Perlove PLD7900I Floor mounted Digital X-ray machine - High end

The Perlove PLD7900I is a floor-mounted digital X-ray machine from Perlove's high-end line, manufactured by Nanjing Perlove Medical Equipment Co., Ltd. Built around a 17″ × 17″ large field-of-view dynamic flat panel detector and a 180°-rotatable tube-and-column assembly, it is configured for general digital radiography and dynamic (motion) imaging in hospitals, diagnostic imaging centres, and clinics that need a flexible, high-throughput fixed X-ray room.

An electric four-way floating tabletop and a low minimum tube-to-floor distance let the radiographer position a wide range of patients and projections — including stretcher and wheelchair patients — from a single installation. A 10.4″ touchscreen control panel and motorized collimator streamline daily workflow, while the flat panel detector captures images directly for review on the connected acquisition workstation.

Key features and specifications

• Configuration: Floor-mounted digital X-ray (DR) system, high-end line — rotating tube-and-column with radiographic table.
• Flat panel detector: 17″ × 17″ large field-of-view dynamic FPD; 100 µm / 139 µm pixel pitch options; single- or double-panel and static or dynamic panel configurations available.
• Image acquisition: Up to 30 fps dynamic image acquisition; high-resolution radiographic capture (approximately 18-megapixel imaging).
• Imaging functions: Digital radiography and digital-motion (dynamic) imaging that records anatomical movement over time; automatic stitching for panoramic images available as an option.
• Positioning aids: Automatic tracking function to assist chest radiography positioning; cardiothoracic ratio and spine measurement tools.
• SID (source-to-image distance): Standard 1.0 m and 1.8 m positions, compatible with matching anti-scatter grids.
• Patient table: Electric four-way floating tabletop; fixed or motorized lifting table options; minimum tabletop-to-floor height approximately 50 cm.
• Tube and column: 180° rotatable tube and column for stretcher/wheelchair access; minimum tube-to-floor distance approximately 35 cm for low-position projections.
• Collimator: Motorized collimator for beam-area selection.
• Control: 10.4″ integrated touchscreen control panel.
• Generator: High-frequency, high-voltage generator; exact power rating (kW) and inverter frequency are configuration-dependent — confirmed at quotation.

What's included, installation and service

This listing is supplied as a complete set with computer (per Osyali's official price list) — the X-ray tube and rotating column assembly, high-frequency high-voltage generator, dynamic flat panel detector, radiographic table, and image acquisition workstation with touchscreen control and computer are included together. Exact configuration (panel type, table type, and generator rating) is selected at the time of order.

As the authorized Osyali (Osyali Construction & Trading, Inc.) distributor, Medisense provides delivery, installation, training, and after-sales service in the Philippines, including preventive maintenance, calibration, and parts support. Contact us for a configuration-specific quotation and current lead time.

Dimensions

Overall unit dimensions and weight are not published by the manufacturer. Room-planning figures we can confirm: minimum tabletop-to-floor height approximately 50 cm; minimum X-ray tube-to-floor distance approximately 35 cm; standard SID positions of 1.0 m and 1.8 m. Contact us for a full site-planning package.

Specifications are based on manufacturer-published data and may vary by configuration. Final specifications are confirmed at quotation. This device is intended for use by trained healthcare professionals; for imaging use only — not intended to provide diagnosis on its own.
