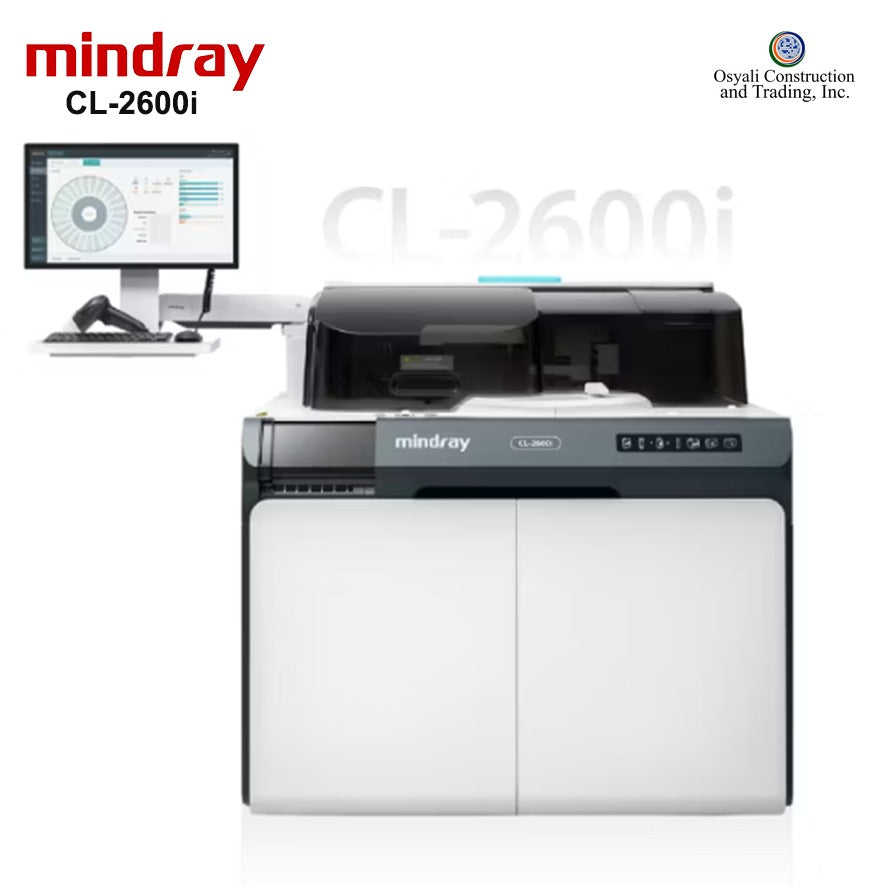

Mindray CL-2600i Chemiluminescence Immunochemistry Analyzer
Official distributor · Mindray
Mindray CL-2600i Chemiluminescence Immunochemistry Analyzer
- Automated CLIA immunoassay platform delivering up to 240 tests/hour in under 1 sqm, suited to mid-volume labs with limited bench space
- 1-minute STAT response keeps urgent cardiac, infectious-disease, and hormone results moving without disrupting the routine queue
- Up to 5-hour unattended walk-away time plus 1,200-cuvette bulk loading reduces operator hands-on time
- 360-degree waterfall vacuum washing holds carryover below 0.1 ppm, supporting result reliability across adjacent tests
- Scales into Mindray's integrated M680 (with BS-600M) or M980 (with BS-1000M) chemistry-immunoassay platforms as a lab's menu grows, backed by authorized local installation and after-sales service
Request a Quote
Official pricing · warranty · nationwide installation
You get a partner, not just a machine
More Mindray equipment
Specifications & details+
The Mindray CL-2600i Chemiluminescence Immunoassay Analyzer is a fully automated, floor-standing in vitro diagnostic system designed for mid-volume clinical laboratories, hospitals, and diagnostic centers across the Philippines. It performs chemiluminescence immunoassay (CLIA) testing on blood serum and plasma samples, supporting menus such as thyroid function, cardiac and inflammation markers, fertility and reproductive hormones, infectious disease serology, and tumor-associated markers (assay availability varies by registered reagent kit). The CL-2600i is built for laboratories that need high-throughput immunoassay capability within a compact footprint of less than one square meter.
How the System Works
The CL-2600i uses a sandwich immunoassay format with paramagnetic microparticles and alkaline phosphatase (ALP)-labeled antibodies. After magnetic separation and washing, an AMPPD chemiluminescent substrate is added, and the emitted light is measured by a photomultiplier tube (PMT) using photon-counting detection. Mindray's FS-Sampling (Full-Scene Sampling) technology identifies sample containers using onboard databases and algorithms to support accurate sample aspiration, while 360-degree waterfall vacuum washing with enhanced washing helps keep carryover below 0.1 ppm.
Key Features and Specifications
- Methodology: Chemiluminescence immunoassay (CLIA), sandwich principle with paramagnetic microparticles, ALP/AMPPD substrate, PMT photon-counting detection
- Throughput: Up to 240 tests per hour
- Footprint: Less than 1 square meter
- Sample positions: 70
- Reagent positions: 25, with onboard 2-8 degrees C refrigeration
- Reaction cuvette capacity: Up to 1,200 cuvettes via bulk loading module
- STAT (urgent sample) handling: Priority processing with 1-minute response to STAT samples
- Continuous operation: Walk-away time of up to 5 hours
- FS-Sampling technology to address interference from liquid film, static, and bubbles
- 360-degree waterfall vacuum washing with carryover below 0.1 ppm
- Built-in dilution module for concentrated wash buffer and a low-maintenance, long-life module design
- Integration-ready: Can be combined with Mindray clinical chemistry analyzers to form integrated chemistry-immunoassay solutions (M680 with BS-600M; M980 with BS-1000M)
What's Included, Installation and Service
Each unit is supplied as the CL-2600i analyzer with its operating software, standard accessory and starter kit, and operator documentation. Compatible Mindray CLIA reagents, calibrators, and quality-control materials are ordered separately according to the test menu required. As an authorized Mindray distributor, Medisense (Osyali Construction & Trading, Inc.) provides delivery and professional on-site installation, application training for laboratory staff, and after-sales engineering support including preventive maintenance, calibration, and parts. Pricing is quoted in Philippine Pesos (PHP); contact us for a configuration and quotation tailored to your laboratory's workload and assay requirements.
Dimensions
Not published by Mindray for this model; contact Medisense for site-planning and installation clearance details.
Supplied by Osyali Construction & Trading, Inc., an authorized Mindray distributor in the Philippines. Installation, training, and after-sales service available.
