Mindray EU-5300pro Fully Automated Urine Chemistry and Sediment Hybrid Analyzer
- Consolidates urine dry chemistry and sediment (formed-element) microscopy onto one walk-away analyzer, cutting bench space and manual handoffs versus running two separate instruments
- One aspiration covers both chemistry and sediment testing, simplifying sample prep and reducing technologist hands-on time per specimen
- 160 tests/hour in chemistry mode and 70 tests/hour in hybrid mode support mid-to-high-volume hospital and reference labs without a second analyzer
- 2K imaging with up to 60 captured images per sample plus standard RBC phase parameters gives reviewers more visual and morphological detail before falling back to manual microscopy
- Closed-tube aspiration with built-in barcode reading supports safer, more consistent specimen handling for lab staff
Request a Quote
Official pricing · warranty · nationwide installation
You get a partner, not just a machine
More Mindray equipment
Specifications & details+

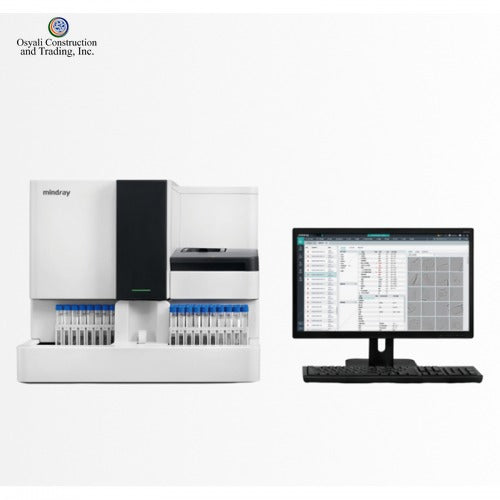

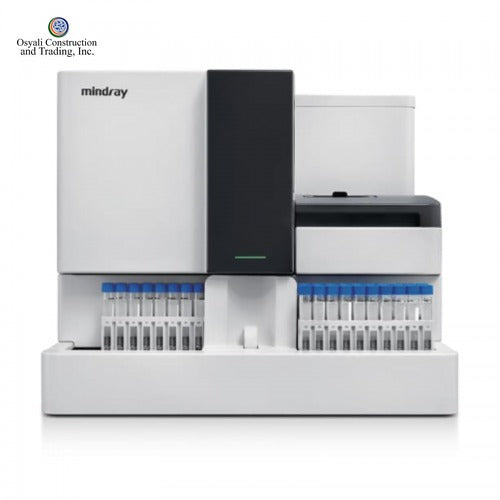

The Mindray EU-5300 Pro is a fully automated urine analyzer that combines urine dry chemistry and urine sediment (formed-element) analysis in a single, walk-away benchtop system. It is built for hospital and clinical laboratories, diagnostic centers, and reference labs in the Philippines that need to consolidate routine urinalysis onto one compact platform and report chemistry, sediment, and red-blood-cell phase results together.
Using dry-chemistry test strips together with digital flow-cell imaging, the EU-5300 Pro performs physical, chemical, and sediment examinations from a single sample aspiration. An onboard camera captures full-view color images of each sample, and Mindray's identification algorithm classifies the formed elements from those images, supporting laboratory review and verification.
Key Features
- Hybrid chemistry + sediment in one system — integrates urine dry chemistry and formed-element (sediment) analysis on a single analyzer, part of Mindray's EU-5300 Pro / EU-5600 Pro automated urinalysis line.
- Single-aspiration workflow — one sample draw is used for both physicochemical and sediment analysis.
- Throughput — up to approximately 160 tests/hour in dry-chemistry mode and approximately 70 tests/hour in hybrid (chemistry + sediment) mode.
- Continuous loading — walk-away operation with continuous loading of up to 50 samples, plus independent STAT positions for emergency samples.
- Comprehensive reporting — 11 core dry-chemistry parameters (up to 14 with calculated ratios) plus up to 31 reportable formed-element (sediment) parameters.
- Digital imaging — 2K full-color imaging, capturing up to 60 whole-view images per sample to support microscopic-style review of sediment.
- RBC phase / morphology parameters — standard RBC phase parameters (e.g., normocytic, microcyte, macrocyte, crenocyte, acanthocyte, and related morphology classes) to help rapidly narrow down the source of hematuria.
- Low sample volume — operates from a small urine sample (approximately 1.25 mL in hybrid mode).
- Automated focusing — performs focusing automatically, without manual operation or focus reagents.
- LabXpert data management — displays dry-chemistry, formed-element, and RBC-phase results together on a single screen to streamline result validation, with bi-directional LIS connectivity.
- Closed-tube sampling — supports closed-tube urine samples with built-in barcode reading to help reduce operator exposure.
What's Included
- EU-5300 Pro urine chemistry and sediment analyzer unit.
- LabXpert data management software for result review and reporting.
- Starter consumables and accessories as supplied by Mindray; dedicated dry-chemistry test strips and reagents are ordered separately.
Dimensions

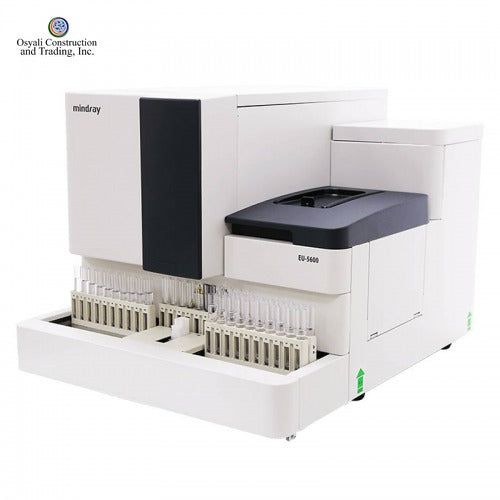

Not published for this exact configuration by Osyali/Medisense at this time. Mindray's EU-5000 series shares a common chassis, and the closest confirmed reference point — the same-generation EU-5600 Pro (identical datasheet series, released alongside the EU-5300 Pro) — lists W×D×H 600mm × 770mm × 530mm and weight ≤71.5 kg; treat as indicative only until confirmed on the EU-5300 Pro's own datasheet. Please contact Medisense to confirm exact footprint and weight before planning installation space.
Installation & Service
Medisense (Osyali Construction & Trading, Inc.), an authorized Philippine distributor, provides delivery, installation, and commissioning, along with operator training. Engineering services include preventive maintenance, calibration, repair, and genuine spare parts. For pricing in Philippine Peso (PHP), reagent and consumable supply, and warranty details, please contact Medisense.
Specifications are based on manufacturer and distributor materials and may be updated by Mindray without notice. Final configuration and reportable parameters may vary by market and regulatory registration.
