Mindray BS-600M closed system (with 5 open/user defined) with Arm and Monitor

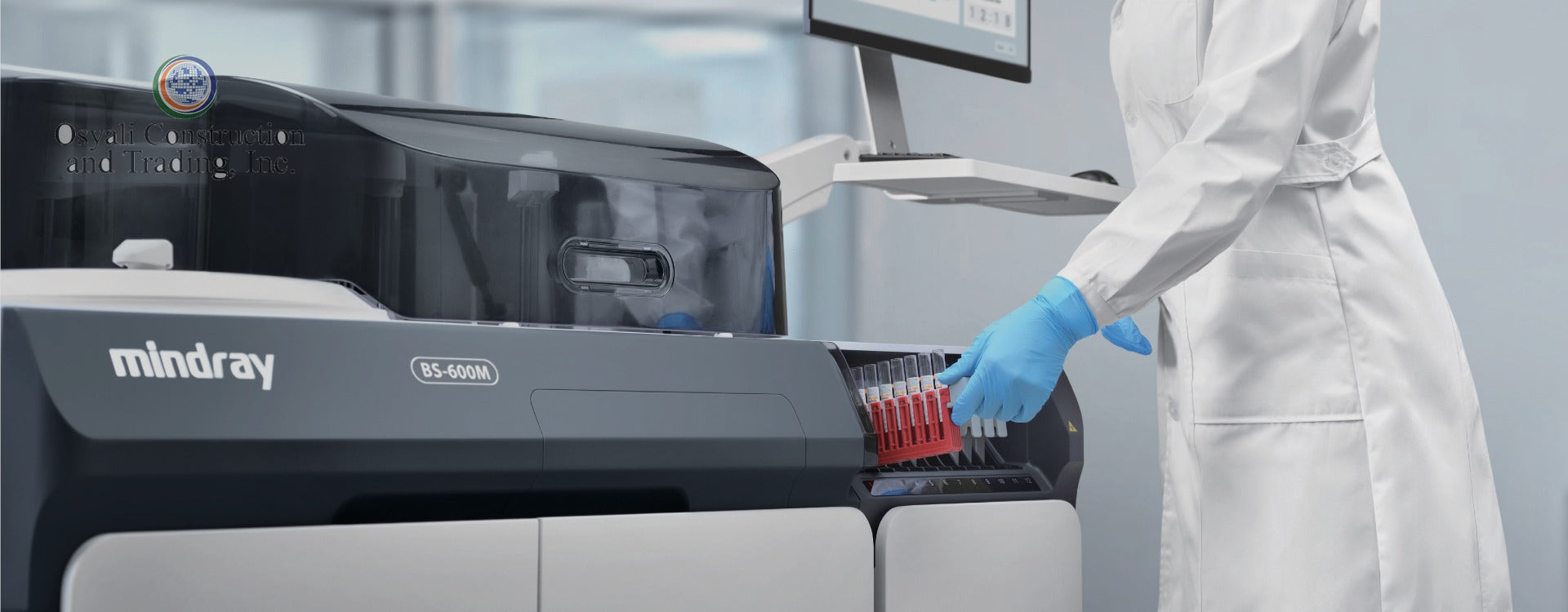

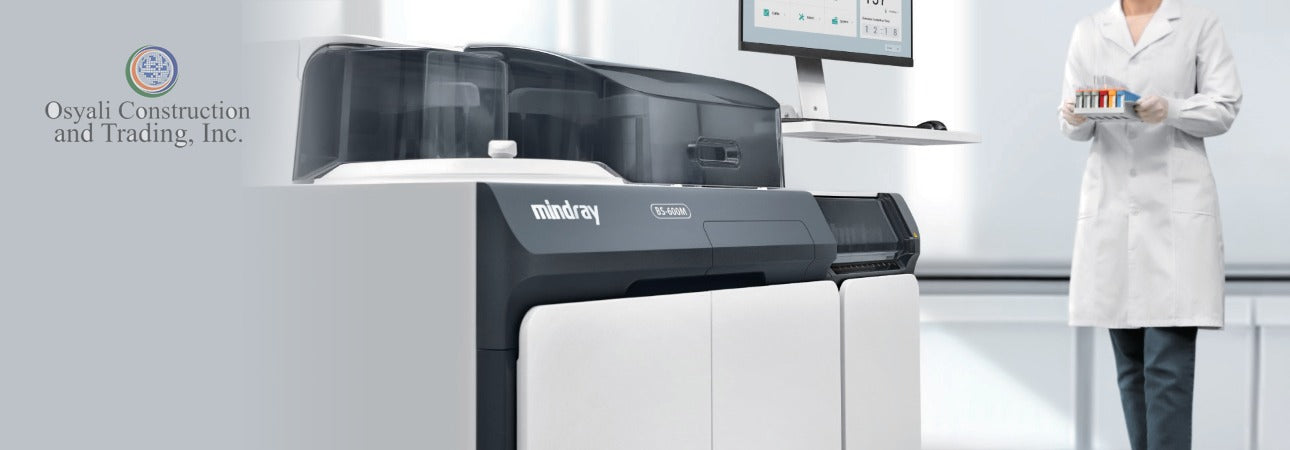

The Mindray BS-600M is a fully automated, floor-standing clinical chemistry analyzer built for medium-volume laboratories such as hospital labs, diagnostic centers, and reference laboratories in the Philippines. This configuration is supplied as a closed system with five (5) open / user-defined channels, meaning it runs Mindray's preset closed-channel assay parameters while still allowing the laboratory to program up to five of its own (open) tests. It ships complete with the operating arm and monitor console for on-board control and result review.

The BS-600M processes photometric chemistries and, with the integrated Ion-Selective Electrode (ISE) module, reports Na+, K+, and Cl- electrolytes from a single blood tube. It is designed for continuous rack-based sample loading with STAT (emergency) priority for higher walk-away time and steady daily throughput.

Key features and specifications

• Throughput: 600 photometric tests/hour, up to 800 tests/hour with ISE; ISE module up to 300 tests/hour.
• Positions: 124 reaction positions, 80 reagent positions, and 120 sample positions with continuous rack loading.
• Optical system: 16 wavelengths from 340 to 850 nm; halogen tungsten-filament lamp (12 V / 20 W), approx. 2,000-hour lamp life.
• Sample volume: 1.5-45 uL in 0.1 uL steps. Reagent volume: 10-200 uL in 0.5 uL steps. Reaction mixture: 70-300 uL.
• Reaction temperature: 37 degrees C +/- 0.1 degrees C, dry-bath heating.
• On-board reagent refrigeration: reagent compartment maintained at 2-8 degrees C, 24-hour cooling.
• ISE electrodes: reports Na+, K+, Cl- with automatic calibration; long electrode service life.
• HbA1c capability: on-board hemolysis from whole blood (no manual pretreatment), enzymatic method, NGSP-certified and IFCC-traceable.
• Water consumption: approx. 42 L/h continuous; 2 L/h short-term maximum.
• Open-channel flexibility: 5 user-defined channels alongside Mindray's closed-channel assays.

What is included

• Mindray BS-600M analyzer (closed system with 5 open / user-defined channels).
• Integrated operating arm and monitor console.
• Integrated ISE module for Na+, K+, Cl-.

Installation and service

Medisense (Osyali Construction & Trading, Inc.) is an authorized Philippine distributor of Mindray laboratory systems. Supply includes site assessment, delivery, professional installation and commissioning, operator orientation, and after-sales engineering support covering preventive maintenance, calibration, repair, and genuine spare parts. Pricing is quoted in Philippine Pesos (PHP). Contact Medisense for a configuration quotation, reagent options, and a service plan tailored to your laboratory.

Dimensions

Approx. 1380 x 1200 x 860 mm (W x D x H); footprint approx. 1.2 m2. Weight not published by the manufacturer for the BS-600M.

Supplied by Osyali Construction & Trading, Inc., an authorized Mindray distributor in the Philippines. Installation, training, and after-sales service available.
