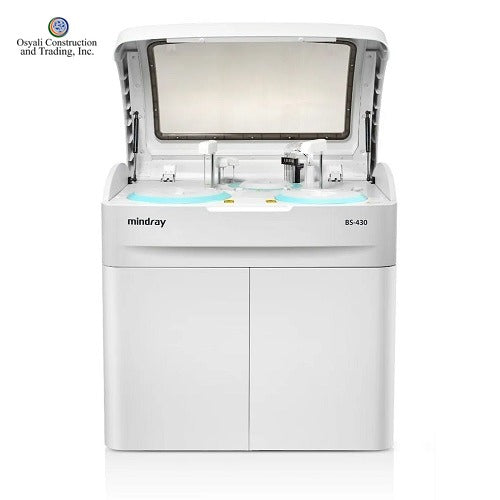

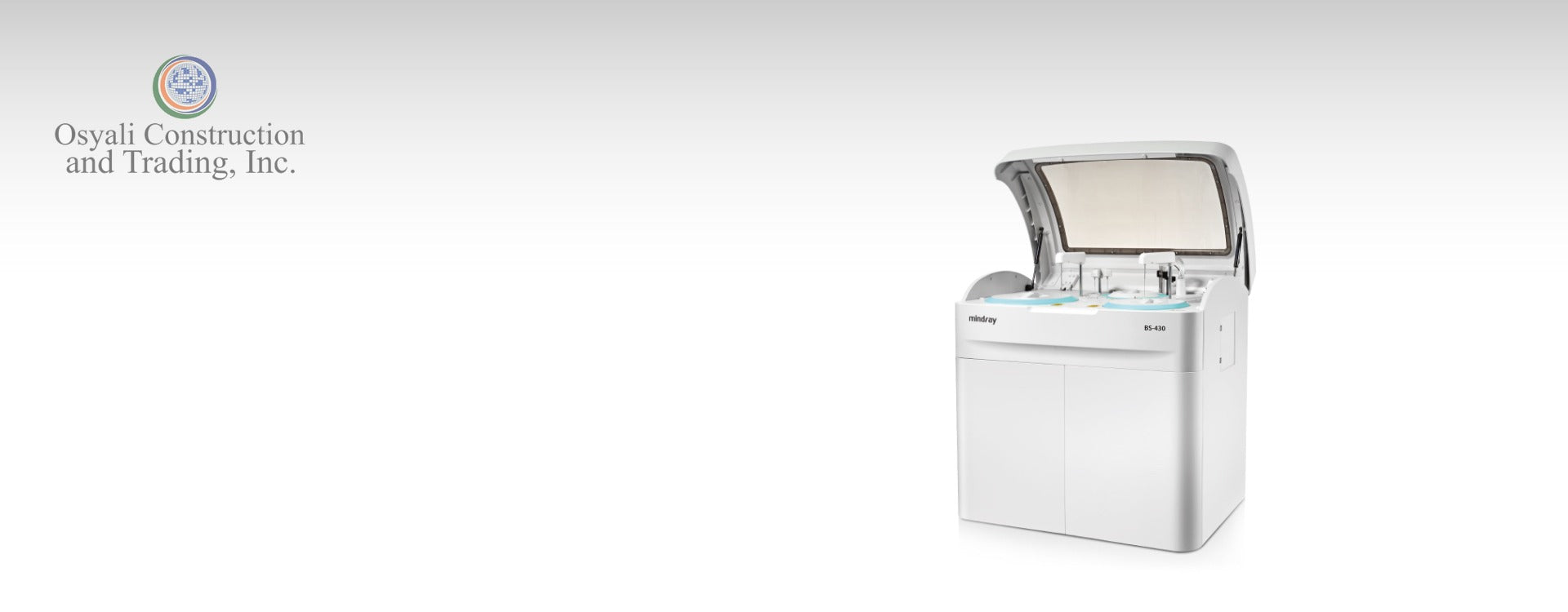

Mindray BS-430 Fully Automated Chemistry Analyzer (Closed system)

The Mindray BS-430 is a floor-standing, fully automated clinical chemistry analyzer (closed/standalone configuration) built for small to mid-workload laboratories that need a dependable, cost-efficient one-stop chemistry solution. It is well suited to Philippine hospital laboratories, clinics, diagnostic centers, and reference labs running an estimated 200–800 chemistry tests per day. As a closed system, the BS-430 is designed to run with Mindray's matched instrument, reagents, and calibrators (the manufacturer's "AAA" approach) for traceable, reproducible results.

The analyzer performs a constant 420 photometric tests per hour, expandable to 626 tests per hour when the optional Ion Selective Electrode (ISE) module is added for electrolytes (Na+/K+/Cl−). It handles routine and special chemistries including liver, kidney, lipid, glucose, and protein panels, and supports onboard HbA1c testing through Mindray's smart-sampling technology, which prepares the hemolysate automatically from whole-blood samples to shorten turnaround time and reduce manual biohazard handling.

Key features and specifications

• Type: Fully automated, discrete, random-access clinical chemistry analyzer with STAT sample priority (closed/standalone system).
• Throughput: 420 tests/hour constant; up to 626 tests/hour with the optional ISE module. On-board capacity of 90 photometric tests plus 3 ISEs plus 3 serum indices.
• Recommended workload: small to mid-volume laboratories, roughly 200–800 chemistry tests per day.
• Sample handling: 102 sample positions; sample volume from 1.5 µL to 45 µL in 0.1 µL steps; liquid-level detection, collision protection, and automatic dilution to conserve patient specimen.
• Reagent handling: 92 reagent positions with 24-hour refrigeration (2–8°C); reagent volume 10 µL to 200 µL in 0.5 µL steps.
• Reaction system: 93 reusable cuvettes with 8-step auto-washing; reaction volume 100–300 µL; reaction temperature held at 37 ± 0.1°C by a maintenance-free direct solid-heating (dry-bath) system that requires no bath-water exchange.
• Optical system: enhanced grating optical system supporting 12 wavelengths (340–800 nm) for stable, reliable absorbance measurement.
• Light source: 12V 20W tungsten halogen lamp with a service life of up to 2,000 hours.
• Sample carry-over: low carry-over washing system, rated below 0.05%, to protect result accuracy between samples.
• ISE module: optional electrolyte module (Na+, K+, Cl−).
• HbA1c smart sampling: onboard automatic hemolysate preparation from whole blood.
• Software: Windows 10 operation unit; auto-rerun, intelligent carryover management, and enzyme linearity extension to help reduce false negatives; step-by-step maintenance guide.
• Power supply: 220–240V, 50/60Hz (or 110–130V, 60Hz), ≤1000VA; water consumption ≤20 L/H.
• Reagent compatibility: uses Mindray's uniform reagent package shared across the BS-series chemistry line (e.g., BS-120, BS-200, BS-230, BS-240, BS-360E, BS-430).

What's included & service

• BS-430 analyzer main unit with integrated reagent/sample handling and operating software.
• Standard accessory and consumable starter set as supplied by Mindray; optional ISE module configured on request.
• Genuine Mindray reagents and calibrators are quoted separately to match the closed-system configuration.
• Installation & commissioning by Medisense (Osyali Construction & Trading, Inc.) as an authorized Philippine distributor.
• Engineering services: operator training, preventive maintenance scheduling, calibration, repair, and spare-parts support, with local after-sales coverage nationwide.

Pricing is available in Philippine Peso (PHP) on request. Contact Medisense for a formal quotation, configuration (with or without ISE), reagent packages, demo, and delivery and installation scheduling.

Dimensions

1,050 mm (W) x 720 mm (D) x 1,150 mm (H); weight up to 200 kg.

Supplied by Osyali Construction & Trading, Inc., an authorized Mindray distributor in the Philippines. Installation, training, and after-sales service available.
