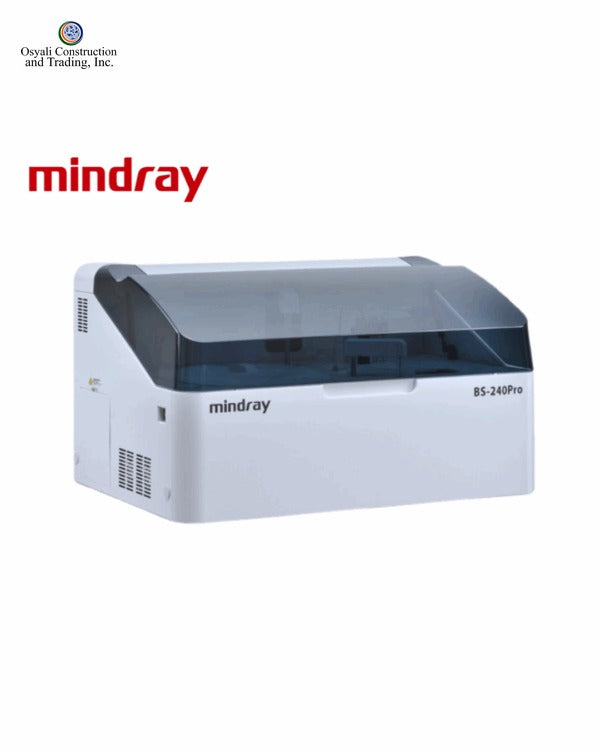

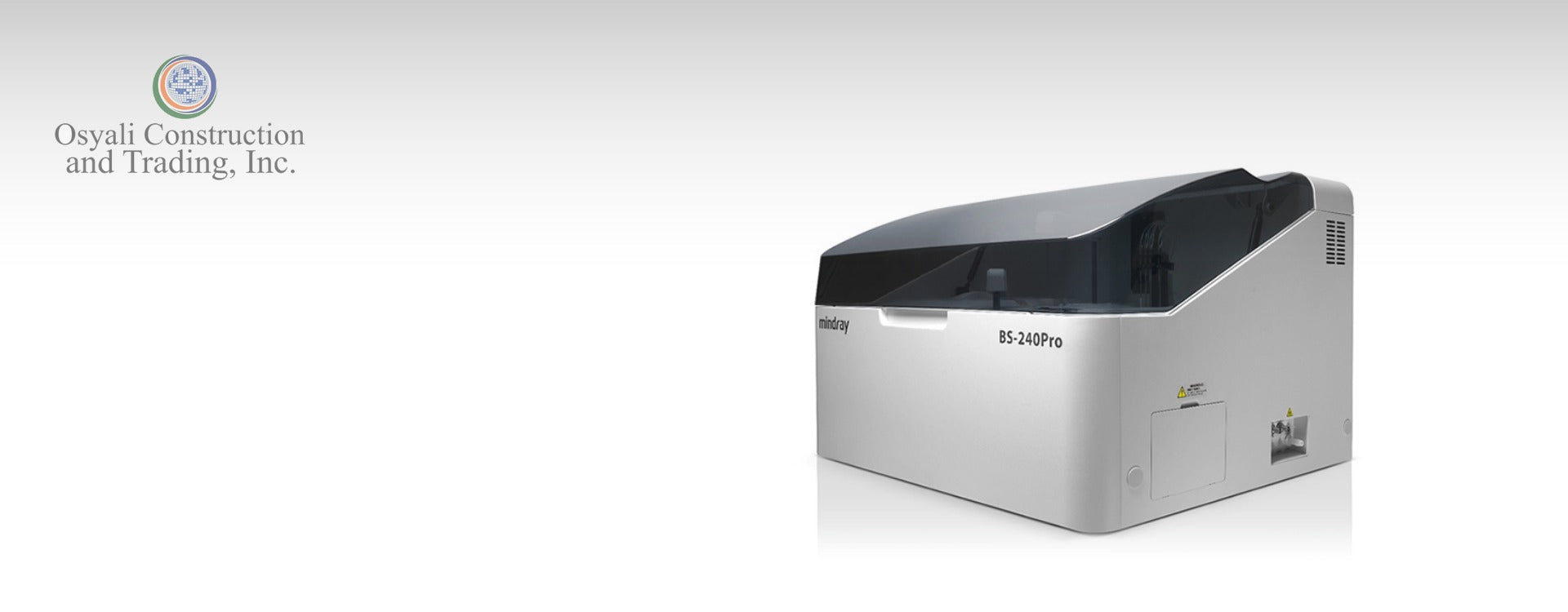

Mindray BS-240Pro Fully Automated Chemistry Analyzer (Close system)

The Mindray BS-240Pro is a fully automated, benchtop clinical chemistry analyzer (closed system) designed for in vitro quantitative determination of clinical chemistry parameters in serum, plasma, urine, and cerebrospinal fluid. It is intended for use by trained laboratory personnel in hospital laboratories, diagnostic centers, clinics, and reference laboratories across the Philippines that need reliable random-access chemistry testing in a compact footprint.

Built around a grating photometer with a halogen-tungsten light source, the BS-240Pro performs absorbance photometry and turbidimetric measurements, with an optional Ion Selective Electrode (ISE) module for electrolytes (K+, Na+, Cl-). It delivers a constant throughput of 240 photometric tests per hour, expandable to up to 400 tests per hour when the ISE module is fitted. As a closed reagent system, it is configured to run with Mindray reagents for consistent, traceable performance.

Key Features and Specifications

• Type: Fully automated benchtop clinical chemistry analyzer (closed system) for in vitro diagnostic use
• Throughput: 240 photometric tests/hour; up to 400 tests/hour with the optional ISE module
• Measuring principles: Absorbance photometry and turbidimetry; optional ISE for K+, Na+, Cl-
• Optical system: Grating photometer with halogen-tungsten lamp
• Sample positions: 40 (base configuration)
• Reagent positions: 80, in a refrigerated compartment
• Refrigeration: Onboard reagent/sample compartment maintained at 2-12 deg C
• Sample volume: 2-45 uL
• Reagent volume: 10-250 uL
• Reaction volume: 100-360 uL (minimum reaction volume 100 uL)
• Reaction temperature: 37 deg C +/- 0.1 deg C (air bath)
• Cuvettes: 40 reusable reaction cuvettes
• Carryover: < 0.05%

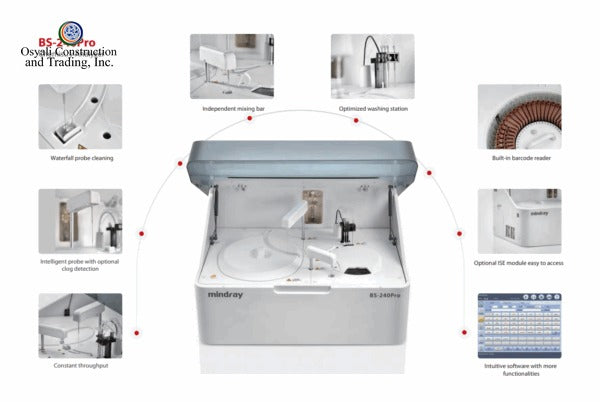

• Probe management: Intelligent probe with optional clog detection; automatic interior and exterior probe washing
• Additional capabilities: Onboard hemolysis detection and HbA1c smart-sampling function; optional barcode reader and automatic sample dilution
• Power supply: 220-240 V (compatible with Philippine mains)

What's Included, Installation and Service

• Mindray BS-240Pro analyzer unit with 40 reusable reaction cuvettes
• Optional modules available on request: ISE module (K+, Na+, Cl-), barcode reader, and automatic sample dilution
• Operating manual and standard accessories

As an authorized Philippine distributor, Medisense (Osyali Construction & Trading, Inc.) provides on-site delivery, installation, and commissioning, plus operator orientation for your laboratory staff. Engineering support covers preventive maintenance, calibration, repair, and spare parts. The unit carries a 6-month warranty against factory defects (excluding force majeure and operator error). For pricing in Philippine Peso (PHP), unit availability, and a configuration quotation, please contact Medisense.

Dimensions

86 x 55 x 66 cm (Width x Depth x Height); weight 115 kg
