Mindray BC-720 (without autoloader) capable of RETICS
- One bench-top analyzer delivers CBC, 5-part WBC differential, reticulocyte (RET), and ESR together, removing the need for a separate ESR instrument in the lab.
- Combined CBC and ESR results in about 1.5 minutes from roughly 160 uL of whole blood, keeping turnaround fast for small-to-medium daily volumes.
- SF Cube 3D scattergrams (bi-angular laser scatter + fluorescence) plus a dedicated RET channel and PLT-H optical platelet count on every CBC/DIFF test support clearer cell differentiation and flagging.
- Compact open-vial bench footprint (about 500 x 325 x 450 mm, under 35 kg) with a floating touchscreen and USB/LAN connectivity fits space-constrained clinics and labs while staying LIS-ready.
- Backed locally by Osyali/Medisense as an authorized Mindray distributor: installation, operator training, Mindray-aligned reagents/consumables, and after-sales engineering service in the Philippines.
Request a Quote
Official pricing · warranty · nationwide installation
You get a partner, not just a machine
More Mindray equipment
Specifications & details+

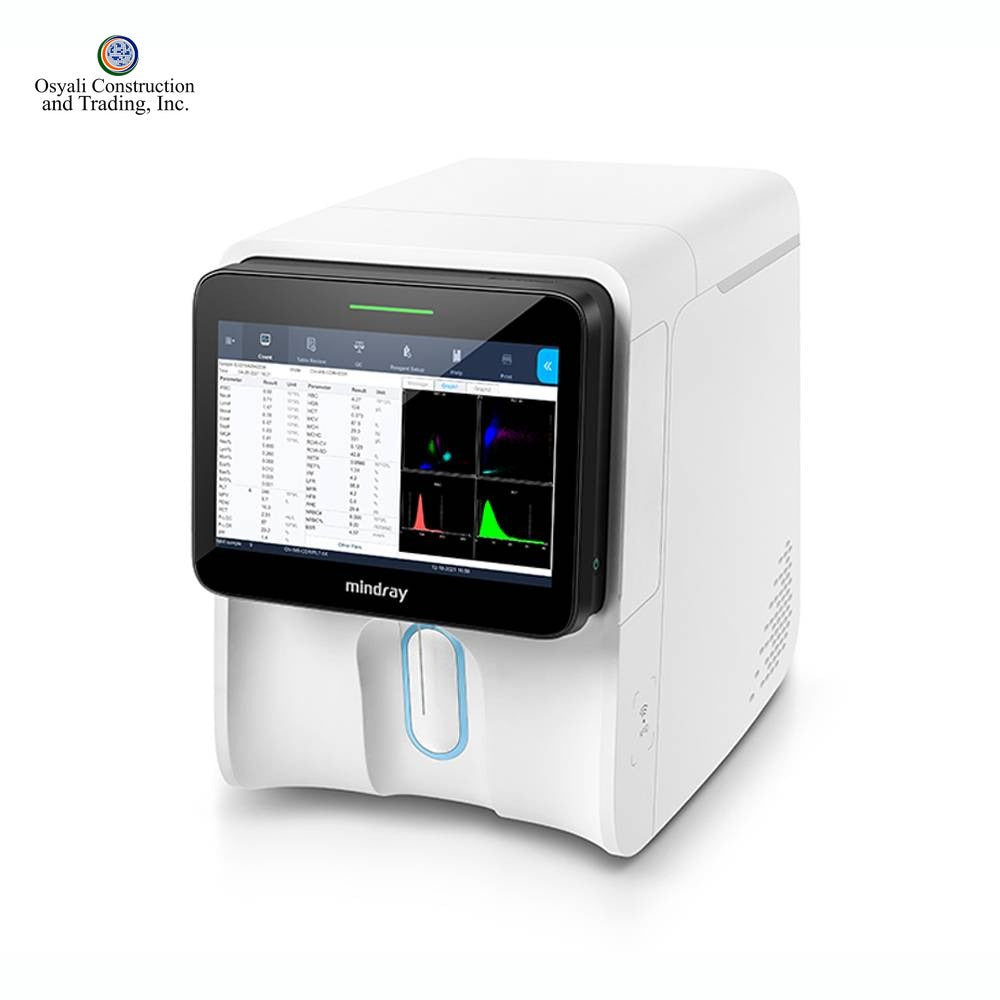

The Mindray BC-720 is a compact 5-part differential automated hematology analyzer with integrated ESR (erythrocyte sedimentation rate) measurement, configured here as the open-vial model (without autoloader) and enabled for reticulocyte (RET) analysis. It is designed for small- to medium-volume clinical laboratories, hospitals, diagnostic centers, and clinics in the Philippines that want complete blood count, white-cell differential, reticulocyte, and ESR results from a single bench-top platform without operating a separate ESR instrument.
The BC-720 belongs to Mindray's BC-700 Series, the company's compact all-in-one CBC and ESR platform for small-to-mid-sized labs. It uses SF Cube three-dimensional cell analysis, combining bi-angular laser light scatter with fluorescence to generate 3D scattergrams that help laboratory staff identify and differentiate cell populations, including flagging of abnormal clusters. Sample aspiration is via open vial (manual tube presentation); the autoloader-equipped models in the same series are the BC-760 and BC-780.
Key features and specifications
- 5-part WBC differential analyzer reporting CBC, DIFF, reticulocyte (RET), and ESR parameters; operates in a combined CBC + DIFF + RET + ESR mode.
- SF Cube technology: 3D analysis using bi-angular laser scatter signals plus fluorescence staining for cell classification and counting.
- Multiple detection methods: sheath-flow impedance, laser light scattering, and flow cytometry with fluorescence staining.
- Dedicated RET channel reporting reticulocyte-related parameters (including RBC, RET, IPF, and PLT-O) alongside the standard CBC/DIFF channel.
- Optical platelet measurement (PLT-H, hybrid channel) provided in every CBC and DIFF test.
- Integrated ESR module measures red-cell aggregation photometrically at a controlled temperature; reported ESR repeatability of SD ≤ 1 mm/h and CV ≤ 5%, with carryover under 1%.
- Whole-blood sample volume of approximately 160 µL; combined CBC and ESR results in about 1.5 minutes per sample.
- Open-vial sampling (no autoloader on this configuration).
- Floating touchscreen interface with USB and LAN connectivity for LIS integration.
- Compact bench-top footprint: approximately 500 x 325 x 450 mm (W x D x H), weight under 35 kg.
What is included, installation and service
Supplied as the BC-720 analyzer unit in the open-vial (without autoloader) configuration with reticulocyte (RET) capability, touchscreen, and standard accessories. As an authorized Mindray distributor, Medisense (Osyali Construction & Trading, Inc.) provides delivery, installation, and operator orientation within the Philippines, along with Mindray-aligned reagents, controls, and consumables. Preventive maintenance, calibration, repair, and spare-parts support are available through Medisense engineering services. For configuration, reagent, pricing in PHP, and after-sales support, contact Medisense.
Dimensions
Approximately 500 x 325 x 450 mm (W x D x H); weight under 35 kg
Supplied by Osyali Construction & Trading, Inc., an authorized Mindray distributor in the Philippines. Installation, training, and after-sales service available.
