Mindray BC-700 (without autoloader) without RETICS
Official distributor · Mindray
Mindray BC-700 (without autoloader) without RETICS
- Reports CBC + 5-part DIFF + ESR from a single sample in about 1.5 minutes, eliminating the need for a separate ESR analyzer
- SF Cube 3D analysis (laser scatter + fluorescence) shared with Mindray's higher-volume BC-6000 Series delivers consistent, cross-checkable results as a lab scales up
- Optical PLT-H platelet parameter in every test resists common interferences (fragments, large platelets) that cause false counts on standard impedance-only analyzers
- Compact open-vial benchtop footprint (500 x 325 x 450 mm, under 35 kg) suits small-to-mid space budgets without sacrificing a 109-parameter whole-blood menu
- LAN with bidirectional LIS/HL7 support and 150,000-result onboard storage make it ready to plug into an existing hospital or clinic information system
Request a Quote
Official pricing · warranty · nationwide installation
You get a partner, not just a machine
More Mindray equipment
Specifications & details+

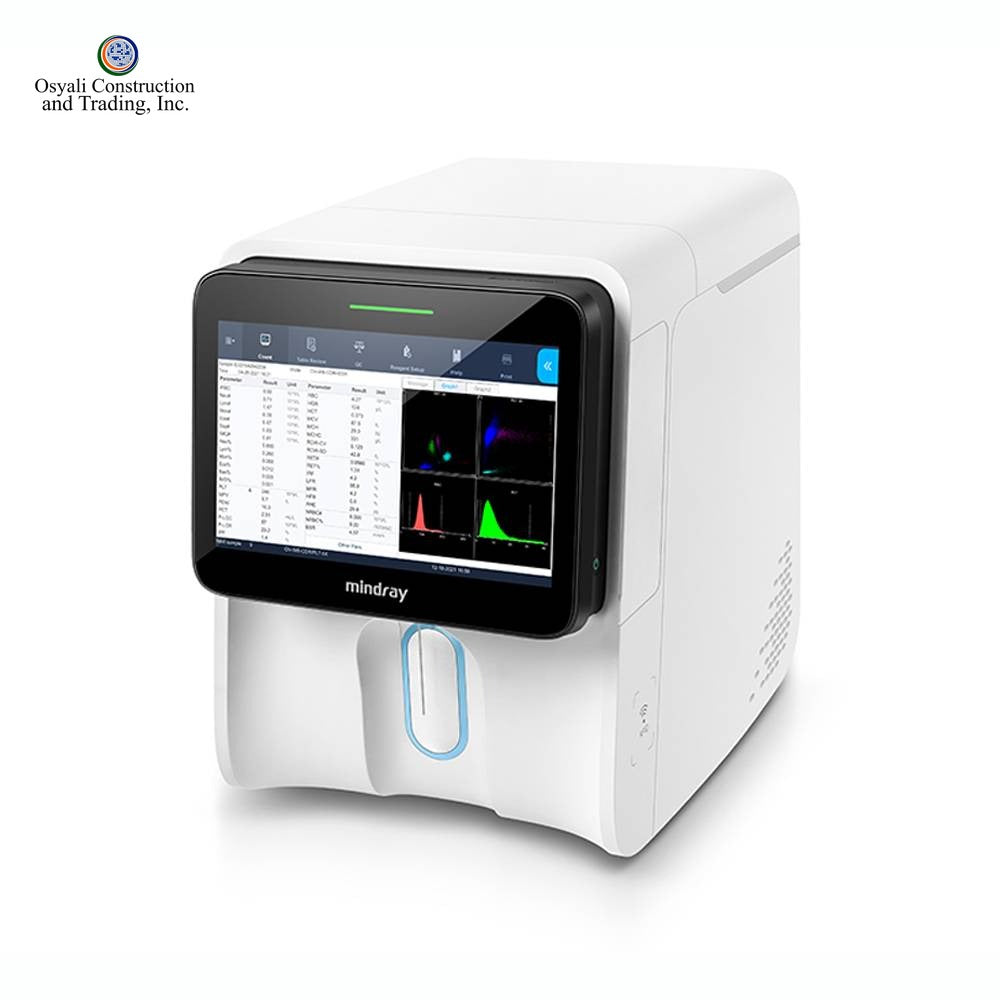

The Mindray BC-700 (open-vial configuration, without autoloader and without the reticulocyte/RET channel) is a compact 5-part differential automated hematology analyzer designed for small-to-mid-sized clinical laboratories, hospital labs, clinics, and diagnostic centers across the Philippines. It performs a Complete Blood Count (CBC) with a 5-part white blood cell differential and integrates Erythrocyte Sedimentation Rate (ESR) testing in a single benchtop unit, reporting CBC + DIFF + ESR results from one sample in approximately 1.5 minutes.
This open-vial model is operated by manual tube presentation (no continuous autoloader). It is built on Mindray's SF Cube 3D analysis platform, which is shared with the higher-volume BC-6000 Series, and uses bi-angular laser scatter signals combined with fluorescence flow cytometry to characterize and separate cell populations on 3D scattergrams.
Key features and specifications
- Test menu: CBC, 5-part WBC differential, and integrated Easy-W ESR in one workflow.
- Core technology: SF Cube 3D analysis using bi-angular laser scatter and fluorescence flow cytometry, plus focusing flow-DC impedance (RBC/PLT) and colorimetric (HGB) measurement.
- Optical platelet count: Hybrid-channel PLT-H parameter combines impedance and optical detection to provide a platelet result resistant to common interferences in every CBC and DIFF test.
- Parameters: Up to 109 measuring parameters for whole blood (41 reportable) and 18 for body fluids (7 reportable); dedicated body-fluid mode.
- Throughput: Approximately 80 samples/hour for CBC, and 40 samples/hour when running CBC + ESR together.
- Sample volume: Approximately 23 µL whole blood for CBC (predilute mode approximately 20 µL); whole-blood, predilute, capillary, and body-fluid sample types supported.
- Configuration: Open-vial (manual sampling, no autoloader); this unit is supplied without the reticulocyte (RET) channel, PLT-O, and IPF parameters.
- Display: Floating touchscreen operator interface, switchable between analysis modes with a single touch.
- Data & connectivity: Onboard storage of up to approximately 150,000 sample results (numeric and graphical); 1 LAN port for bidirectional LIS connectivity and 4 USB ports.
- Power: 100-240V AC, 50/60Hz, 300VA power input.
- Operating environment: 10-35 degrees C, 30-85% relative humidity.
What is included, installation and service
As an authorized Mindray distributor, Medisense (Osyali Construction & Trading, Inc.) supplies the BC-700 analyzer unit as configured (open-vial, without RET channel) with its standard manufacturer accessories and operator documentation. Compatible Mindray reagents, controls, and calibrators for the BC-700 Series are available separately. We provide on-site installation and commissioning, operator training, and after-sales engineering support including preventive maintenance, calibration, and parts. For current pricing in Philippine Pesos (PHP), reagent packages, configuration confirmation, and a formal quotation, please contact Medisense.
Dimensions
500 (D) x 325 (W) x 450 (H) mm; weight 35 kg or less
Supplied by Osyali Construction & Trading, Inc., an authorized Mindray distributor in the Philippines. Installation, training, and after-sales service available.
