Mindray TDR-X030 Automatic Blood Culture Analyzer
Official distributor · Mindray
Mindray TDR-X030 Automatic Blood Culture Analyzer
- Automates continuous monitoring of up to 20 blood culture bottles, freeing techs from manual daily checks
- High sensitivity (<=10 CFU/ml) with irreversible colorimetric CO2 detection for reliable positive/negative flagging
- Tolerant of delayed vial loading (DVE efficacy <=48 hours at room temperature), reducing risk from batch/off-hours specimen intake
- One-year on-board data storage with exportable growth curves and USB/RS-232C connectivity for LIS integration and recordkeeping
- Compact benchtop footprint suited to lower-volume hospital and clinical microbiology labs, backed by local Osyali/Medisense installation and service
Request a Quote
Official pricing · warranty · nationwide installation
You get a partner, not just a machine
More Mindray equipment
Specifications & details+

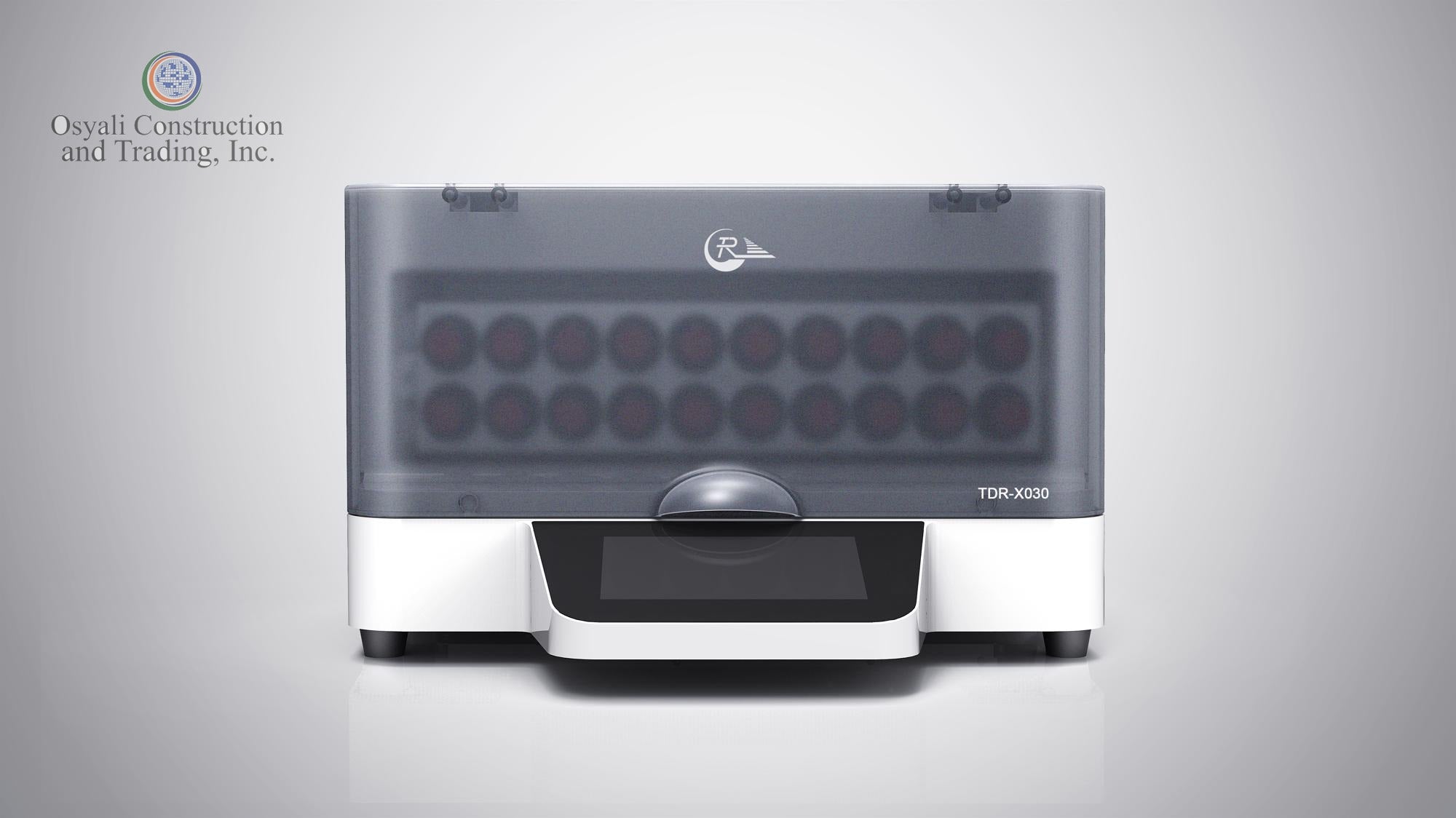

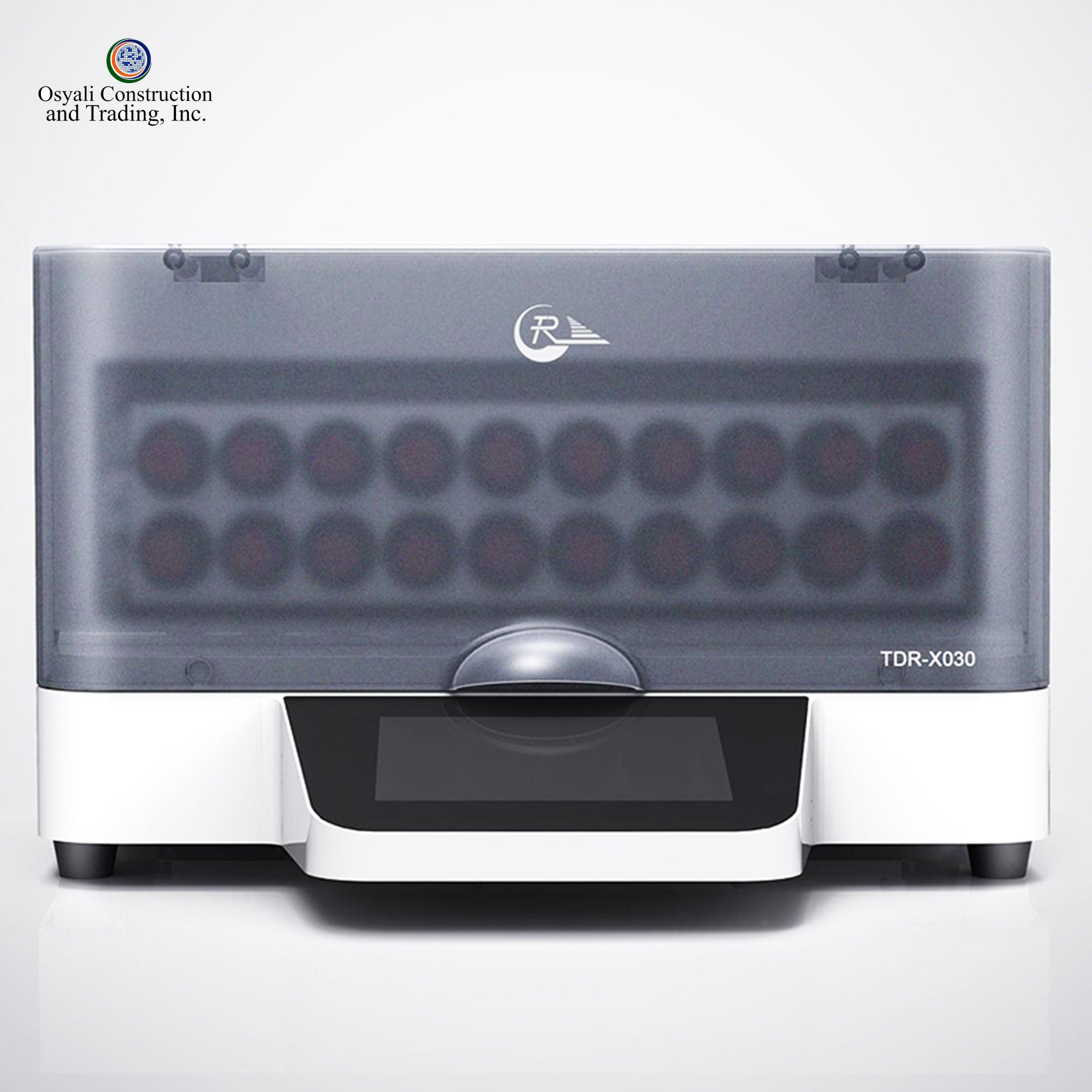

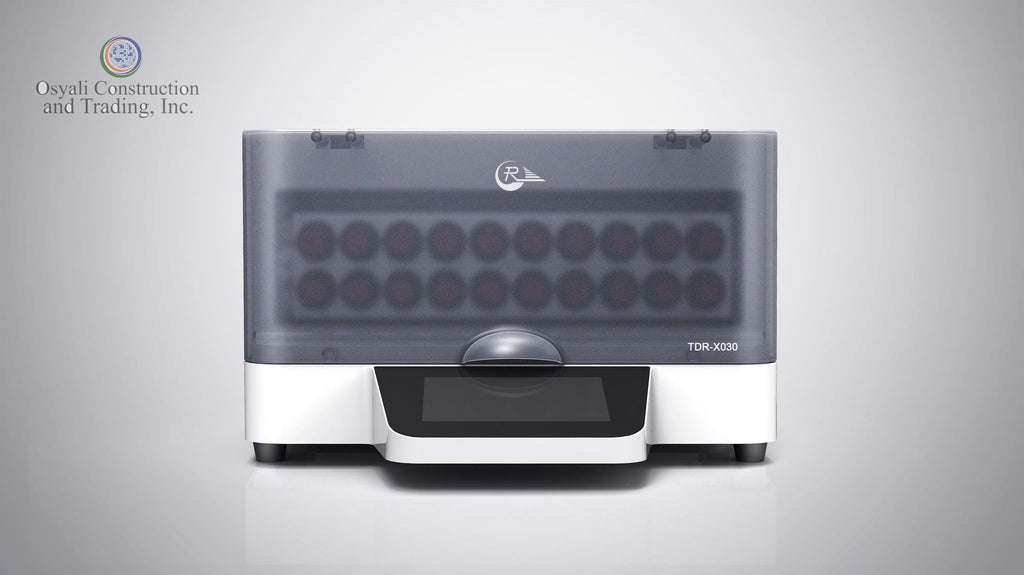

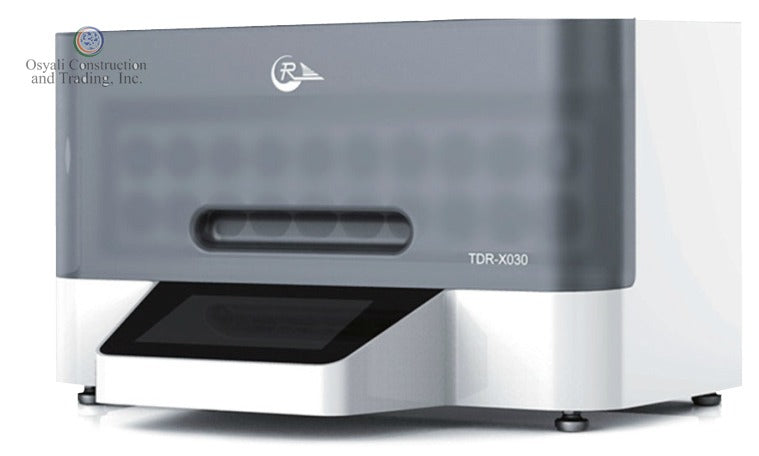

The Mindray TDR-X030 Automatic Blood Culture System is a compact, benchtop automated blood culture instrument designed for the continuous monitoring of microbial growth in blood and other sterile body fluids. It is intended for hospital and clinical microbiology laboratories with lower daily sample volumes that need a reliable, fully automated alternative to manual blood-culture monitoring. As an authorized Mindray distributor in the Philippines, Medisense supplies the TDR-X030 with local installation and after-sales support.
The system loads up to 20 culture bottles at a time and continuously incubates, agitates, and monitors each bottle for signs of microbial growth. Detection is based on an irreversible colorimetric principle: a sensor at the base of each bottle responds to CO₂ produced by growing microorganisms, and the instrument uses built-in calculation algorithms (sustained acceleration, rate, and initial threshold analysis) to flag positive or negative bottles automatically. Temperature is maintained by a solid heating bath with a cooling system to keep incubation conditions stable. Operation is managed through a 7-inch touch screen, with results and bacterial growth curves available for review and export, and USB / RS-232C ports for data connectivity.
Key Features and Specifications
- Sample capacity: 20 bottle positions in a single benchtop unit
- Detection principle: Colorimetry (irreversible colorimetric CO₂ sensing)
- Detection sensitivity: ≤10 CFU/ml
- Delayed vial entry (DVE) efficacy: ≤48 hours at room temperature
- Display: 7-inch touch screen
- Supported culture bottles: TDR Aerobic, TDR Anaerobic, TDR Peds, and TDR Resin Aerobic / Resin Anaerobic / Resin Peds — resin formulations help reduce interference from antibiotics in the sample
- Applicable specimens: Blood, cerebrospinal fluid (CSF), peritoneal fluid, pleural fluid, bone marrow, and other sterile body fluids
- Monitoring: Continuous, automated surveillance with automatic positive/negative reporting and built-in agitation/incubation
- Temperature control: Solid heating bath with cooling system
- Data management: One-year on-board data storage; statistical analysis and exportable growth curves; USB and RS-232C interfaces
- Power supply: AC 100–240V, 50/60 Hz
- Operating environment: Working temperature 0–40°C; relative humidity 30–85% (non-condensing)
What's Included, Installation & Service
Each TDR-X030 is supplied as a complete benchtop analyzer with its operating software and standard accessories. Mindray TDR culture bottles and consumables are ordered separately to match each laboratory's testing menu. Medisense provides on-site installation, commissioning, and operator orientation, plus engineering services including preventive maintenance, calibration, repair, and genuine spare parts. For pricing in Philippine Pesos (PHP), bottle/consumable options, and a configuration suited to your laboratory's volume, contact the Medisense team.
Dimensions
530 mm (W) x 360 mm (D) x 260 mm (H); weight approximately 18 kg
Supplied by Osyali Construction & Trading, Inc., an authorized Mindray distributor in the Philippines. Installation, training, and after-sales service available.
